SOL-1064

DPSS Laser, ns Pulsed, 1064 nm, up to 40 W, up to 200 kHz, 6 ns to 80 ns

Key Features:

  • Up to 40W @ 1064nm
  • Single Shot – 100kHz repetition rate
  • 5ns to 60ns pulse width
  • > 20 kW peak power
  • Compact Air-cooled Single Unit
  • Electronic pulse energy modulation
  • Sealed and rugged
  • Monolithic design
  • 24 V dc
  • RS232 monitor port



There are many configurations and options available. If you do not see exactly what you need below, please contact us!

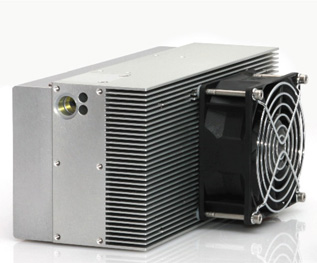

SOL laser series is a compact, air-cooled DPSS nanosecond laser that is capable of up to 40W and 2mJ at 1064nm, is offered in a rugged, lightweight single unit design that allows for easy and reliable integration in micro-machining and marking applications. The SOL series design, available at both 1064nm, 532nm, and 355nm, is based on a permanently aligned monolithic optical resonator integrated with 24 Vdc powered drive electronics with integrated/smart forced air-cooling

Due to the compact monolithic design, optical fibers and other delicate cable connections are not necessary for system integration. The new electronic interface allows the user to integrate the laser according to the most recent safety standards for industrial machines (EN 13849) and to monitor the laser status through an RS232 port.  A new version of the Control Box and a new proprietary Software Interface are available for simplified remote control and monitoring.

The high peak power and the excellent beam quality of SOL lasers make them the ideal source for the most demanding industrial and scientific applications.  Compactness, insensitivity to environmental conditions and ease of handling guarantee superior operational flexibility and performance/cost ratio.

Options Available

  • Beam expanding and collimating optics
  • Fiber Coupling
  • Red aiming beam
  • Extended operating temperature range
  • Extended frequency range
  • Pulse width modulation
  • Circular Polarization
  • Monitoring Photodiode
  • Remote Control Box and Software Interface
  • AC-DC Power Supply
Type

Wavelength (nm)

Output power (W)

, , , ,

Pulse energy (uJ)

, , , ,

Pulse width

, , , ,

Rep rate

Q-switch type
