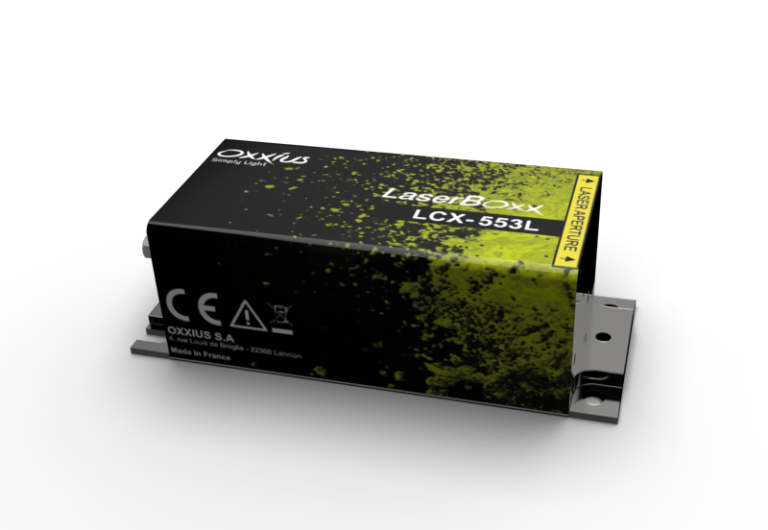

LCX-553

Laser Module, Low Noise, 553nm

Key Features:

  • Up to 200mW at 553nm
  • Low profile laser head (32 mm)
  • Tailored beam diameter capability (0.6 up to 1.4 mm)
  • Fast TTL and analog modulation



There are many configurations and options available. If you do not see exactly what you need below, please contact us!

POPULAR CONFIGURATIONS:


Part Number
Part Description
Datasheet
Price
Lead Time

LCX-553L-50-CSB-OE

Low Noise DPSS Laser Module, 553nm, 50mW, OEM



4-8 weeks

Get Quote
LCX-553L-50-CSB-PPA

Low Noise DPSS Laser Module, 553nm, 50mW, Plug & Play Adjustable Power



4-8 weeks

Get Quote
LCX-553L-50-CSB-PPF

Low Noise DPSS Laser Module, 553nm, 50mW, Plug & Play Fixed Power



4-8 weeks

Get Quote
LCX-553L-100-CSB-OE

Low Noise DPSS Laser Module, 553nm, 100mW, OEM



4-8 weeks

Get Quote
LCX-553L-100-CSB-PPA

Low Noise DPSS Laser Module, 553nm, 100mW, Plug & Play Adjustable Power



4-8 weeks

Get Quote
LCX-553L-100-CSB-PPF

Low Noise DPSS Laser Module, 553nm, 100mW, Plug & Play Fixed Power



4-8 weeks

Get Quote

The LCX-553 laser diode module is part of the LaserBoxx low noise series of CW DPSS laser and laser diode modules available at a variety of wavelengths from 375nm through 980nm.

The LBX lasers are a fully integrated laser diode solution that provides an extremely stable, <0.2% rms, TEM00 output beam with outstanding pointing stability, and fast modulation capabilities.

The LCX/LPX lasers are self-contained modules that utilize Oxxius’ proprietary alignment-free monolithic resonator. The elements in the cavity are assembled into a single ultra-low-loss optical subsystem using a proprietary crystal bonding technique.

The LaserBoxx series is designed with an industry-standard footprint and comes standard with a user-friendly graphical user interface featuring remote diagnostics via USB, RS232, or a direct I/O interface.

Available in either an OEM and plug and play configuration, the LaserBoxx series is a versatile platform and an excellent solution for both OEM and research-based applications.

Type

Wavelength (nm)

Output power (W)

, , ,

Mode

Output

, , ,
