MB-Combiner

Laser Combiner, Multimode/Single mode, up to 4 Wavelengths, 405-850nm, up to 150mW

Key Features:

  • 2 to 4 individually controllable laser diodes
  • Ultra-compact All-in-One design
  • USB powered
  • Perfect for handheld/portable devices
  • Thermally stabilized optics
  • Monolithic design for hands-free operation
  • Fiber coupling and beam shaping options
  • Automatic current control
  • QC3.0 compatible USB-C power input (in breakout box)
  • Plug-and-Play ready

There are many different package types, wavelengths, output powers, and options to choose from. Get help selecting the right configuration for you!

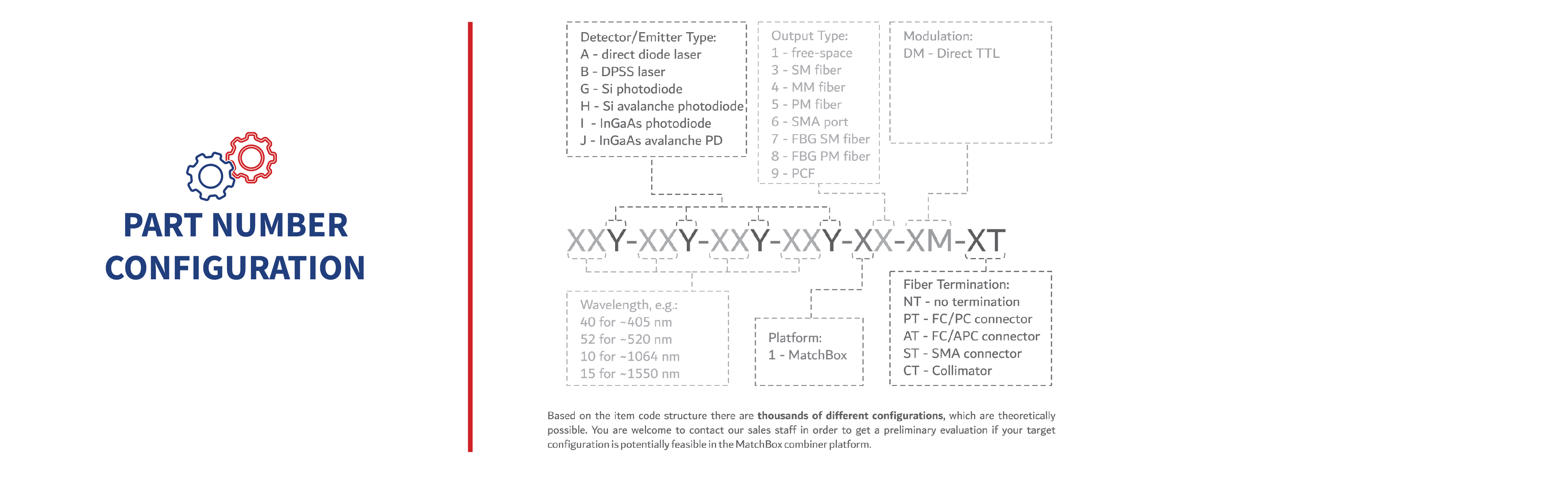

POPULAR CONFIGURATIONS:

Part Number
Part Description
Datasheet

R1Z4-Image-Combiner-MM-Fiber 40A-45A-48A-52A-14-DM-PT

Laser Combiner: 405nm, 450nm, 488nm, 520nm, Options included: Direct TTL, Remote PC control, MM Fiber, FC/PC Connector

Get Quote
a silver colored matchbox shaped & sized multi-wavelength laser beam combiner box 40A-45A-52A-64A-11-DM-CF

Laser Combiner: 405nm, 450nm, 520nm, 638nm, Options included: Direct TTL, Remote PC control, Clean-up filter, Free Space

Get Quote

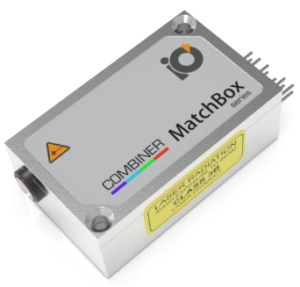

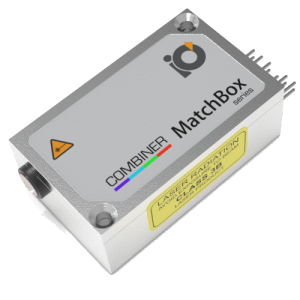

Integrated-Optics_MatchBox_Combiner-1 40A-45A-52A-64A-11-DM-NF

Laser Combiner: 405nm, 450nm, 520nm, 638nm, Options included: Direct TTL, Remote PC control, Free Space

Get Quote

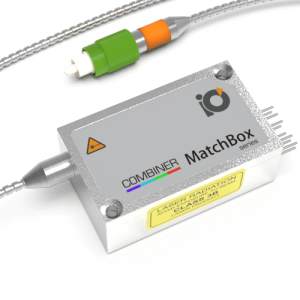

R1Z4-Image-Combiner-MM-Fiber 40A-45A-52A-64A-14-DM-PT

Laser Combiner: 405nm, 450nm, 520nm, 638nm, Options included: Direct TTL, Remote PC control, MM Fiber, FC/PC Connector

Get Quote
Integrated-Optics_MatchBox_Combiner-1 40A-48A-52A-64A-11-DM-CF

Laser Combiner: 405nm, 488nm, 520nm, 638nm, Options included: Direct TTL, Remote PC control, Clean-up filter, Free Space

Get Quote
Integrated-Optics_MatchBox_Combiner-1 40A-48A-52A-64A-11-DM-NF

Laser Combiner: 405nm, 488nm, 520nm, 638nm, Options included: Direct TTL, Remote PC control, Free Space

Get Quote
R1Z4-Image-Combiner-MM-Fiber 40A-48A-52A-64A-14-DM-PT

Laser Combiner: 405nm, 488nm, 520nm, 638nm, Options included: Direct TTL, Remote PC control, MM Fiber, FC/PC Connector

Get Quote

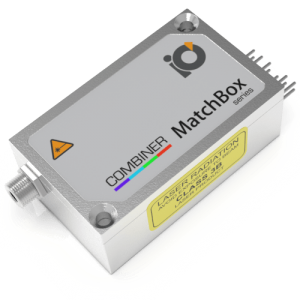

R1Z4-Image-Combiner-SMA-Port 40A-48A-52A-64A-16-DM-NT

Laser Combiner: 405nm, 488nm, 520nm, 638nm, Options included: Direct TTL, Remote PC control, SMA Port

Get Quote
a silver colored matchbox shaped & sized multi-wavelength laser beam combiner box 40A-48A-52A-XXY-11-DM-CF

Laser Combiner: 405nm, 488nm, 520nm, Options included: Direct TTL, Remote PC control, Clean-up filter, Free Space

Get Quote
Integrated-Optics_MatchBox_Combiner-1 40A-48A-52A-XXY-11-DM-NF

Laser Combiner: 405nm, 488nm, 520nm, Options included: Direct TTL, Remote PC control, Free Space

Get Quote
Integrated-Optics_MatchBox_Combiner-1 40A-48A-XXY-64A-11-DM-CF

Laser Combiner: 405nm, 488nm, 638nm, Options included: Direct TTL, Remote PC control, Clean-up filter, Free Space

Get Quote
Integrated-Optics_MatchBox_Combiner-1 40A-48A-XXY-64A-11-DM-NF

Laser Combiner: 405nm, 488nm, 638nm, Options included: Direct TTL, Remote PC control, Free Space

Get Quote
R1Z4-Image-Combiner-MM-Fiber 40A-48A-XXY-64A-14-DM-AT

Laser Combiner: 405nm, 488nm, 638nm, Options included: Direct TTL, Remote PC control, MM Fiber, FC/APC Connector

Get Quote
R1Z4-Image-Combiner-MM-Fiber 40A-48A-XXY-64A-14-DM-PT

Laser Combiner: 405nm, 488nm, 638nm, Options included: Direct TTL, Remote PC control, MM Fiber, FC/PC Connector

Get Quote
R1Z4-Image-Combiner-MM-Fiber 40A-48A-XXY-64A-14-DM-ST

Laser Combiner: 405nm, 488nm, 638nm, Options included: Direct TTL, Remote PC control, MM Fiber, SMA Connector

Get Quote
R1Z4-Image-Combiner-MM-Fiber 40A-52A-64A-78A-11-DM-CF

Laser Combiner: 405nm, 520nm, 638nm, 785nm, Options included: Direct TTL, Remote PC control, Clean-up filter, Free Space

Get Quote
Integrated-Optics_MatchBox_Combiner-1 40A-52A-64A-78A-11-DM-NF

Laser Combiner: 405nm, 520nm, 638nm, 785nm, Options included: Direct TTL, Remote PC control, Free Space

Get Quote
R1Z4-Image-Combiner-MM-Fiber 45A-52A-63A-XXY-14-DM-PT

Laser Combiner: 450nm, 520nm, 638nm, Options included: Direct TTL, Remote PC control, MM Fiber, FC/PC Connector

Get Quote
a silver colored matchbox shaped & sized multi-wavelength laser beam combiner box 52A-78A-XXY-XXY-11-DM-CF

Laser Combiner: 405nm, 520nm, 638nm, 785nm, Options included: Direct TTL, Remote PC control, Clean-up filter, Free Space

Get Quote
Integrated-Optics_MatchBox_Combiner-1 XXY-45A-52A-64A-11-DM-CF

Laser Combiner: 450nm, 520nm, 638nm, Options included: Direct TTL, Remote PC control, Clean-up filter, Free Space

Get Quote
Integrated-Optics_MatchBox_Combiner-1 XXY-45A-52A-64A-11-DM-NF

Laser Combiner: 450nm, 520nm, 638nm, Options included: Direct TTL, Remote PC control, Free Space

Get Quote
R1Z4-Image-Combiner-MM-Fiber XXY-48A-52A-66A-14-DM-ST

Laser Combiner: 488nm, 520nm, 660nm, Options included: Direct TTL, Remote PC control, MM Fiber, SMA Connector

Get Quote
Integrated-Optics_MatchBox_Combiner-1 52A-78A-XXY-XXY-11-DM-NF

Laser Combiner: 520nm, 785nm, Options included: Direct TTL, Remote PC control, Free Space

Get Quote
R1Z4-Image-Combiner-SMA-Port 52A-78A-XXY-XXY-16-DM-NT

Laser Combiner: 520nm, 785nm, Options included: Direct TTL, Remote PC control, SMA Port

Get Quote

The MB-Combiner is a configurable, ultra-compact, turn-key, multicolor laser combiner system. It utilizes a classical dichroic combining technique to combine four channels for laser diodes or photodetectors into a single optical path. The package includes two to four laser diode drivers, TEC driving electronics, a microprocessor, and the precision-aligned electro-optical part, all inside the world’s smallest footprint of 30x50x18 mm. As a result, the laser/detector unit provides unprecedented compactness and functionality. The unit is designed as an integration-ready electro-optics unit, which can be connected to an instrument’s control mainboard and power supply, perfect for OEM and portable/handheld devices and applications.

This flexible Multi-Wavelength Laser Diode combiner has many wavelength options from 405nm to 1550nm, allowing you to choose the precise combination to suit your application. It also has options including free-space, SM, PM, and MM fiber-coupled output, and a few heat sink options to choose from. Numerous customization options allow you to choose the configuration that exactly suits your needs, including customer-specified dichroic mirrors, clean-up and blocking filters, beam-shaping optics, pre-programmed modulation patterns, and more! The second generation MB-Combiner come with a redesigned Break-out-Box and completely revamped control software, increasing functionality and ease of use, allowing for individual control of each wavelength.

These Multiwavelength Combiners work perfectly with the Matchbox Series lasers:

The Matchbox series offers excellent performance and reliability in the “World’s Smallest” ultra-compact, all-in-one, integrated laser head. They can operate on a 5V power supply while maintaining low noise operation. The monolithic design of the Matchbox Series laser includes thermally stabilized optics in a hermetically sealed housing, ensuring reliable and maintenance-free operation. This series is available in wavelengths from 405 nm through 1064nm, with options for collimated beam or fiber-coupled output, and single-mode and multimode versions.

Benefits:

  • Cost-effective with smart power electronics:
    • We prioritize the balance between price and performance by installing smart power electronics, ensuring our products deliver the best value for your investment.
  • Customizable and high-performance in a compact package:
    • Our laser products can be configured to meet your specific needs and deliver exceptional performance in a miniature size, allowing for seamless integration into your system.
  • Excellent beam quality and accuracy:
    • High-quality beam properties and high pointing stability are crucial for applications requiring accurate and consistent laser performance
  • Beam delivery options:
    • From free-space to fiber-coupled to SMA port, get the beam output that fits with your application and setup.
  • Ultra-Compact – Ideal for integration:
    • Our laser products are designed for easy integration into your system, saving you time and money on installation. The ultra-compact design is perfect for lightweight, portable, handheld devices.
  • Dedicated break-out-box for easy setup:
    • Our dedicated break-out box provides PD-type power supply support, fan control, interlock, and inputs for modulation, making it easy to set up and use our products.
  • Maintenance-free operation:
    • Our hermetically sealed housing with stabilized optics ensures maintenance-free operation, providing peace of mind and reducing downtime for your system.
  • Quality assurance and compliance:
    • All of our products come with a 12-month warranty and are RoHS compliant, ensuring that you receive high-quality, reliable products.
