SHIPS TODAY

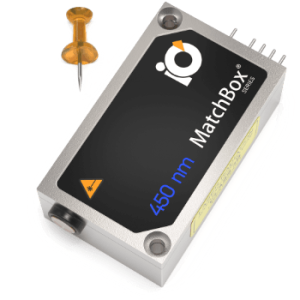

MB-VIS-MM
Laser Module, Multimode, Visible, 450-638nm, up to 600mW
Key Features:
- Multiple Fiber Coupling Options
- Ultra-compact All-in-one Design
- Thermally Stabilized Optics
- Monolithic Design
- Hermetically Sealed
- Automatic Power Control
- CW Operation with Modulation
There are many different package types, wavelengths, output powers, and options to choose from. Get help selecting the right configuration for you!
The MB-VIS-MM offers excellent performance and reliability in the “World’s Smallest” ultra-compact, all-in-one, integrated laser head. The monolithic design of these laser modules includes thermally stabilized optics in a hermetically sealed housing, ensuring reliable and maintenance-free operation. They can operate on a 5V power supply while maintaining their low-noise operation with either a collimated beam or fiber-coupled output. Designed for OEM integrators and adored by scientists, these modules offer excellent beam quality and accuracy, user-friendly software with multiple parameter monitoring, low power consumption, high cooling capacity, rugged housing, and more. All of these features make them the ideal laser source for integration into commercial flow cytometers and other Life Science applications.
If your exact needs are not in our popular configurations, define your ideal laser module and let us find the best solution!
Product Range:
Wavelength Selection:
Standard wavelength options with custom options available upon request!
| 405nm | 450nm | 532nm | 633nm | 660nm | 730nm |
Output Power Selection:
Output powers may vary based on wavelength and output type.
| 100mW | 200mW | 300mW | 400mW | 500mW | 600mW |
Output Types:
| Free-Space | No fiber, the output is a collimated beam |
| MM Fiber | Standard Multimode fiber with a 50um, 105um, or 200um fiber core diameter |
| SMA port | Detachable fiber option that allows more flexibility in replacing a damaged fiber |
Other Options:
Fiber Termination Options
- No termination
- FC/PC connector
- FC/APC connector
- SMA connector
- Collimator
Optical Isolator Options
(Free-space only)
- No isolator
- Isolator without retarder
- Isolator with retarder
Optical Filter Options
- No filter
- Clean-up filter
- Long-pass filter
- Short-pass filter
- Pump filter
Benefits:
- Cost-effective with smart power electronics:
- We prioritize the balance between price and performance by installing smart power electronics, ensuring our products deliver the best value for your investment.
- Customizable and high-performance in a compact package:
- Our laser products can be configured to meet your specific needs and deliver exceptional performance in a miniature size, allowing for seamless integration into your system.
- Excellent beam quality and accuracy:
- High-quality beam properties and high pointing stability are crucial for applications requiring accurate and consistent laser performance
- Beam delivery options:
- From free-space to fiber-coupled to SMA port, get the beam output that fits with your application and setup.
- Ultra-Compact – Ideal for integration:
- Our laser products are designed for easy integration into your system, saving you time and money on installation. The ultra-compact design is perfect for lightweight, portable, handheld devices.
- Dedicated break-out-box for easy setup:
- Our dedicated break-out box provides PD-type power supply support, fan control, interlock, and inputs for modulation, making it easy to set up and use our products.
- Maintenance-free operation:
- Our hermetically sealed housing with stabilized optics ensures maintenance-free operation, providing peace of mind and reducing downtime for your system.
- Quality assurance and compliance:
- All of our products come with a 12-month warranty and are RoHS compliant, ensuring that you receive high-quality, reliable products.
If you have any questions or need more information, please contact us.
| Wavelength (nm) | |
|---|---|
| Description | |
| Type |
