MicroMake

Micromachining System, ns/ps pulsed, 266-532nm, up to 40kW, up to 100kHz

Key Features:

All-in-One Compact Design: Includes everything needed for direct laser micro-processing
Live Microscope: Alignments & in-process inspections
Versatile Performance: High peak power @ 532nm for various materials or 266nm for transparent substrates like glass, crystals & polymers

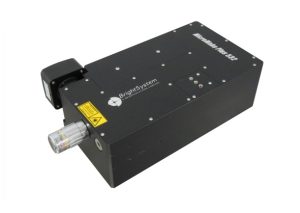

sleek modern black all-in-one laser micromachining system with attached microscope objective and camera MicroMake

POPULAR CONFIGURATIONS:

Part Number	Part Description
MicroMake 266	Machining System, 266 nm, >0.7 kW peak power, 1 kHz rep. rate, 2.5um resolution, 10X Magnification	Get Quote
MicroMake 266 Plus	Machining System, 266 nm, >7 kW peak power, 10-50 kHz rep. rate, 3um resolution, 10X Magnification	Get Quote
MicroMake 532	Machining System, 532 nm, >10 kW peak power, 1 kHz rep. rate, 4.5um resolution, 10X Magnification	Get Quote
MicroMake 532 Plus	Machining System, 532 nm, >40 kW peak power, 10-100 kHz rep. rate, 5um resolution, 10X Magnification	Get Quote

SHOW MORE OPTIONS SHOW LESS OPTIONS

Overview:
Specifications:
Datasheets/Downloads:
Applications:
Videos:

The MicroMake Series is a fully-integrated, compact, sub-ns DPSS laser micromachining system for high precision and resolution applications. A flexible platform at 532 & 266 nm, with >40 kW of peak power and processing speeds up to 100mm/second, the system includes all the needed devices for direct laser micro-processing in a single, monolithic, air-cooled configuration. Equipped with a live microscope, alignments and in-process quality checks are a breeze. All these features perfectly suit various materials utilized in microelectronic circuits, displays fabrication and correction, biomedical device machining and optical substrates microprocessing.

Your All-in-One Micromachining Solution Awaits!

Benefits:

Versatile Performance:

With their high peak power, the 532 nm wavelength lasers are versatile and robust for microprocessing a wide range of materials. The 266 nm wavelength lasers are ideal for precise microprocessing on transparent substrates like glass, crystals, and technical polymers, thanks to their efficient optical absorption and enhanced spatial resolution.

User-Friendly & Compact:

Designed to be a complete and efficient system, saving you time, space, and effort when it comes to transporting, setting up, and using the system.

Fully Integrated:

All-in-one micromachining laser, ready-to-use of the box with no additional equipment required. Optional add-ons are available to further enhance the already robust capabilities.

Flexible Platform:

Perfect for a variety of applications, making it a versatile tool for your business. It can also adapt to changes in your workflow or project requirements, providing a scalable solution.

High Precision & Resolution:

Create precise and complex shapes with ease, saving you time, increasing your productivity, and producing high-quality results, even with the most challenging materials.

Integrated Live Microscope:

Live microscope and embedded illumination provide real-time target alignment and in-process quality checks.

We’re experts in selecting the right laser for your application!

MicroMake Options:

The MicroMake series provides a host of options, enhancing its capabilities to perfectly suit your needs.

Objective lenses (10x included)	Versatile magnification & focus options for diverse needs
High-speed/resolution USB camera	Enhanced imaging resolution for precise monitoring
Circular polarization	Improved feature quality, efficiency, and consistency
External control box	User-friendly interface for simplified system control and management

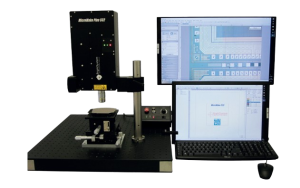

Table-top version	Mounts, stages & AC PSU for a compact & flexible setup for limited spaces
XY manual or motorized stage	Accurate positioning for detailed work (120mm travel typ.)
Z manual or motorized stage	Precise depth control for intricate tasks (40mm travel typ.)

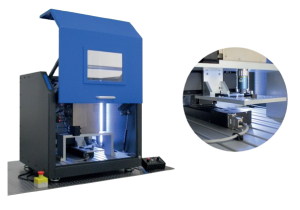

Class 1 safety enclosure	Safety-centric enclosure with interlock door to protect personnel
Electrical connector	Facilitates external integration for advanced I/O operations

MicroMake Applications:

The MicroMake series is perfect for various, advanced material processing applications.

3D direct microstructuring
Precision surface texturing
Track interruption on PCBs
Microcoding for anti-counterfeiting
Thin film removal on hard substrates
Selective metal removal on ceramic substrates
Microcorrection on wafers, masks & displays
Microdrilling on metals & transparent dielectrics

Don’t hesitate to ask us anything!

Wavelength (nm)	266, 532
Description	Micromachining System, ns/ps pulsed, 266-532nm, up to 40kW, up to 100kHz
Type	Pulsed DPSS Lasers, Ruggedized, High Peak Power, Nanosecond Lasers, Picosecond Lasers
