RANGER

DPSS Laser, ns pulsed, 1533nm, 1.5mJ, 5 or 10Hz

Key Features:

Ultra-low SWaP & robust design for handheld & portable use
1533 nm “eye-safe” wavelength
Configurable & customizable
Laboratory & OEM versions
High-quality TEM00 beam

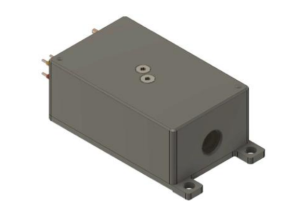

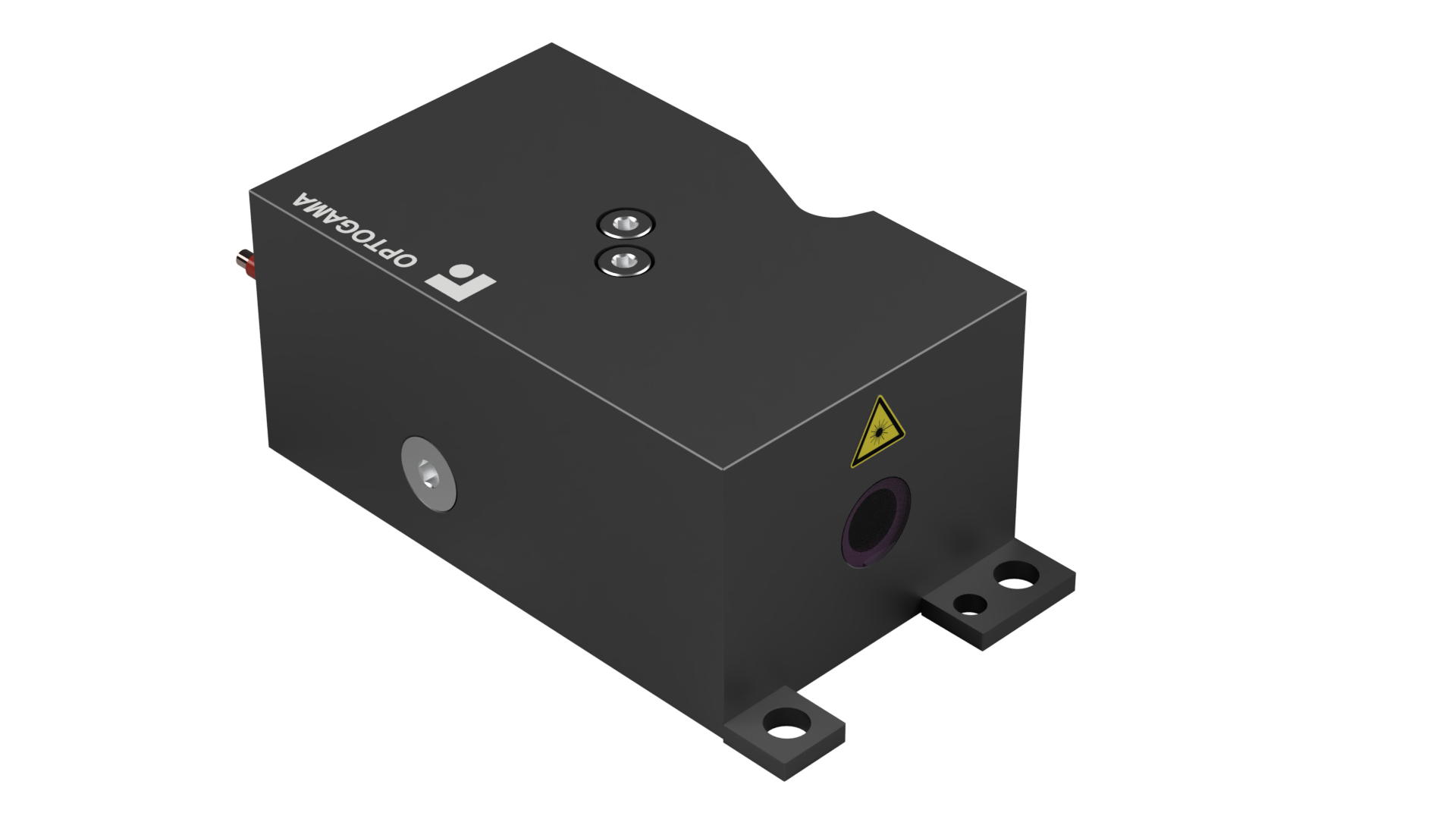

sleek, modern, ultra-compact ns pulsed dpss RANGER laser housing for portable/handheld remote sensing, LIDAR, LIBS, and more

POPULAR CONFIGURATIONS:

Part Number	Part Description
RANGER 1.5_LAB-OEM	DPSS Laser, ns Pulsed, 1533 nm, >1.5 mJ, 5 or 10 Hz, 6-6.5 ns, 10-40 deg C	Get Quote
RANGER 1.5_OEM	DPSS Laser, ns Pulsed, 1533 nm, >1.5 mJ, 5 or 10 Hz, 6-6.5 ns, -20-60 deg C	Get Quote
RANGER 1.5_LAB	DPSS Laser, ns Pulsed, 1533 nm, >1.5 mJ, 5 or 10 Hz, 6-6.5 ns, 10-40 deg C, w/ power supply & driver	Get Quote

Overview:
Specifications:
Datasheets/Downloads:
Applications:
Videos:

The RANGER series is an ultra-compact & low-SWaP line of 1.54µm “eye-safe” Er:glass lasers. These nanosecond pulsed lasers feature a compact, lightweight, and robust design that makes them suitable for integration into handheld, portable devices, fielded in harsh environments. The lasers deliver high pulse energy > 1.5 mJ, < 6-6.5 ns pulse width options, 5 or 10 Hz repetition rates, high energy stability, and a high-quality TEM00 beam. The RANGER is available with an optional collimator, either fixed to the laser head or unmounted, allowing adjustment of the beam divergence. With configurable and customizable options, these features make the RANGER series a versatile choice for various applications such as LIDAR & laser ranging, LIBS, metrology, and instrumentation.

Your robust, ultra-low SWaP laser solution awaits!

RANGER Benefits:

“Eye-Safe” 1.5µm Wavelength:

Wavelengths around the 1.5µm range are generally referred to as “eye-safe” or “retina-safe” as they are typically not considered harmful to the retina under normal conditions.

Robust, Ultra-Compact & Low-SWaP Design:

These lightweight, efficient, compact, and robust lasers are easily integrated into handheld and portable devices deployed in harsh environments.

Laboratory & OEM Versions Available w/ Optional Collimator:

Whether doing lab research or deploying in the field, the RANGER has a configuration to suit your exact requirements, including optional mounted or unmounted collimator.

High-Energy Nanosecond Pulses:

High pulse energies with nanosecond pulse widths provide cost-effective, high-performance operation for LIBS, LIDAR & various other applications.

Peace of Mind:

With a standard 1-year manufacturer’s warranty and ≈ 1G-shot rated lifetime, you can trust that you get the longevity you require from your investment.
