SB1-VIS

DPSS Laser, ns/ps pulsed, 473-532nm, up to 40µJ, up to 100kHz

Key Features:

Ultra-compact visible microchip laser at 473 or 532 nm
ns/ps pulsed operation with up to 40 µJ pulse energy
Single longitudinal mode (SLM) and narrow-linewidth output
Passively Q-switched, all-in-one rugged SB1 package
1:1 interchangeable form factor across SB1 wavelength variants
Beam expander, collimator, heat sink, dev-kit, quick-start kit & custom packaging options

SB1-VIS is great fit for applications where wavelength, package size, beam quality, SLM/narrow-linewidth operation, pulse energy, repetition rate, and integration requirements drive the final configuration.

Share your application and laser requirements. RPMC can help decide whether to start with SB1 or another Bright Solutions platform.

View Datasheet

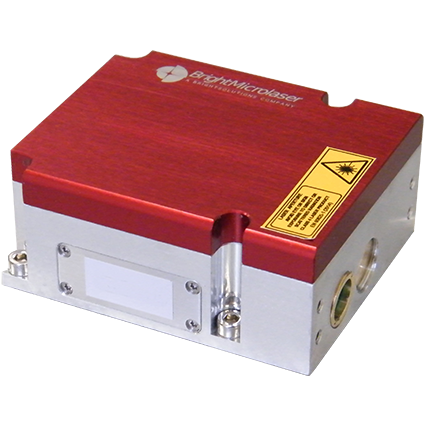

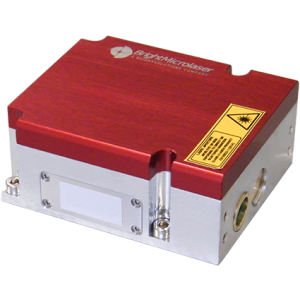

SB1-VIS: Ultra-Compact Rugged Visible Microchip Laser

POPULAR CONFIGURATIONS:

Part Number	Part Description
SB1-473-9-0.1	Microchip Laser, 473nm, up to 0.1kHz, 9µJ, 2ns	Get Quote
SB1-473-1-10	Microchip Laser, 473nm, up to 10kHz, up to 1µJ, 2ns	Get Quote
SB1-473-3-5	Microchip Laser, 473nm, up to 5kHz, 3µJ, 2ns	Get Quote
SB1-532-0.3-55	Microchip Laser, 532nm, up to 55kHz, 0.3µJ, 400ps	Get Quote
SB1-532-10-10	Microchip Laser, 532nm, up to 10kHz, 10µJ, 1.3ns	Get Quote
SB1-532-15-5	Microchip Laser, 532nm, up to 5kHz, 15µJ, 1.3ns	Get Quote
SB1-532-20-1	Microchip Laser, 532nm, up to 1kHz, 20µJ, 1.3ns	Get Quote
SB1-532-30-0.2	Microchip Laser, 532nm, up to 0.2kHz, 30µJ, 1.3ns	Get Quote
SB1-532-40-0.1	Microchip Laser, 532nm, up to 0.1kHz, 40µJ, 1.3ns	Get Quote
SB1-532-7-15	Microchip Laser, 532nm, up to 15kHz, 7µJ, 1.3ns	Get Quote

SHOW MORE OPTIONS SHOW LESS OPTIONS

Overview:
Specifications:

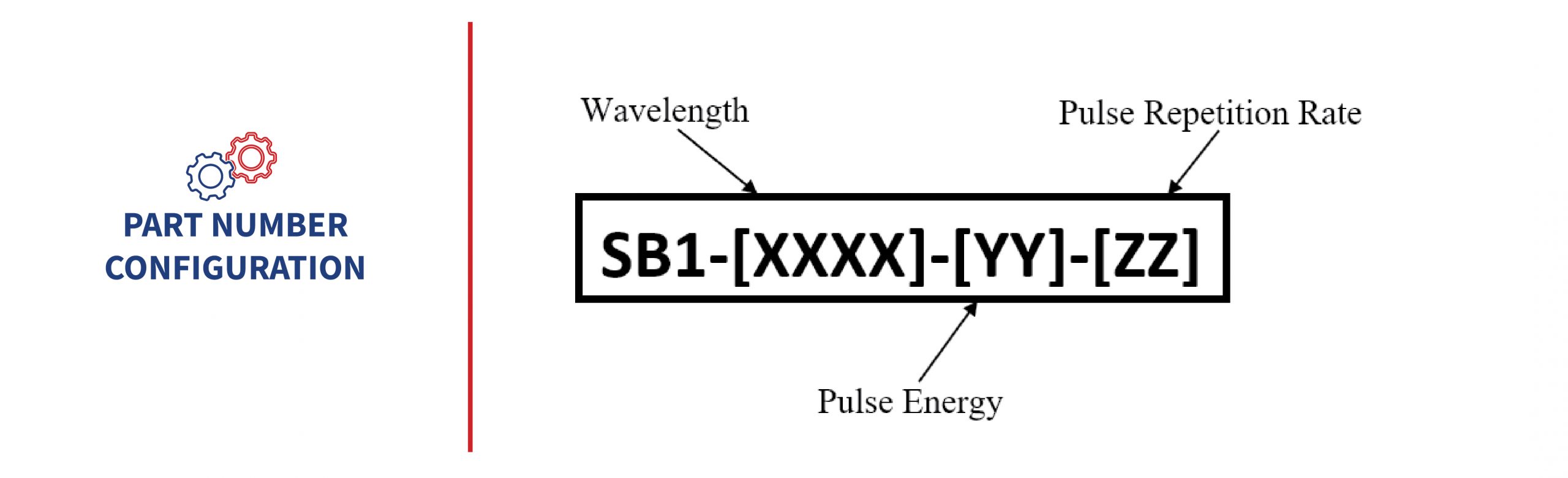

Part No. Configurator:
Datasheets/Downloads:
Applications:
Videos:

The SB1-VIS series is an ultra-compact, ruggedized visible microchip laser platform for applications that require 473 or 532 nm output in a small, integrated package. These passively Q-switched DPSS lasers offer ns/ps pulse options, SLM/narrow-linewidth performance, and the shared SB1 form factor used across the Microchip family.

SB1-VIS is a strong starting point when visible wavelength, compact packaging, beam quality, and integration flexibility matter more than maximum pulse energy or average power. The platform is commonly considered for spectroscopy, LIBS, LIDAR/ranging, marking, small-feature micromachining, electronics manufacturing, compact instrumentation, and OEM integration.

Start with SB1-VIS when your application depends on:

473 or 532 nm visible output
Ultra-compact microchip packaging
ns/ps pulsed operation
SLM/narrow-linewidth performance
Low-SWaP integration
Shared SB1 form factor and interfaces across wavelength variants
Development kit, quick-start kit, beam-expander/collimator, heat-sink, or custom packaging options

SB1-VIS is often a good starting point when the application requires a compact visible microchip laser rather than a larger configurable DPSS platform. If your requirements call for IR/NIR output, compare against SB1-IR. If UV wavelength is the main driver, compare against SB1-UV. If you need higher pulse energy, broader wavelength coverage, higher average power, MOPA architecture, or more extensive custom configuration, RPMC can help compare SB1-VIS against Onda, Wedge, SOL, Aero, Vento, or a custom Bright Solutions platform.

Tell us about your application and laser requirements:

Share your wavelength, pulse energy, pulse width, repetition rate, trigger/timing needs, output format, package constraints, and application. RPMC can help determine whether SB1-VIS or another Bright Solutions platform is the right starting point.

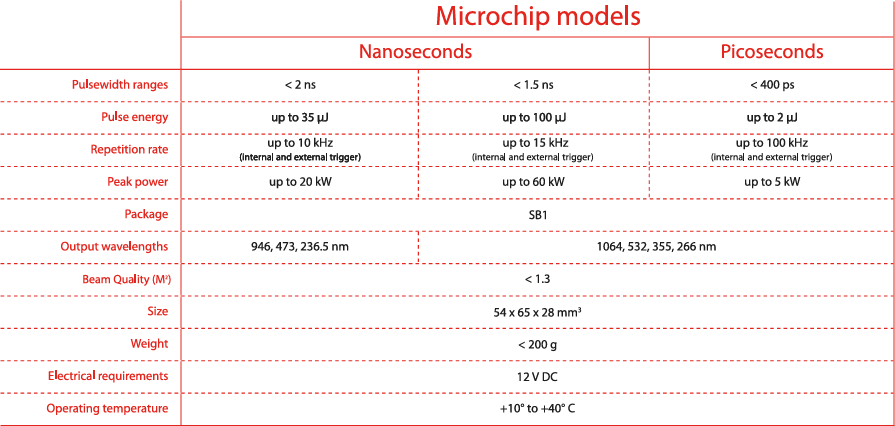

SB1-VIS/IR/UV Microchip Laser Platform Examples:

Customization options are available. Let us know what you need!

Benefits:

Compact and rugged design:

Ultra-compact and sturdy construction make Microchip series lasers easy to integrate into space-limited and harsh environments.

Single longitudinal mode (SLM) operation:

Emitting stable light at a precise frequency makes these lasers ideal for precision applications.

Narrow linewidth option:

Precise wavelength emission makes these lasers perfect for sensitive applications like scientific research and industrial manufacturing.

High pulse energy and repetition rates:

High energy output and high rep. rate make these lasers ideal for material processing and spectroscopy.

Multiple wavelengths available:

Available in a range of wavelengths, including fundamental 1064 nm and its harmonics, 946 and 473 nm, for versatility in various applications.

Interchangeable models with same form factor and interfaces:

Share the same form factor and electrical/software interfaces across wavelengths, providing flexibility and ease of use to switch between different models and explore new applications.

Microchip SB1-VIS Options:

Beam expander & collimator

Heat-sink

Development kit

Quick start/evaluation kit

Microchip Applications:

Spectroscopy/LIBS

MALDI

LIDAR

Ranging

Marking

Small feature micromachining

Electronics manufacturing

Many specialty applications…

Ready to confirm an SB1-VIS configuration?

Send RPMC details of your application and laser requirements:

application
target wavelength
timeline
quantity

average power
pulse energy
pulse width
repetition rate

trigger/timing needs
output format
package constraints
cooling preference

We’ll help confirm whether SB1-VIS, another Bright Solutions platform, or a custom DPSS configuration is the best fit.

Back to all Bright Solutions products

Wavelength (nm)	473, 532
Description	DPSS Laser, ns/ps pulsed, 473-532nm, up to 40µJ, up to 100kHz
Type	Pulsed DPSS Lasers, Microchip Lasers, Airborne Laser, Narrow Linewidth, Single Longitudinal Mode (SLM), Low SWaP, Ruggedized, High Peak Power
