KAUKAS

DPSS Laser, ns pulsed, 1534nm, 1 to 3mJ, Single Shot to 5Hz

Key Features:

Ultra-low SWaP & robust design for handheld & portable use
1534 nm “eye-safe” wavelength
Configurable & customizable
Laboratory & OEM versions
High-quality TEM00 beam

Get help selecting the right configuration for you!

If you do not see exactly what you need, please contact us!

POPULAR CONFIGURATIONS:

Part Number	Part Description
KAUKAS 1_LAB	DPSS Laser, ns Pulsed, 1534 nm, 1 mJ, SS-5 Hz, <14 ns, 10-40 deg C, w/ power supply & driver	Get Quote
KAUKAS 1_LAB-OEM	DPSS Laser, ns Pulsed, 1534 nm, 1 mJ, SS-5 Hz, <14 ns, 10-40 deg C	Get Quote
KAUKAS 1_OEM	DPSS Laser, ns Pulsed, 1534 nm, 1 mJ, SS-5 Hz, <14 ns, -20-60 deg C	Get Quote
KAUKAS 2_LAB	DPSS Laser, ns Pulsed, 1534 nm, >2 mJ, SS-2 Hz, <11 ns, 10-40 deg C, w/ power supply & driver	Get Quote
KAUKAS 2_LAB-OEM	DPSS Laser, ns Pulsed, 1534 nm, >2 mJ, SS-2 Hz, <11 ns, 10-40 deg C	Get Quote
KAUKAS 2_OEM	DPSS Laser, ns Pulsed, 1534 nm, >2 mJ, SS-2 Hz, <11 ns, -20-60 deg C	Get Quote
KAUKAS 3_LAB	DPSS Laser, ns Pulsed, 1534 nm, >3 mJ, SS-1 Hz, <8 ns, 10-40 deg C, w/ power supply & driver	Get Quote
KAUKAS 3_LAB-OEM	DPSS Laser, ns Pulsed, 1534 nm, >3 mJ, SS-1 Hz, <8 ns, 10-40 deg C	Get Quote
KAUKAS 3_OEM	DPSS Laser, ns Pulsed, 1534 nm, >3 mJ, SS-1 Hz, <8 ns, -20-60 deg C	Get Quote

SHOW MORE OPTIONS SHOW LESS OPTIONS

Overview:
Specifications:
Datasheets/Downloads:
Applications:
Videos:

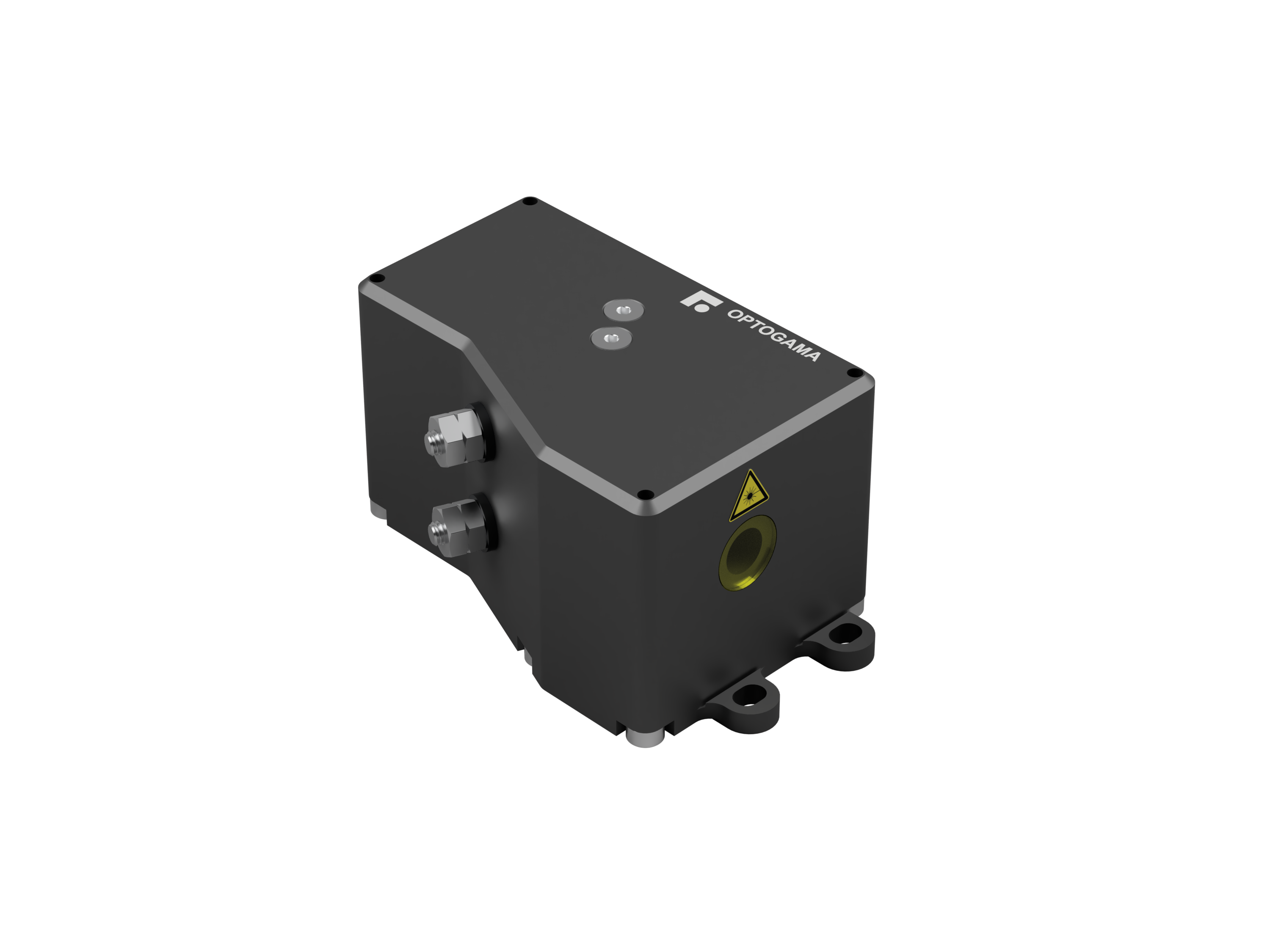

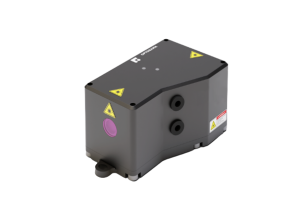

The KAUKAS series is an ultra-compact & low-SWaP line of 1.54µm “eye-safe” Er:glass lasers. These nanosecond pulsed lasers feature a compact, lightweight, and robust design that makes them suitable for integration into handheld, portable devices, fielded in harsh environments. The lasers deliver high pulse energy up to 3 mJ, repetition rates up to 5 Hz, high energy stability, and a high-quality TEM00 beam. With configurable and customizable options, these features make the KAUKAS series a versatile choice for various applications such as LIDAR & laser ranging, LIBS, metrology, and instrumentation.

Your robust, ultra-low SWaP laser solution awaits!

KAUKAS Benefits:

“Eye-Safe” 1.5µm Wavelength:

Wavelengths around the 1.5µm range are generally referred to as “eye-safe” or “retina-safe” as they are typically not considered harmful to the retina under normal conditions.

Robust, Ultra-Compact & Low-SWaP Design:

These lightweight, efficient, compact, and robust lasers are easily integrated into handheld and portable devices deployed in harsh environments.

Laboratory & OEM Versions Available:

Whether doing research in the lab or deploying out in the field, the KAUKAS has a configuration to suit your exact requirements.

High-Energy Nanosecond Pulses:

High pulse energies with nanosecond pulse widths provide cost-effective, high-performance operation for LIBS, LIDAR & various other applications.

Peace of Mind:

With a standard 1-year manufacturer’s warranty and ≈ 1G-shot rated lifetime, you can trust that you get the longevity you require from your investment.
