532L-2XB: 532nm Laser (SLM DPSS; MATCHBOX 2)

Get Quote Ask Engineer

Specifications

Overview of 532L-2XB: 535nm SLM Laser

The 532L-2XB is a 532 nm DPSS laser from Integrated Optics. The IO Matchbox series includes single mode lasers offering excellent performance and reliability in an ultra-compact “all-in-one” driver integrated laser head.  The 532L-2XB comes standard with internal voltage up-conversion that allows using a 5V power supply while maintaining low noise operation. The monolithic design of the Matchbox Series laser includes thermally stabilized optics in a hermetically sealed housing ensuring reliable and maintenance-free operation.  All the Matchbox series modules include a 12-month warranty and are RoHS compliant.

These features make the 532L-2XB the ideal source for applications like confocal fluorescence microscopy, DNA sequencing, and flow cytometry.  See our Applications for Lasers page for a complete list of applications.

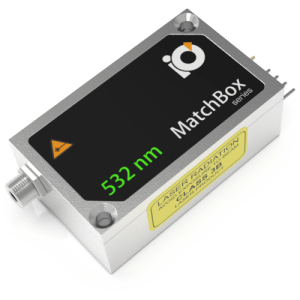

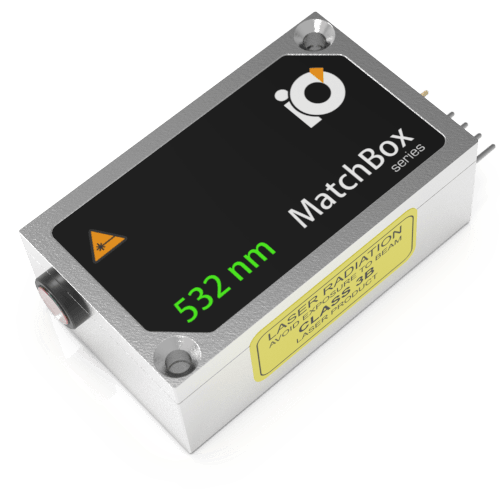

The 532L-21B is the free space version, other versions are available depending on the variable X in Part number. Here are the free space and fiber coupled output types available for the 532L-2XB:  (“X” defines the output type of the module)

532L-2XB Application

  • Raman Spectroscopy
  • Interferometry
  • Gas Sensing
  • Quantum Cryptography
  • Holography



532L-2XB Options:

SLM and High Power Diode Laser Essential Accessory Bundle

  • AM-H3: Fan Cooler for MatchBox®
  • AM-P8: 60W USB power supply, PD
  • AM-C8: USB Break-out-Box for Single Wavelength MatchBoxⓇ
  • USB-C cable for power
  • USB-micro cable for data



MatchBox Laser High-Performance Accessory Bundle

  • AM-H9: Air Cooled Heatsink With TEC For MatchBoxⓇ
  • AM-P8: 60W USB power supply, PD
  • USB-C cable for power
  • USB-micro cable for data



RS232 Break-out-Box for Single-Wavelength MatchBox

  • RS232 control
  • USB-C power port (PD – Power Delivery)
  • Interlock
  • TTL signal connector
  • Fan control
  • LED indicator for ‘Laser armed’ status
  • Pins for fan based heatsinks (AM-H3, AM-H8)



USB Break-out-Box for Single-Wavelength MatchBoxⓇ

  • USB-micro for data communication
  • USB-C for QC3.0 or PD (power delivery) power supply
  • Interlock
  • TTL modulation or FAN control (depending on a laser)
  • LED indicator for ‘Laser armed’ status
  • Pins for fan based heatsinks (AM-H3, AM-H8)



Quick Link to all Integrated Optics Laser Products
