DPSS Laser, ns Pulsed, 355 nm, 3 mJ to 13 mJ, up to 10 Hz, <8 ns
- 10mJ with <10ns pulse width @ 10Hz
- High peak power pulses
- High-speed triggering
- >0.5ns RMS jitter
There are many configurations and options available. If you do not see exactly what you need below, please contact us!
Need Quantities? Use Get Quote to get volume pricing!

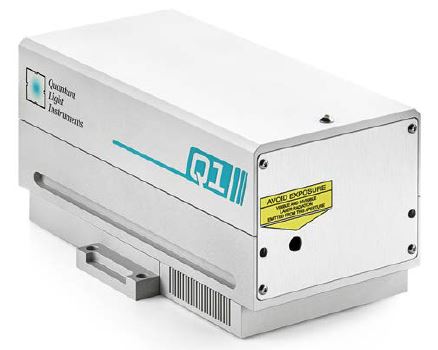

The Quantas-Q1-355 is a high energy q-switched 355nm diode pumped solid state (DPSS) laser from Quantum Light Instruments. This air-cooled, q-switched series of lasers are designed for a wide range of applications that require high peak power pulses. Due to a short laser cavity and excellent thermal properties of the Nd:YAG crystal, the Quantas-Q1-355 can deliver pulse energy of 10mJ @ 10Hz. High-speed triggering pulses with RMS jitter < 0.5 ns (in respect to the falling edge of pump diode triggering pulse). Both internal and external triggering makes this laser ideal for a wide range of high-speed applications. The Quantas-Q1-355 laser is controlled via a built-in Ethernet port with the option to add a Wi-Fi adapter, allowing users to monitor and control laser remotely. Other options include an attachable attenuator for fundamental wavelength, attachable pulse energy monitor, and more.
