Onda 355nm: 355nm High Energy Laser

Get Quote Ask Engineer

Specifications

wavelength

pulse width

output power

pulse energy

rep rate

q-switch type

series

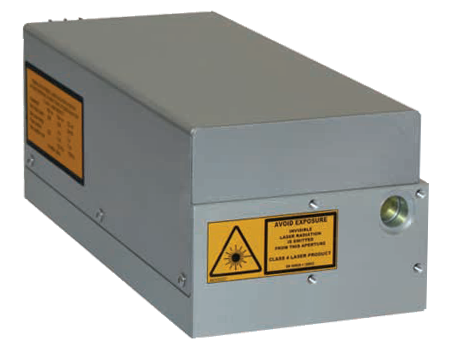

Overview of Onda 355nm: 355nm High Energy Laser

The Onda nanosecond laser series, available with up to 10W at 1064nm and 532nm, was developed as a high-energy seeder for advanced MOPA systems. The Onda is a DPSS ns-laser platform aimed at high-end applications requiring both excellent beam quality and high peak power in materials such as metals, glass, plastics, and various delicate and hard materials.

Also available at 266nm, 355nm, 532nm and 1064nm, the internal optical layout and accurate temperature management of the Onda series enables high output energies without compromising the lifetime of the THG and FHG stages. Depending on wavelength, the Onda is operational from single shot up to 100 kHz with a pulse duration between 2 and 15 ns.

The Onda series is an OEM laser configuration whose compactness and ease of use allow for a straight-forward integration with superior flexibility and good performance to cost ratio.  The Onda is also available with our optional Cbox controller with a proprietary GUI software interface for simplified remote control and monitoring of the laser.

Onda 355nm Features:

  • Up to 15W of average power
  • Up to 0.8mJ pulse energy
  • 2 to 10ns pulse width
  • Single shot to 100kHz
  • MOPA configurations
  • Monolithic design
  • Air Cooling
  • Low Waste Heat



Onda 355nm Applications:

    • Specialty marking
    • Micromachining of glass
    • Electronics manufacturing
    • LIDAR
    • Thin Film Removal
    • Hole drilling



Options Available

  • Beam Expanding and Collimating Optics
  • Fiber coupling
  • Low jitter option
  • Extended operating temperature range
  • Pulse Energy Modulation
  • Circular Polarization
  • Monitoring Photodiode
  • Red Aiming Beam
  • Remote Control Box and software interface
  • AC-DC Power Supply
  • Higher energy MOPA options
