PLDD-200-12-20-2×2

Pulsed Laser Diode Driver, 200 A, 24 V, <20 µs to 300 µs, 20 Hz

Key Features:

  • Output Current up to 200 amps
  • Up to 300 μs pulse width
  • Rise-time of <10 μs
  • Single-shot to 20 PPS
  • Current monitor output 1 volt/100 amps
  • Optimized for driving up to 12 bar stacks
  • Laser diode current driver is only 2.9 oz.



There are many configurations and options available. If you do not see exactly what you need below, please contact us!

Need Quantities?  Use Get Quote to get volume pricing!

Configurations:

Part Number
Part Description
Datasheet
Price
Lead Time

PLDD-200-12-20-2×2

Pulsed Laser Diode Driver, 200 A, 24 V, <20 µs to 300 µs, 20 Hz



2-4 weeks

Get Quote

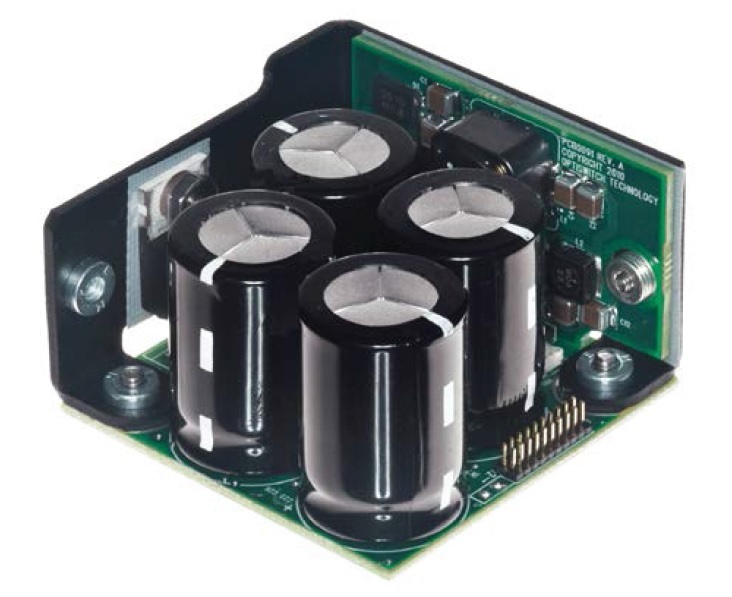

The PLDD-200-12-20-2X2 is an ultra-compact and light weight version of our standard 200 amp pulsed current source designed to drive laser diode bars, arrays of laser diode bars, or any low impedance load. The pulsed laser diode driver unit features a high peak current of 200-amps with a rise-time of <10 μs (load dependent) and a maximum pulse width of 300 μs. The pulse repetition frequency can be varied from single shot to 20 PPS.



Type

Current (A)

Voltage

Duty

,

Pulse width

Version

Notes
