RWLS-RGB-TK

Laser Diode, Multimode, Fiber-coupled, RGB, White Light, up to 100mW

Key Features:

  • Blue- 445nm, Green- 520nm, Red- 635nm
  • Adjustable Wavelength and Output Power
  • Independent Output Controls
  • Up To 100mW
  • Built-in Driver and TEC Cooling System
  • FC/SMA905 Connector
  • TTL/Analog Modulation
  • Turn-key or OEM Module
  • Long-term Reliability

There are many different package types, wavelengths, output powers, and options to choose from. Get help selecting the right configuration for you!


POPULAR CONFIGURATIONS:

Part Number
Part Description
Datasheet

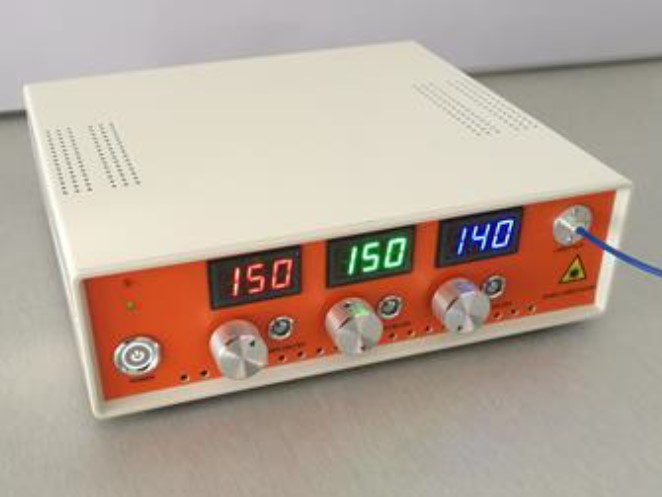

R3Z0-Image-RWLS Triplex-RWLS-445=520-635/020m-4

Triplex SMF Pigtailed Laser System: 450nm/20mW Adjustable, 520nm/20mW Adjustable, 638nm/20mW Adjustable, 3um Single Mode Fiber, FC/PC Connector: , 80cm Fiber Length:, Built in TEC Cooling System, 90V-240VAC Input Voltage, 3mm Fiber Jacket, A-200 Case Model

Get Quote
R3Z0-Image-RWLS Triplex-RWLS-445-520-635/010m-4

Triplex SMF Pigtailed Laser System: 450nm/10mW Adjustable, 520nm/10mW Adjustable, 638nm/10mW Adjustable, 3um Single Mode Fiber, FC/PC Connector: , 80cm Fiber Length:, Built in TEC Cooling System, 90V-240VAC Input Voltage, 3mm Fiber Jacket, A-200 Case Model

Get Quote
R3Z0-Image-RWLS Triplex-RWLS-445-520-635/030m-9

Triplex SMF Pigtailed Laser System: 450nm/30mW Adjustable, 520nm/30mW Adjustable, 638nm/30mW Adjustable, 3um Single Mode Fiber, FC/PC Connector: , 80cm Fiber Length:, Built in TEC Cooling System, 90V-240VAC Input Voltage, 3mm Fiber Jacket, A-200 Case Model

Get Quote
R3Z0-Image-RWLS Triplex-RWLS-445-520-635/050m-9

Triplex SMF Pigtailed Laser System: 450nm/50mW Adjustable, 520nm/50mW Adjustable, 638nm/50mW Adjustable, 105um, 0.22 Multimode Fiber, FC/PC Connector: , 80cm Fiber Length:, Built in TEC Cooling System, 90V-240VAC Input Voltage, 3mm Fiber Jacket, A-200 Case Model

Get Quote
R3Z0-Image-RWLS Triplex-RWLS-445-520-635/050m-M

Triplex MMF Pigtailed Laser System: 450nm/50mW Adjustable, 520nm/50mW Adjustable, 638nm/50mW Adjustable, 105um, 0.22 Multimode Fiber, FC/PC Connector, 80cm Fiber Length:, Built in TEC Cooling System, 90V-240VAC Input Voltage, 3mm Fiber Jacket, A-200 Case Model

Get Quote
R3Z0-Image-RWLS Triplex-RWLS-445-520-635/080m-M

Triplex MMF Pigtailed Laser System: 450nm/80mW Adjustable, 520nm/80mW Adjustable, 638nm/80mW Adjustable, 105um, 0.22 Multimode Fiber, FC/PC Connector, 80cm Fiber Length:, Built in TEC Cooling System, 90V-240VAC Input Voltage, 3mm Fiber Jacket, A-200 Case Model

Get Quote
R3Z0-Image-RWLS Triplex-RWLS-445-520-635/100m-M

Triplex MMF Pigtailed Laser System: 450nm/100mW Adjustable, 520nm/100mW Adjustable, 638nm/100mW Adjustable, 105um, 0.22 Multimode Fiber, FC/PC Connector, 80cm Fiber Length:, Built in TEC Cooling System, 90V-240VAC Input Voltage, 3mm Fiber Jacket, A-200 Case Model

Get Quote

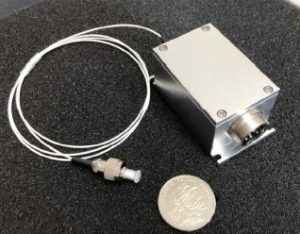

RGB White Laser Diode RWLS RWLX Triplex-RWLX-445-520-635/010m-4-H-T

Triplex SMF Pigtailed Laser Module: 450nm/10mW, 520nm/10mW, 638nm/10mW, 3um Single Mode Fiber, FC/SMA905 Connector, 80cm Fiber Length:, Built in TEC Cooling System and Thermistor, 0.9mm Fiber Jacket, HHL-01 package

Get Quote
RGB White Laser Diode RWLS RWLX Triplex-RWLX-445-520-635/015m-4-H-T

Triplex SMF Pigtailed Laser Module: 450nm/15mW, 520nm/15mW, 638nm/15mW, 3um Single Mode Fiber, FC/SMA905 Connector, 80cm Fiber Length:, Built in TEC Cooling System and Thermistor, 0.9mm Fiber Jacket, HHL-01 package

Get Quote
RGB White Laser Diode RWLS RWLX Triplex-RWLX-445-520-635/020m-4-H-T

Triplex SMF Pigtailed Laser Module: 450nm/20mW, 520nm/20mW, 638nm/20mW, 3um Single Mode Fiber, FC/SMA905 Connector, 80cm Fiber Length:, Built in TEC Cooling System and Thermistor, 0.9mm Fiber Jacket, HHL-01 package

Get Quote
RGB White Laser Diode RWLS RWLX Triplex-RWLX-445-520-635/030m-9-H-T

Triplex SMF Pigtailed Laser Module: 450nm/30mW, 520nm/30mW, 638nm/30mW, 9um Single Mode Fiber, FC/SMA905 Connector, 80cm Fiber Length:, Built in TEC Cooling System and Thermistor, 0.9mm Fiber Jacket, HHL-01 package

Get Quote
RGB White Laser Diode RWLS RWLX Triplex-RWLX-445-520-635/050m-9-H-T

Triplex SMF Pigtailed Laser Module: 450nm/50mW, 520nm/50mW, 638nm/50mW, 9um Single Mode Fiber, FC/SMA905 Connector, 80cm Fiber Length:, Built in TEC Cooling System and Thermistor, 0.9mm Fiber Jacket, HHL-01 package

Get Quote
RGB White Laser Diode RWLS RWLX Triplex-RWLX-445-520-635/050m-M-H-T

Triplex MMF Pigtailed Laser Module: 450nm/50mW, 520nm/50mW, 638nm/50mW, 105um MultiMode Fiber, FC/SMA905 Connector, 80cm Fiber Length:, Built in TEC Cooling System and Thermistor, 0.9mm Fiber Jacket, HHL-01 package

Get Quote
RGB White Laser Diode RWLS RWLX Triplex-RWLX-445-520-635/080m-M-H-T

Triplex MMF Pigtailed Laser Module: 450nm/80mW, 520nm/80mW, 638nm/80mW, 105um MultiMode Fiber, FC/SMA905 Connector, 80cm Fiber Length:, Built in TEC Cooling System and Thermistor, 0.9mm Fiber Jacket, HHL-01 package

Get Quote
RGB White Laser Diode RWLS RWLX Triplex-RWLX-445-520-635/100m-M-H-T

Triplex MMF Pigtailed Laser Module: 450nm/100mW, 520nm/100mW, 638nm/100mW, 105um MultiMode Fiber, FC/SMA905 Connector, 80cm Fiber Length:, Built in TEC Cooling System and Thermistor, 0.9mm Fiber Jacket, HHL-01 package

Get Quote

The RWLS-RGB-TK of RGB White Laser Diodes offers a customizable, versatile, and reliable solution for your laser applications. Available in a wide range of power levels, with three base wavelengths: 635 nm (Red), 520nm (Green), and 445nm (Blue), the RWLS series can be tailored to your exact specifications. Typically packaged in a pigtailed HHL configuration, with built-in TEC, there are plenty of customization options including wavelength, power, and packaging. RPMC provides a top-of-the-line solution for those looking for a reliable, customizable, and versatile laser diode.  Trust in RPMC Lasers for high-performance, reliable products that deliver consistent results.

Benefits:

  • Customization and Versatility:
    • Available in a wide range of power levels and customizable to your exact specifications, including wavelength, power, and packaging.
    • This level of customization ensures that you get the perfect solution for your specific application.
  • High-Quality Performance:
    • With adjustable wavelength, a built-in TEC cooling system, and fiber-coupling, the RWLS series provides a high-quality laser diode solution for your application.
    • Its performance is reliable and consistent, delivering the results you need.
  • Affordability and Reliability:
    • Despite its high quality and advanced features, the RWLS series is one of the most competitively priced units on the market.
    • With rigorous testing including aging and temperature cycling tests, you can trust that the RWLS series will provide long-term reliability and consistent performance.
  • Compact Size:
    • Compact package size, making it easy to integrate into your existing setup and saving valuable space in your lab or production line.
