RPK-VIS-SM

Laser Diode, Single mode, Fiber-coupled, Visible, 400-750nm, up to 40mW

Key Features:

  • Fiber Coupled laser diodes in your choice of package.
  • Visible wavelengths from 400nm to 750nm.
  • Single Mode laser diodes allow for higher beam quality with minimal divergence.

There are many different package types, wavelengths, output powers, and options to choose from. Get help selecting the right configuration for you!





POPULAR CONFIGURATIONS:

Part Number
Part Description
Datasheet

R1Z0-Image-RPK635-03-0.002W-00413-NA RPK635-03-0.002W-00413-NA

Fiber Coupled Laser Diode, Pigtailed, 635 +/-10nm, 2mW, Back-reflection protected, Coaxial Package, 1m long 4um, 0.13NA fiber (No Connector)

Get Quote

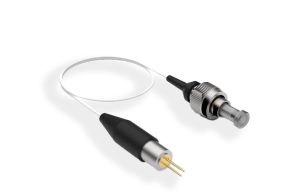

R1Z0-Image-RPK660-03-0.040W-00413-NA RPK660-03-0.040W-00413-NA

Fiber Coupled Laser Diode, Pigtailed, 635 +/-10nm, 40mW, Back-reflection protected, Coaxial Package, 1m long 4um, 0.13NA fiber (No Connector)

Get Quote

The RPK-VIS-SM from RPMC Lasers is a high-power fiber-coupled laser diode suitable for a wide range of applications. These visible-light laser diodes can be tailored for your specific needs with wavelengths from 400nm to 750nm, and output powers up to 40mW, in either a module or turn-key package. Our specialized fiber-coupling techniques ensure high efficiency, stability, and superior beam quality, while rigorous inspections and burn-in procedures guarantee each product’s reliability, stability, and long lifetime. The Turn-key option allows for control over the operating temperature, current, and pulse width, with a flexible and easy-to-use interface. Highly customizable packages allow RPMC Lasers to meet our customers’ specific needs, providing high-quality products at reasonable prices.

If your exact needs are not in our popular configurations, define your ideal laser diode and let us find the best solution!

Product Range:

Wavelength Range:

Visible light covers the wavelengths of 400nm to 750nm and the colors of violet, blue, green, red, and everything in between. Standard wavelength options with custom wavelengths available to better fulfill your needs.

Color Color Range  Popular Wavelengths
Violet 400nm- 419nm 405nm 415nm
Blue 420nm- 499nm 445nm 465nm
Green 500nm- 559nm 505nm 530nm
Red 560nm-750nm 635nm 690nm

Output Power Range:

These devices are available with single emitters or multiple emitters for higher output power.  Output power depends on the wavelength and the number of emitters.

2mW 5mW 10mW 20mW 40mW

Fiber Core Diameter:

In general, smaller fiber core diameter provides higher brightness and larger fiber diameters offer higher output powers. The standard fiber core size is 4um.

4um 9um

Output Options:

Options include attached fiber (Pigtailed), detachable fiber, and windowed devices.

Pigtailed The fiber is permanently attached to the device Minimizes losses in the fiber coupling
Detachable The fiber can be detached from the device Allows more flexibility in replacing a damaged fiber
Windowed No fiber, just a collimated beam output For when fiber delivery is not needed.

Connector Types:

The standard fiber connector options for MM laser diodes are SMA, FC, and none.

SMA Connector Industry-standard connector type with minimal connector interface and a screw-type coupling mechanism.
FC Connector Industry-standard connector type with tighter tolerances minimizing misalignments.

Package Type:

These laser diodes are packaged as either a module or a turn-key system. Modules are better for integrating into a custom system while the turn-key systems allow for better control over the lasers.

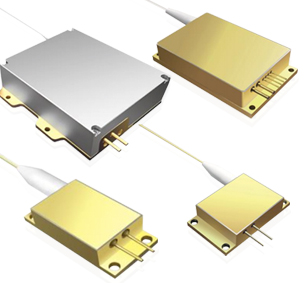

Module – Standard Turn-key – DS3
rackmount turnkey diode fiber laser system
This laser diode module is designed for easy integration, high stability, superior beam quality, and a long lifetime. This turn-key system allows for control over the operating temperature, current, and pulse width, with an easy-to-use interface.


Other Options:

Depending on the package and the number of electrical connections available, some packages offer more options than others.

Thermoelectric Cooler (TEC) Provides more control of the laser diode temperature
Photodiode Monitors the light energy for more accurate data.
Thermistor Monitors the laser diode temperature
Back Reflection Protected Reduces potential damage to the laser diode from back reflections

*Not all packages, output powers, and options are available with every wavelength

*Some products may require a minimum order

Benefits:

  • Specialized fiber-coupling techniques result in high efficiency, stability, and superior beam quality.
  • More precise and accurate results in material processing, medical therapeutics, and solid-state laser media pumping.
  • Stringent inspecting and burn-in procedures guarantee reliability, stability, and long product lifetime.
  • Highly efficient, stable, and long diode lifetime for increased confidence and trust in product performance and longevity.
  • Cost-effective solution with minimal maintenance requirements and reduced downtime.
  • Complete turn-key option – Easy to use DS3 air-cooled laser diode system option for the RPK Series diode lasers.
  • Easy and hassle-free integration for various applications saves you time, money, and headaches.
  • Highly customizable, tailored solutions with different packages to meet customers’ unique needs.
