Specifications
| current | |
|---|---|
| voltage | |
| duty |
Overview:

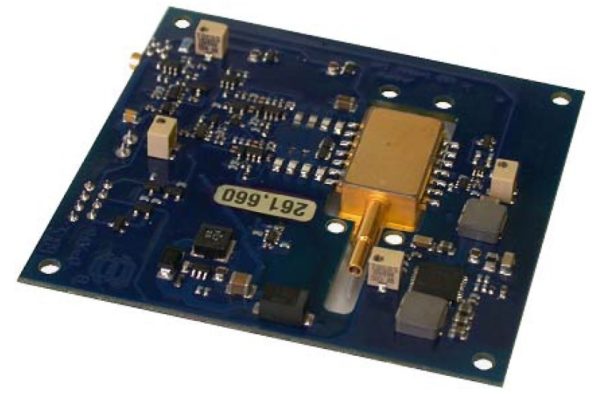

AMI’s Model 763 OEM seed laser diode driver is ideal for driving 14-pin butterfly packaged laser diode modules for use in CW or pulsed fiber MOPA systems. Applications include materials processing, LIDAR systems for remote sensing, fiber optic temperature sensing, laser communication and rangefinding.
Features include:
- Output current up to 1.2 Amps
- Output pulse width – 10nsec to CW
- Compliance voltage to 3.0V
- Fast rise time of 6nsec
- 5VDC input power
- RoHS Compliant
Proprietary technology allows AMI’s 763 laser diode driver to offer a 1.2A, 3.0V driver with industry-leading efficiency and footprint. Multiple drivers can be stacked together to achieve higher output currents. The laser driver includes open circuit, short circuit, over temperature and under voltage lockout protection.
Datasheets:
763.pdfRelated products
-
