Deep-UV (DUV) lasers at 266 nm are transforming industries that demand ultra-precise material processing, high-resolution imaging, and reliable performance in challenging environments. From ophthalmic lens marking and micro-machining to LIDAR mapping, medical diagnostics, and scientific research, these compact, high-power sources deliver the wavelength, pulse energy, and beam quality needed for next-generation applications. For OEM integrators and engineers seeking robust laser sources, Bright Solutions’ 266 nm portfolio – distributed exclusively in North America by RPMC Lasers – offers unmatched versatility and reliability.
Why 266 nm Lasers Excel in Demanding Applications
The 266 nm wavelength sits in the deep-UV range, offering exceptional absorption in many materials while maintaining excellent beam quality. This makes it ideal for high-precision tasks where longer wavelengths fall short. In ophthalmic lens marking, 266 nm lasers enable permanent, high-contrast markings without compromising lens integrity. In micro-machining and materials processing, they deliver clean ablation with minimal heat-affected zones. For LIDAR and mapping systems, the short wavelength supports high-resolution atmospheric or underwater sensing. Medical and scientific users benefit from the wavelength’s ability to excite fluorescence or perform precise spectroscopic analysis.
Bright Solutions has optimized both nanosecond (ns) and picosecond (ps) 266 nm lasers to meet these needs, combining high peak power, low jitter, and rugged designs for real-world reliability.
Bright Solutions’ Nanosecond 266 nm Lasers: High-Energy Performance

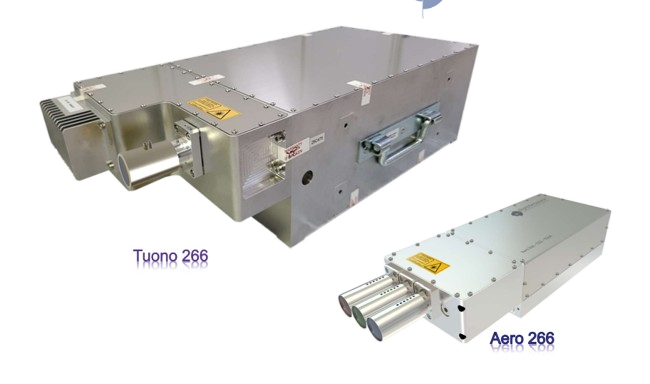

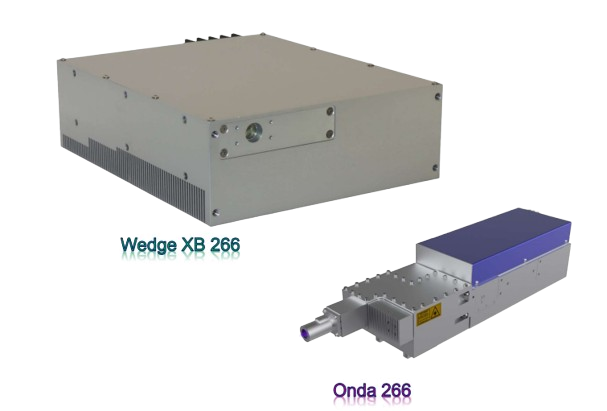

Bright Solutions’ ns 266 nm lasers are engineered for applications requiring substantial pulse energy and robust operation. Models like the Onda 266, Wedge XB 266, Aero 266, and Tuono 266 deliver pulse energies from 80 µJ to 20 mJ, with repetition rates up to 150 Hz and pulse widths of 1.5–12 ns. These lasers feature monolithic designs, air or water cooling, and field-replaceable THG/FHG stages for long-term uptime.
Key advantages include:
- High peak power (>1.5 MW in Tuono models)
- Excellent beam quality (M² <5)
- Low jitter for precise synchronization
These ns sources are perfect for industrial marking, LIDAR, and medical treatments where higher energy and simpler operation are priorities.
Bright Solutions’ Picosecond 266 nm Lasers: Superior Resolution and Speed
For applications demanding the highest resolution and minimal thermal effects, Bright Solutions’ ps 266 nm lasers stand out. The Lampo 266 (<70 ps, up to 20 µJ) and Wedge HF/XF 266 (400–1500 ps, up to 15 µJ) provide ultra-short pulses with repetition rates from single-shot to 200 kHz or 40 MHz. Their compact, single-unit footprints and water-cooled designs ensure easy integration.
These ps lasers excel in:
- Ophthalmic lens marking (clean, high-contrast marks)
- Glass and delicate material processing
- Scientific instrumentation requiring narrow bandwidth
With M² <1.5 and >5,000 hours of lifetime at 266 nm, they combine fiber-laser ruggedness with DPSS spectral purity.
Benchmarking Bright Solutions’ 266 nm Portfolio
Bright Solutions offers a complete range of 266 nm lasers, allowing you to select the right balance of energy, speed, and cooling for your application.
Some configuration examples @ 266 nm:
| 266 nm Laser | Max Energy | PRR | Pulsewidth | Notes |
| SB1 | 2 µJ | <10 kHz | 1.5 ns | ultra-compact, |
| Wedge | 500 µJ | 1 kHz | 1.5 ns | high energy ns |
| Onda | 80 µJ | ≤50 kHz | 2–6 ns | versatile MOPA platform |
| Aero | 12 mJ | ≤50 Hz | <10 ns | high-energy, rugged |
| Tuono | 20 mJ | ≤150 Hz | <12 ns | highest energy |
| Lampo | 30 µJ | 50–200 kHz | <70 ps | ultrafast ps MOPA |
Whether you need high-energy ns pulses for LIDAR or ultrafast ps pulses for precision marking, Bright Solutions provides a tailored 266 nm solution.
Real-World Applications of 266 nm Lasers
Ophthalmic Lenses
266 nm lasers create permanent, high-contrast markings on lenses without damaging the substrate, improving traceability and branding while maintaining optical clarity.
Marking and Micro-Machining
The short wavelength enables clean ablation of glass, plastics, and delicate materials, delivering high-resolution marks and minimal heat-affected zones for industrial production.
LIDAR and Mapping
High-pulse-energy 266 nm sources support airborne and ground-based LIDAR systems, offering superior resolution for atmospheric and underwater mapping.
Medical and Scientific Research
Compact, reliable 266 nm lasers power fluorescence excitation, spectroscopy, and diagnostic tools in medical and scientific labs.
About Bright Solutions
Bright Solutions, founded in 1998 by researchers from the University of Pavia, specializes in innovative diode-pumped solid-state (DPSS) lasers for industrial, aerospace/defense, medical, and scientific markets. With 60 employees (including 30 laser engineers and PhDs), two ISO 9001:2015-certified facilities in Italy, and over 16,000 lasers installed worldwide, Bright Solutions combines strong R&D with industrial-scale production. Their focus on compactness, reliability, and customization has earned them a reputation for high-performance solutions backed by decades of photonics expertise.
Ready to Explore 266 nm Laser Solutions?
Whether you need a compact ps source for ophthalmic marking or a high-energy ns laser for LIDAR, Bright Solutions’ 266 nm portfolio delivers the precision and reliability your application demands.
Talk to our laser experts today to discuss your requirements and discover the right 266 nm solution for your project. Email us at [email protected] or click the button below!
