kHz Range Lasers

Unlike continuous-wave lasers, the output of kHz range pulsed lasers cannot be specified by their output power alone.  This is because the output power of a pulsed laser is determined by three different parameters the laser’s pulse width, pulse energy, and pulse repetition rate.

On this page, we have a list of all of the kHz rep rate lasers (1kHz-999kHz) offered by RPMC. These lasers are used for a wide variety of industrial laser applications.

There are many options available on these lasers. If you need help selecting the best laser for your application or defining the specifications needed for a specific application, contact one or our product specialist:

Filters Reset

Type

Wavelength Selection

Power Selection

Energy Selection

Pa_pulse-width-selection

Rep Rate Selection

Series

Picture Part Number Type Wavelength (nm) pa_output-power pa_pulse-energy pa_pulse-width pa_rep-rate Q-switch type
Pulsed Fiber Laser BK-FL-Pulsed Pulsed Fiber Lasers, "Eye Safe", Low SWaP, Ruggedized, High Peak Power, Customizable 1030-1100, 1540-1560 Active
rendering of a CAD drawing of a compact, modern, OEM, DPSS laser housing Iris Pulsed DPSS Lasers, Low SWaP, Adjustable Rep Rate, High Peak Power, Low Jitter 447, 671 Active
sleek modern gray colored Jasper Flex compact high-power all-fiber femtosecond & picosecond laser oscillator Jasper Flex Pulsed Fiber Lasers, Ultrafast Lasers, Ruggedized, Adjustable Rep Rate, Adjustable Pulse Width, High Peak Power 1030
sleek modern gray colored Jasper Micro compact all-fiber femtosecond & picosecond laser oscillator Jasper Micro Pulsed Fiber Lasers, Ultrafast Lasers, Ruggedized, Adjustable Rep Rate, Adjustable Pulse Width, High Peak Power 1030
sleek modern gray colored Jasper X0 high-power all-fiber femtosecond & picosecond laser oscillator with 5-year warranty ribbon Jasper X0 Pulsed Fiber Lasers, Ultrafast Lasers, Ruggedized, Adjustable Rep Rate, Adjustable Pulse Width, High Peak Power 1030
Jenlas Fiber ns Pulsed Fiber Lasers, Ruggedized, Adjustable Rep Rate, High Pulse Energy, High Peak Power, Customizable 1085 Active
Image of a modern OEM laser housing made of high-grade aluminum, long silver rectangle body with fan slits, output window and stickers Lampo Pulsed DPSS Lasers, Ultrafast Lasers, Ruggedized, Adjustable Rep Rate, High Peak Power 266, 355, 532, 1064 Active
neoMOS Pulsed DPSS Lasers, Ultrafast Lasers, Ruggedized, Adjustable Rep Rate, High Peak Power, Customizable 1064
rendering of a CAD drawing of a compact, modern, OEM, DPSS laser housing Nimbus Pulsed DPSS Lasers, Adjustable Rep Rate, High Pulse Energy, High Peak Power, Low Jitter, Customizable 770, 1064 Active
Onda 1064nm Onda Pulsed DPSS Lasers, Adjustable Rep Rate, High Peak Power, Customizable 266, 355, 532, 1064 Active
One-1030-100: 1030nm Miniature Q-Switched Laser One Pulsed DPSS Lasers, Airborne Laser, Low SWaP, Ruggedized, Adjustable Rep Rate, High Peak Power, Customizable 1030, 1047, 1064 Passive
sleek, modern, light grey colored OPO & DPSS laser housing Q-TUNE-HR Pulsed DPSS Lasers, Tunable Lasers, Multi Wavelength, High Peak Power, Turn-Key System, Customizable Tunable
Bright Microlaser Microchip SB1 Laser SB1-IR Pulsed DPSS Lasers, Microchip Lasers, Airborne Laser, Narrow Linewidth, Single Longitudinal Mode (SLM), Low SWaP, Ruggedized, High Peak Power 946, 1064 Passive
Bright Microlaser Microchip SB1 Laser SB1-UV Pulsed DPSS Lasers, Microchip Lasers, Airborne Laser, Narrow Linewidth, Single Longitudinal Mode (SLM), Low SWaP, Ruggedized, High Peak Power 236.5, 266, 355 Passive
Bright Microlaser Microchip SB1 Laser SB1-VIS Pulsed DPSS Lasers, Microchip Lasers, Airborne Laser, Narrow Linewidth, Single Longitudinal Mode (SLM), Low SWaP, Ruggedized, High Peak Power 473, 532 Passive
sleek modern dpss laser housing, simple cubic design, black and red with optical fiber & connector SL-Pico Supercontinuum Laser, Broadband Lasers, Ultrafast Lasers, Multi Wavelength, Adjustable Rep Rate, High Peak Power, Turn-Key System 410-2400
simple, compact OEM pulsed laser housing with cooling fan and f-theta lens SOL Pulsed DPSS Lasers, Ruggedized, Adjustable Rep Rate, High Pulse Energy, High Peak Power 355, 532, 1064 Active
sleek modern dpss laser housing, simple cubic design, black and blue TLS-Blue-Fixed-Bandwidth Supercontinuum Laser, Broadband Lasers, Tunable Lasers, Ultrafast Lasers, Multi Wavelength, Adjustable Rep Rate, High Peak Power, Turn-Key System Tunable
sleek modern dpss laser housing, simple cubic design, black and red TLS-Red-Tunable-Bandwidth Supercontinuum Laser, Broadband Lasers, Tunable Lasers, Ultrafast Lasers, Multi Wavelength, Adjustable Rep Rate, High Peak Power, Turn-Key System Tunable
clean, modern, silver colored OEM DPSS Laser housing Vento Pulsed DPSS Lasers, Mil-Spec Lasers, Airborne Laser, Low SWaP, Ruggedized, Adjustable Rep Rate, High Pulse Energy, High Peak Power, Customizable 532, 1064 Active
metal pulsed laser housing, gray metal, cooling fins, output port Wedge Pulsed DPSS Lasers, Airborne Laser, Ruggedized, Adjustable Rep Rate, High Pulse Energy, High Peak Power, Low Jitter 266-3100 Active

FL-P Series

1um 1.5um Pulsed Fiber Lasers

The FL-P series of pulsed fiber lasers, manufactured to Telcordia standards, is designed for diverse applications with average powers up to 5W at 1μm and 1.5μm, peak powers reaching 25kW, and pulse widths from 400ps to 50ns. Available in both OEM and Turnkey formats, this series delivers flexibility with a wide range of configurations, including pulse monitoring, internal/external triggering, TTL or LVDS input signals, and extended operating temperature options. Its robust, compact design makes it ideal for systems where space and reliability are critical, providing high-quality, customizable laser solutions for the most demanding environments.

Iris Series

rendering of a CAD drawing of a compact, modern, OEM, DPSS laser housing

The Iris Series is a line of low SWaP, air-cooled, nanosecond pulsed DPSS lasers at 447nm (blue) and 671nm (red), designed for air-to-ground & air-to-sea LIDAR, aerosol detection, and communications (blue wavelength’s exhibit high transmission through water and clouds), medical applications, and special marking applications. The Iris Series offers powerful and flexible lasers. With adjustable pulse width (15-50 ns) and rep. rate (50-100 kHz), an easily integrated, compact, all-in-one design, and optional add-ons, these lasers are ready to tackle demanding applications.

Jasper Series

The Jasper series is a diverse set of high-performance femtosecond fiber lasers providing different solutions based on a standard technology. The series includes the high-power Jasper X0 (200 µJ pulse energy / 60 W average power), the compact Jasper Micro (5 µJ pulse energy / 7 W average power) in a space-saving design, and the Jasper Flex for microprocessing (30 µJ pulse energy). Each model provides a fast warm-up time, long-term stability, and hands-free operation. Whether you need high power, compactness, or specific processing capabilities, the Jasper series has a solution.

Jenlas Fiber ns

The JenLas Fiber ns series is a versatile line of fiber lasers designed for OEM integrators, researchers, and applications specialists working with material processing applications. Available in 20, 30, 55, and 100W power configurations, this air-cooled laser series boasts reliable, industry-tested fiber laser technology and an adjustable pulse length. With pulse duration settings ranging from 50 to 200 nanoseconds and peak pulse powers of up to 8kW, this series offers improved performance and extended control capabilities, allowing for pulse repetition rates and pulse lengths to be changed by choosing different modes. The JenLas Fiber ns series is available with a complete set of customizable accessories, including laser controllers, beam expanders, and more.

Lampo Series

Image of a modern OEM laser housing made of high-grade aluminum, long silver rectangle body with fan slits, output window and stickersThe Lampo Series is a line of compact ultrafast lasers that deliver megawatt-level ps laser pulses at a selectable PRR from 50 kHz to 40 MHz. Available in IR (1064 nm), SHG (532 nm), and Deep-UV (266 nm) versions (355nm by request), the series offers pulse durations < 70 ps and average power up to 20W, 10W, and 1.5W respectively. With pulse energy up to 250uJ, 150uJ, and 30uJ, these lasers are ideal for a wide range of scientific, industrial, defense, medical, biological, and LIDAR applications. Built into a rugged, air-cooled single-unit laser head, these lasers are easy to operate and integrate, making them a valuable tool for sophisticated laser systems and lab applications.

neoMOS Series

neoMOS 700fsThe neoMOS ultrashort pulse laser series is a reliable, low-maintenance system designed for 24/7 industrial use. The ultra-compact laser head has the smallest footprint available and can be customized for a range of laser parameters, allowing easy integration and flexibility with various demanding processing applications, including glasses and plastics. It offers pulse widths from 700fs to 70ps, repetition rates from single-shot to 80MHz, up to 500µJ pulse energy, average output powers up to 100W, multi-megawatt peak powers, and perfect TEM00 beam quality @ 1064nm.

Nimbus Series

rendering of a CAD drawing of a compact, modern, OEM, DPSS laser housing

The Nimbus Series is a line of highly compact, air-cooled (water-cooled option), short nanosecond (770 nm) and picosecond (1064 nm) pulsed DPSS lasers with high peak power & high energy pulses, designed for photoacoustic flow cytometry (PAFC), but also useful for LIDAR, material processing, and medical applications. NIR wavelengths provide increased tissue penetration, and particularly at 770 nm, the Nimbus is perfect for photodynamic therapy (PDT) and photobiomodulation (PBM) applications. Low pulse jitter reduces variations in trigger delay, and stable energy output ensures consistent results for measurement or processing.

Onda Series

Onda 532nm: 532nm High Energy Laser

The Onda series is a DPSS nanosecond OEM industrial laser solution, designed for high-end applications requiring excellent beam quality and high peak power in metals, glass, plastics, and various delicate and hard materials. This compact, air-cooled, and easy-to-use single unit laser series allows for straightforward integration, is available in wavelengths of 266, 355, 532, and 1064nm, and provides a superior performance to cost ratio. The Onda series’ internal optical layout and accurate temperature management enable high output energies without compromising the lifetime of the THG and FHG stages. Many optional add-ons and customization options.

One Series

One-1030-100: 1030nm Miniature Q-Switched Laser

The One Series is an ultra-compact, rugged, versatile, nanosecond pulsed (up to 200µJ), passive q-switch laser series designed for OEM integrators and application specialists working with industrial and portable applications. These lasers provide sufficient peak power for extremely high-quality metal & plastic marking in compact & portable marking systems or for airborne LIDAR. With its compact & efficient contact-cooled package, attractive pricing, optional CW operation with up to 4 W average power, and configurable options & add-ons, this 1030nm series offers easy, flexible integration possibilities and exceptional, cost-effective performance for a range of applications.

Q-TUNE-HR Series

sleek, modern, light grey colored OPO & DPSS laser housingThe Q-TUNE-HR series is a high repetition rate OPO producing a tunable wavelength range from ≈ 750 – 1800 nm and up to 100 kHz pulse repetition rate, the perfect coherent light source for micromachining, Raman spectroscopy, microscopy, and remote sensing applications. Q-TUNE-HR requires an external pump source with > 350 μJ pulse energy and 5 – 7 ns FWHM pulse duration @ 532 nm for operation: pulse repetition rate can be in 10 – 100 kHz range and acceptable pump power in the 3.5 – 30 W range. By default OPO is optimized to produce maximum output in 1200 – 1800 nm range (optional: 750 – 950 nm). In addition to the tunable range, the pump laser wavelength is accessible through a convenient bypass port.

Microchip Series

Bright Microlaser Microchip SB1 Laser

The Microchip series is a line of ultra-compact, single longitudinal mode (SLM), narrow linewidth, passive q-switch, ns/ps pulsed DPSS lasers. Offering exceptional performance and versatility in a compact form factor, every model is 1:1 interchangeable, regardless of wavelength. The lasers feature pulse widths from 400 ps to 2 ns, pulse energy up to 80 µJ, and repetition rates up to 100 kHz. Available in wavelengths from the UV to the NIR, this series is designed for LIDAR, 3D scanning, LIBS, night vision, and more.

SL-Pico Series

sleek modern dpss laser housing, simple cubic design, black and red with optical fiber & connectorThe SL-Pico series of picosecond supercontinuum lasers is designed to meet the diverse and dynamic needs of cutting-edge research and industrial applications. These supercontinuum white lasers are highly regarded for their wide wavelength range and cost-effectiveness. The SL-Pico offers a spectral range from 410 to 2400 nm, has high power, is very stable, and is capable of delivering power up to 8 W. The SLM versions are mode-locked fiber lasers with a fixed rep. rate, and the SLMV versions have a tunable repetition rate (up to 40 or 200 MHz), ensuring compatibility with a wide range of devices and various applications like fluorescence microscopy, TCSP, hyperspectral imaging, semiconductor inspection, and much more!

SOL Series

simple, compact OEM pulsed laser housing with cooling fan and f-theta lens

The SOL series is the most compact, air-cooled, Q-switched DPSS nanosecond industrial laser solution available with output power up to 40W @ 1064nm, designed for thin film removal, marking, and PCB repair applications. With its excellent beam quality, high peak power, wavelength options (1064, 532 & 355 nm), PRR from single shot up to 200 kHz, optional CW configuration, customization options, and a wide range of add-ons, this series is an excellent solution for OEM integrators, application specialists, and researchers. With attractive pricing (especially volume pricing) and a rugged, compact, lightweight, and easy-to-use single-unit design, the SOL laser is easy to integrate into any system, providing superior operational flexibility and performance/cost ratio.

TLS Series

sleek modern dpss laser housing, simple cubic design, black and redThe TLS series is the broadest continuously optically tunable broadband picosecond laser combining a supercontinuum laser & tunable bandpass filter. Users can tune output power, wavelengths from 410-1700nm by choosing the VIS, IR, SWIR, or a custom configuration, and real-time bandwidth control for TLS-Red (10 or 20nm fixed for TLS-Blue). These picosecond tunable lasers are suitable for various fields that require precision scanning and high output from fluorescence microscopy to time-resolved spectroscopy, such as TCSPC, Hyperspectral imaging, Machine vision, Semiconductors, Sensors, and other applications.

Vento Series

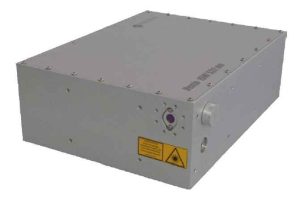

clean, modern, silver colored OEM DPSS Laser housing

The Vento series is a compact and ruggedized sub-nanosecond MOPA laser series, providing fully tailored solutions, whether operating in a clean, scientific laboratory or in harsh industrial machining or airborne LIDAR application environments, requiring a low SWaP configuration. With pulse durations down to 500 ps and repetition rates up to 200 kHz, this laser series produces a high average power of up to 50 W @ 532 nm and up to 100 W @ 1064 nm. Choose from many options including beam expanding & collimating options, low jitter options, air- or water-cooling, an industrial or up to IP68 protected package, and more options, depending on your requirements.

Wedge Series

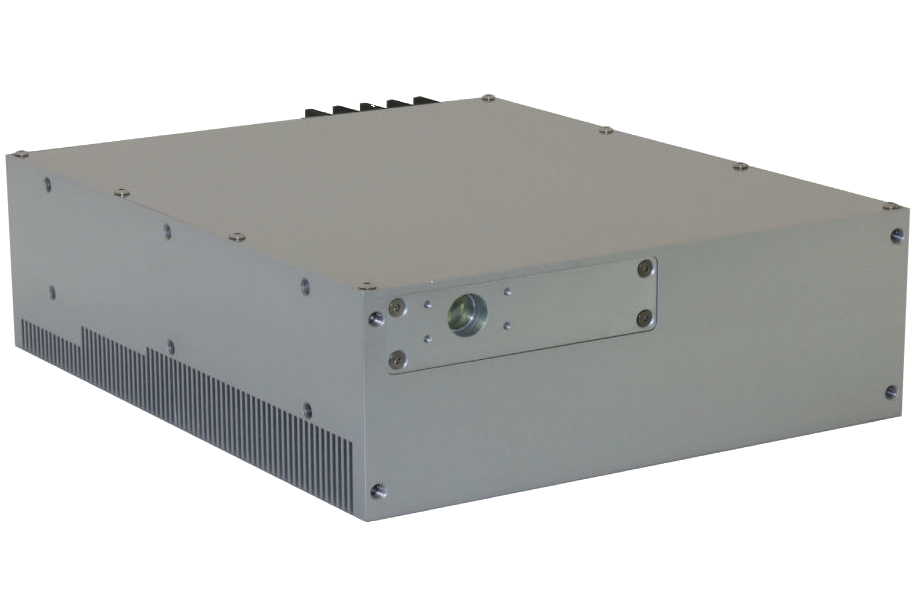

metal pulsed laser housing, gray metal, cooling fins, output port

The Wedge series of DPSS lasers is a rugged industrial solution, designed for seamless integration into OEM micromachining, LIDAR, and LIBS end-user systems. Based on proprietary fast Q-switching technology, this series is compact, sealed, and monolithic, making them insensitive to vibrations & harsh environments. High peak powers, relatively low energy, and low heat generation allow efficient ablation and non-linear interaction. Available from 266 nm to ≈ 3 µm, up to 4 mJ pulse energy @ 1064, and up to 4 MW peak power, the lightweight, air-cooled package benefits LIDAR and aerospace applications, while short pulses provide exact time-of-flight measurements. Many optional add-ons and customization options.
