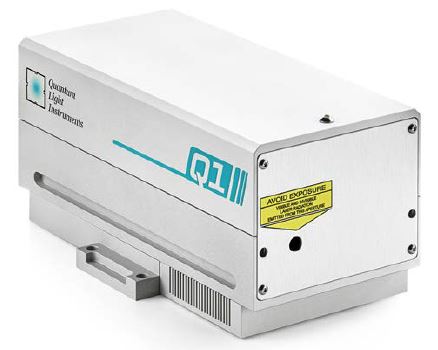

Quantas-Q1-213: High energy, compact, nanosecond, DPSS laser

Get Quote Questions?



Wavelength (nm)

Output power (W)

, , , , , ,

Pulse energy (uJ)

, , , , , , ,

Pulse width

Rep rate

, ,

Q-switch type

Overview of Quantas-Q1-213 – High Energy Air-Cooled Q-Switched Laser

The Quantas-Q1-213 is a high energy q-switched 213nm diode pumped solid state (DPSS) laser from Quantum Light Instruments.   This air-cooled, q-switched series of lasers are designed for a wide range of applications that require high peak power pulses.  Due to a short laser cavity and excellent thermal properties of the Nd:YAG crystal, the Quantas-Q1-213 can deliver pulse energy of 2mJ @ 10Hz. High-speed triggering pulses with RMS jitter < 0.5 ns (in respect to the falling edge of pump diode triggering pulse). Both internal and external triggering makes this laser ideal for a wide range of high-speed applications.  The Quantas-Q1-213 laser is controlled via a built-in Ethernet port with the option to add a Wi-Fi adapter, allowing users to monitor and control laser remotely. Other options include an attachable attenuator for fundamental wavelength, attachable pulse energy monitor, and more.

Quantas-Q1-213 Features:

  • 213nm
  • 2mJ with <10ns pulse width @ 10Hz
  • High peak power pulses
  • Air-cooled
  • High-speed triggering
  • >0.5ns RMS jitter

Quantas-Q1-213 Applications:

  • LIBS
  • LCD Repair
  • Laser Ablation
  • Remote Sensing
  • LiDAR
  • Laser Shock Wave Generation
  • Pulsed Light Deposition
