BK-FL-CW

Fiber Laser, Single mode, 1060-2050nm, up to 100W

Key Features:

  • Standard CW, CW modulated, broadband or narrow linewidth
  • High stability & efficiency
  • Customization & flexibility
  • Compact OEM solutions & turnkey tabletop option

Get help selecting the right configuration for you!

If you do not see exactly what you need, please contact us!

POPULAR CONFIGURATIONS:

Part Number
Part Description
Datasheet

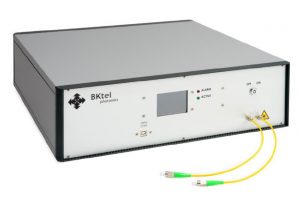

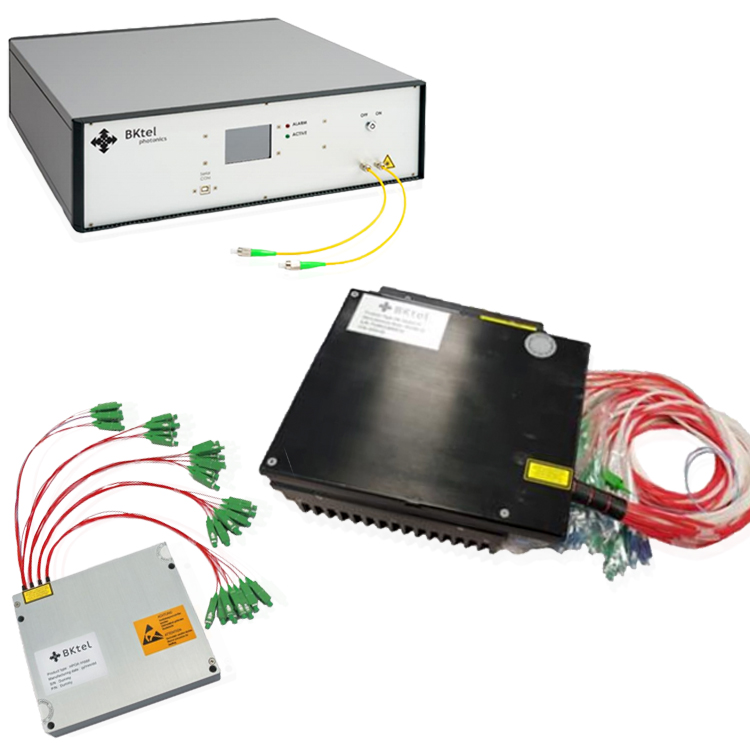

high power Bench Top fiber optical Amplifier THFL-1

CW Fiber Laser, 1060-1080nm, Up to 100W

Get Quote

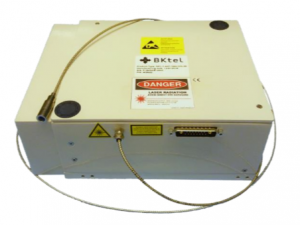

R0Z4-Photo-MFL MFL-1

CW Fiber Laser, 1060-1080nm, Up to 60W

Get Quote

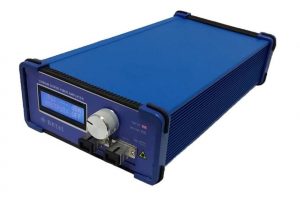

TBS-C benchtop high power fiber laser blue housing TBS-C

CW Fiber Laser, 1529-1565nm, Up to 22dBm, ASE Source

Get Quote
TBS-CL benchtop high power fiber laser blue housing TBS-CL

CW Fiber Laser, 1529-1610nm, Up to 22dBm, ASE Source

Get Quote

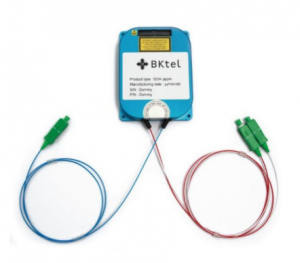

GBS-L Broadband Light Source GBS-L

Broadband CW Fiber Laser, 1529-1610nm, Up to 158mW

Get Quote
GBS-C: Broadband Light Source GBS-C

Broadband CW Fiber Laser, 1529-1610nm, Up to 158mW

Get Quote
LRL2: 1.5um CW High Power Low RIN Fiber Laser LRL2

NLW CW Fiber Laser, 1530-1564nm, Up to 1W

Get Quote

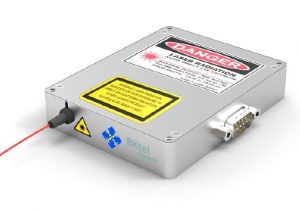

LRL CW High Power Low RIN Fiber Laser LRL

NLW CW Fiber Laser, 1530-1564nm, Up to 1W

Get Quote
HPFL-P: 1550 nm High Power Fiber Laser HPFL-P

CW Fiber Laser, 1535 – 1567nm, Up to 5W

Get Quote

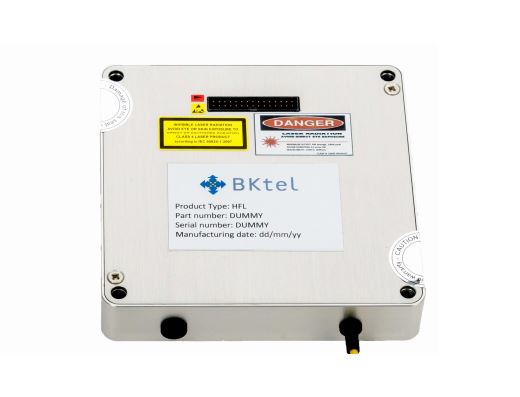

HPFL 1550 nm High Power Fiber Laser HPFL

CW Fiber Laser, 1535 – 1570nm, Up to 5W

Get Quote

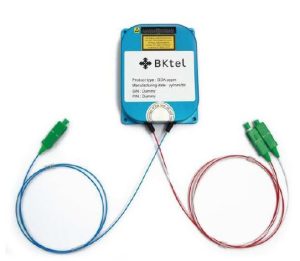

compact fiber laser GFL2

CW Fiber Laser, 1550 – 1567nm, Up to 2W

Get Quote

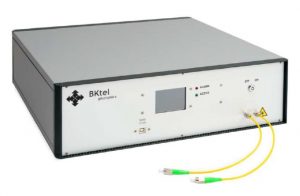

THFL-1.5: 30W CW Fiber Laser benchtop version THFL-1.5

CW Fiber Laser, 1550 – 1567nm, Up to 30W

Get Quote
blue benchtop compact fiber laser TBS-L

CW Fiber Laser, 1570-1610nm, Up to 22dBm, ASE Source

Get Quote
THPOA-2: 2 µm Band, Ultra High Power Optical Amplifier THFL-2

CW Fiber Laser, 1760-2050nm, Up to 40W

Get Quote
MFL-2: 2um CW Fiber Laser MFL-2

CW Fiber Laser, 1760-2050nm, Up to 40W

Get Quote

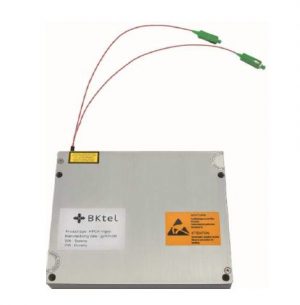

HPFL: CW Erbium Ytterbium Fiber Laser HPFL-2

CW Fiber Laser, 1760-2050nm, Up to 4W

Get Quote

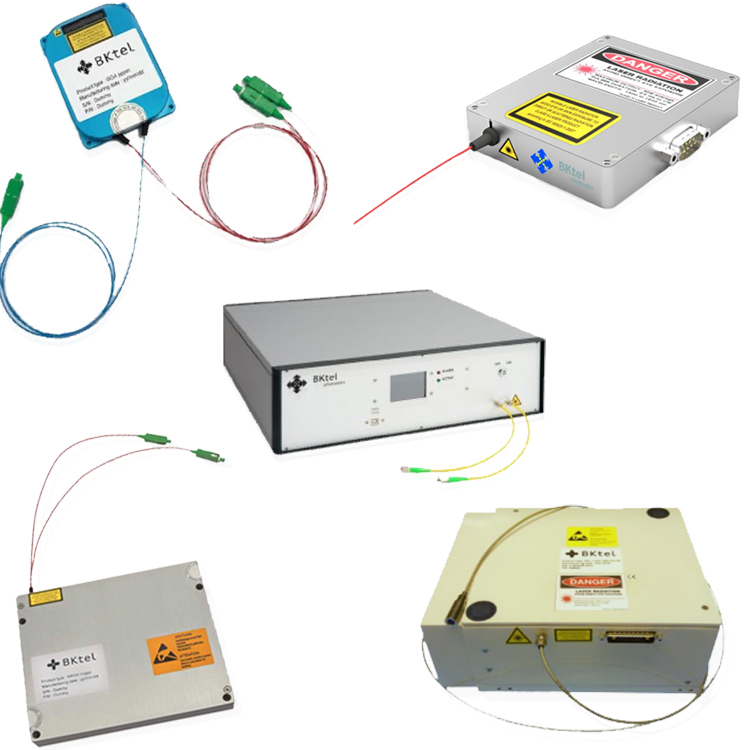

The FL CW/CW Modulated Series is a versatile, high-performance line of continuous-wave (CW) fiber lasers manufactured to Telcordia standards. This series is ideal for various industrial and scientific applications, offering power outputs up to 100W at 1μm, 30W at 1.5μm, and 40W at 2μm. Available in both OEM and turnkey configurations, the series provides users with options like narrow linewidth single-frequency outputs, polarization-maintaining (PM) fibers, C and L-band broadband sources, and high-speed modulation and triggering. The lasers’ flexible, modular design ensures easy integration into diverse environments, with the ability to customize the system to meet specific application requirements, such as material processing, optical metrology, and sensing.

If you don’t see the exact configuration you need, we can work with you to create a custom solution that meets your specific requirements. Our team of experts can help you design and develop a fiber laser that is tailored to your needs.

Your Perfect CW Fiber Laser Configuration Awaits!

1, 1.5, 2 µm CW & CW Modulated Fiber Lasers – Configuration Examples

The 1um, 1.5um, and 2um CW/CW modulated fiber lasers provide high-power, continuous-wave outputs with power tunability ranging from 10%-100%. These lasers are available in both standard and polarization-maintaining (PM) fiber options and come equipped with either FC/APC fiber connectors or other option, including collimating lenses. Our SWIR CW fiber lasers deliver exceptional beam quality, producing a perfect TEM00 output, and offer options for high-speed modulation and triggering for applications requiring precise control. These lasers are suitable for a wide range of industrial and scientific applications, including material processing, optical metrology, and sensing. Power outputs range from 2W to 100W, with multiple wavelength configurations across the 1μm, 1.5μm, and 2μm ranges to fit diverse application needs.

Wavelength (nm) Power Polarization Modulation Feature
GFL2-1.5 1550, 1567, other Up to 2W Random/Linear Compact Module
HPFL 1535-1570 Up to 5W Random/Linear Up to 2kHz Low Power Consumption
HPFL-2 1925-1980 Up to 4W Random Compact Module
HPFL-P 1535-1567 Up to 5W Linear (PER > 20 dB Lower Power Consumption
MFL-1 1060-1080 Up to 60W Random/Linear Up to 2kHz Robust Industrial Design
MFL-2 1760-2050 Up to 40W Random/Linear Up to 2kHz Robust Industrial Design
THFL-1 1060-1080 Up to 100W Random/Linear User-friendly Tabletop Design
THFL-1.5 1550, 1567, other Up to 30W Random/Linear Up to 2kHz User-friendly Tabletop Design
THFL-2 1750-2050 Up to 40W Random/Linear User-friendly Tabletop Design

1.5 µm Narrow Linewidth CW Fiber Lasers – Configuration Examples

The LRL 1.5um narrow linewidth fiber laser series produces highly coherent emission with low Relative Intensity Noise (RIN), making it ideal for long-range coherent LIDAR, wind measurement, pollution detection, and Dial-LIDAR applications. These lasers are Telcordia-compliant and feature a flexible platform for integration based on environmental, size, weight, and power requirements. Offering a linewidth of <10kHz and wavelength drift in the low sub-picometers, the series is available in modular packages with either random or polarization-maintaining (PM) fiber options. The LRL series provides up to 1W of output power at 1550nm with power tunability from 10%-100%, TEM00 beam quality, high-speed modulation, and optional FC/APC connectors or collimating lenses.

Wavelength (nm) Power Polarization Linewidth Feature
LRL 1530-1564 15dBm (32mW) Random/Linear 10kHz Low RIN Noise
LRL-2 1530-1564 Up to 1W Random/Linear 10kHz Low RIN Noise

Let us help choose the best configuration for you!

1, 1.5 & 2 µm ASE Broadband CW Fiber Lasers – Configuration Examples

The 1.5um broadband fiber lasers are non-coherent ASE light sources in the C, L, or C+L bands of the erbium medium, manufactured to Telcordia standards. These highly flexible lasers can be configured to meet various application requirements, including environment, size, weight, and power. Both the GBS and TBS series generate broad ASE spectra, combining the C and L bands, with output power up to 22dBm. Additionally, ASE broadband sources are available in the 1μm (Ytterbium) and 2μm (Thulium) bands. These sources are offered in both module and bench-top formats for integration flexibility.

Wavelength (nm) Power Spectral Density Polarization / PMD (ps) Feature
GBS-C 1529-1565 Up to 22dBm -9 to 0dBm Random Compact MSA Compliant Package
GBS-L 1565-1610 Up to 22dBm -9 to 0dBm Random Compact MSA Compliant Package
TBS-C 1529-1565 Up to 22dBm -9 to 0dBm Random User-Friendly Tabletop Design
TBS-L 1565-1610 Up to 22dBm -9 to 0dBm 0.3 User-Friendly Tabletop Design
TBS-CL 1529-1565 + 1570-1610 Up to 22dBm -9 to 0dBm 0.3 User-Friendly Tabletop Design

FL CW/CW Modulated Series Benefits:

Performance and efficiency:
  • Compact fiber laser sources perfectly suited for LIDAR applications
  • High-quality output and reliability, you can be confident in their performance in even the most demanding situations
  • Continuous improvement in optical performance, efficiency, and reliability of our fiber laser sources
  • You can be sure that you are getting the latest and greatest technology available.
  • Built to the highest standards, ensuring that you get the quality and performance you need for your applications
Versatility:
  • Provide great stability and low power usage, making them ideal for a wide range of applications
  • Whether you need a laser for industrial, scientific, or medical purposes, we have a solution that will work for you.
  • Available in both conductive and air-cooled options, giving you flexibility in how you use and integrate them into your systems.
  • Can be integrated into your existing systems as an OEM component, or we can provide a turnkey system that is ready to use out of the box.
Customization:
  • Wide range of options and configurations for our fiber lasers, allowing you to customize your solution to meet your specific needs
  • Whether you need a particular output wavelength, polarization, or modulation scheme, we can work with you to create a custom solution.
  • Narrow linewidth, single-frequency output, C- and L-band broadband sources, PM fiber options, power tunability, and high-speed triggering and modulation
