BK-FA-CW

Fiber Amplifiers, CW, 1030-2054 nm, -14 to +15 dBm input, up to 40 W output

Key Features:

  • Compact OEM solutions & turnkey tabletop option
  • Narrow linewidth options
  • Low RIN noise options
  • Single or multiple output ports
  • Customization & flexibility

Get help selecting the right configuration for you!

If you do not see exactly what you need, please contact us!

POPULAR CONFIGURATIONS:

Part Number
Part Description
Datasheet

GOA-F : Fixed Gain Optical Amplifier GOA-F

Fiber Amplifier, 1528 – 1564nm, 0.316mW, Fixed Gain, OEM

Get Quote

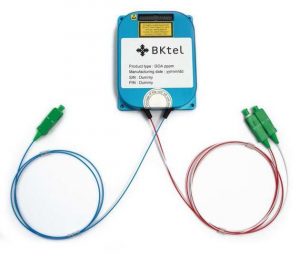

GOA-V : Variable Gain Telecom Optical Amplifier GOA-V

Fiber Amplifier, 1528 – 1564nm, 0.316mW, Variable Gain, Telecom, OEM

Get Quote
GRA-F-B : Raman Pump Module GRA-F

Fiber Amplifier, 1529 – 1563, 500mW, Raman Pump Module, Backward Direction, OEM

Get Quote
GRA-F-B : Raman Pump Module GRA-B

Fiber Amplifier, 1529 – 1563, 500mW, Raman Pump Module, Backward Direction, OEM

Get Quote

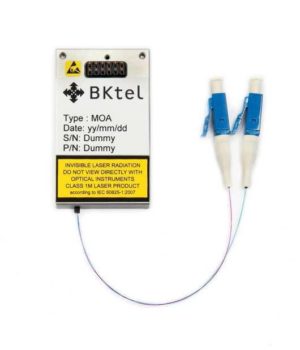

MOA-S120 ultra compact fiber amplifier MOA

Fiber Amplifier, 1529 – 1564nm, 0.05mW, Telecom, OEM

Get Quote
GOA-B : Bidirectional Optical Amplifier GOA-B

Fiber Amplifier, 1530 – 1564nm, 0.05mW, Bidirectional, OEM

Get Quote

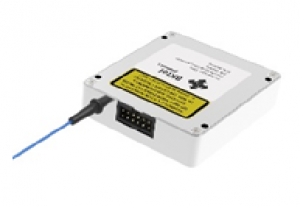

R0Z4-Photo-CGOA3 CGOA3

Fiber Amplifier, 1530 – 1564nm, 0.2mW, OEM

Get Quote
GOA : Optical Amplifier GOA

Fiber Amplifier, 1530 – 1564nm, 1.5W, OEM

Get Quote
ROA1: 1U-Rack Optical Amplifier ROA1

Fiber Amplifier, 1530 – 1564nm, 1.6mW, Long-Haul, Rack mount

Get Quote

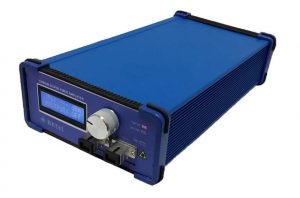

TOA: Bench Top, 1550nm Erbium Doped Optical Fiber Amplifier TOA

Fiber Amplifier, 1530 – 1564nm, 1mW, Turnkey, OEM

Get Quote

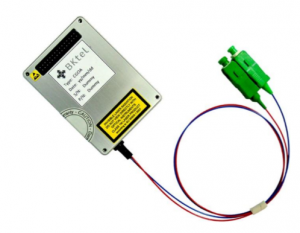

R0Z4-Photo-CGOA CGOA

Fiber Amplifier, 1530 – 1564nm, 1W, OEM

Get Quote
GOA-P : Polarization Maintaining Optical Amplifier GOA-P

Fiber Amplifier, 1530 – 1564nm, 1W, Polarization Maintaining, OEM,

Get Quote

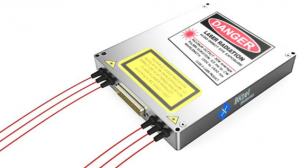

R0Z4-Photo-LRA LRA

Fiber Amplifier, 1530 – 1564nm, 2W, Low RIN, OEM

Get Quote
CGOA2: 1.5um fiber amplifier CGOA2

Fiber Amplifier, 1535 – 1564nm, 1.5W, OEM

Get Quote
HPOA-P: Polarization Maintaining, High Power Optical Amplifier HPOA-P

Fiber Amplifier, 1535 – 1564nm, 5W, Polarization Maintaining, OEM

Get Quote
1.5 micron ultra high power fiber optical amplifier UHPOA-1.5

Fiber Amplifier, 1535 -1564nm, 10W, OEM

Get Quote
UHPOA-P: Polarization Maintaining Ultra-High Power Optical Amplifier UHPOA-P

Fiber Amplifier, 1535 -1564nm, 10W, Polarization Maintaining, OEM

Get Quote

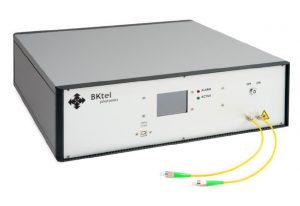

THPOA: 3U / Bench Top High Power Optical Amplifier THPOA

Fiber Amplifier, 1540 -1564nm, 10W, Turnkey

Get Quote

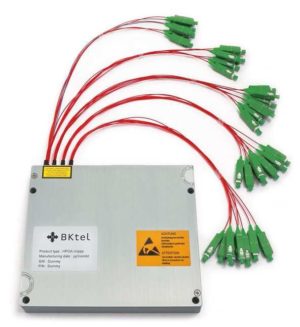

compact Optical Amplifier with multiple fiber outputs HPOA-1.5

Fiber Amplifier, 1540 -1564nm, 5W, OEM

Get Quote
HPOA-IP: Multi-Port, High Power Optical Amplifier with WDM HPOA-IP

Fiber Amplifier, 1545 – 1564nm, ?0.1mW, Polarize Maintaining, Multi Port, Integrated WDM, OEM

Get Quote

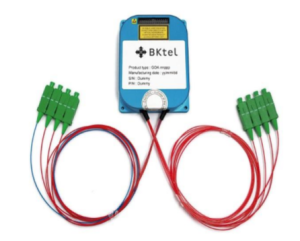

compact fiber amplifier with multiple fiber outputs GOA-M

Fiber Amplifier, 1545 – 1564nm, 0.1mW, Analogue Signal, Multi Port, OEM

Get Quote
compact Optical Amplifier with multiple fiber outputs HPOA-M

Fiber Amplifier, 1545 – 1564nm, 0.25mW, Multi Port, OEM

Get Quote
HPOA-1: 1 µm-Band High Power Optical Amplifier HPOA-SFP

Fiber Amplifier, 1545 – 1564nm, 5W, Single Frequency, OEM

Get Quote
GOA-PL : L-band Polarization Maintaining Optical Amplifier GOA-PL

Fiber Amplifier, 1570 – 1604nm, 0.5mW, L band, Polarization Maintaining, OEM,

Get Quote
GOA-LF : Fixed Gain, L-Band Optical Amplifier GOA-LF

Fiber Amplifier, 1570 – 1604nm, 1W, Fixed Gain, L Band, OEM

Get Quote
GOA-LV : Variable Gain, L-Band Optical Amplifier GOA-LV

Fiber Amplifier, 1570 – 1604nm, 1W, Variable Gain, L Band, OEM

Get Quote
HPOA-1: 1 µm-Band High Power Optical Amplifier HPOA-L

Fiber Amplifier, 1570 – 1604nm, 5W, L band, OEM

Get Quote
UHPOA-L: L-Band Ultra High Power Optical Amplifier UHPOA-L

Fiber Amplifier, 1570 -1605nm, 10W, L Band, OEM

Get Quote
UHPOA-1P: 1 µm Band Ultra High Power PM Optical Amplifier UHPOA-1P

Fiber Amplifier, 1030-1054nm, Up to 40W

Get Quote
R0Z4-Photo-HPOA HPOA-1

Fiber Amplifier, 1030-1054nm, Up to 40W

Get Quote
ultra high power optical amplifier UHPOA-1

Fiber Amplifier, 1030-1054nm, Up to 40W

Get Quote
THPOA-1: 1 µm Band, Ultra High Power Optical Amplifier THPOA-1

Fiber Amplifier, 1030-1054nm, Up to 40W

Get Quote
UHPOA-2P: 2 µm Band, PM Ultra High Power Optical Amplifier UHPOA-2P

Fiber Amplifier, 1750-2054nm, Up to 10W

Get Quote
THPOA-2: 2 µm Band, Ultra High Power Optical Amplifier THPOA-2

Fiber Amplifier, 1750-2054nm, Up to 10W

Get Quote

The FA series offers endless options with their configurable and customizable fiber amplifiers. Available in both OEM and Turnkey formats, our 1, 1.5, and 2um fiber amplifiers are manufactured to Telcordia standards and can be customized to meet your application requirements. With output powers of up to >46dBm (40W) and options for linear or random polarization, narrow linewidth, low noise, input and output monitoring, fixed or variable gain, single- or multi-port output, and much more, our fiber amplifiers are ideal solutions for applications such as space-based & free-space communication, optical transport, FTTH & CATV, RF video overlay, and pulsed amplification.

These fiber amplifiers are manufactured to Telcordia standards, with output powers up to +46dBm (40W), and they can be modified to meet your application requirements. Often, the technical requirements for amplifiers are defined by the integration requirements, including but not limited to, environment, size, weight, and power. The highly flexible platform of these fiber amplifiers allows users the opportunity to configure the laser to best suite their application needs.

The FA series is available with single or multiple output ports terminated with your choice of industry-standard connectors, including SC/APC and FC/APC.  A wide range of packages and power levels are available in either OEM or turnkey configurations. The built-in optical isolation of 30dBM protects upstream components from dangerous back reflections. The optical characteristics of these fiber amplifiers, combined with the compact form factor, low power consumption, and industry-standard RS232 communication interface, make it the ideal OEM amplifier for demanding industrial, commercial and scientific applications.

If you don’t see the exact configuration you need, we can work with you to create a custom solution that meets your specific requirements. Our team of experts can help you design and develop a fiber laser that is tailored to your needs.

Your Perfect CW Fiber Amplifier Configuration Awaits!

1 µm BK-FA-CW Fiber Amplifier – Configuration Examples

Wavelength (nm) Power Polarization / PMD (ps) Connector Version
UHPOA-1 1030 / 1053 / 1064 … 1100 Up to 10W Linear (PER 23 dB) SC/APC, FC/APC, other OEM package
UHPOA-1P 1030 / 1053 / 1064 … 1100 Up to 10W 0.5 SC/APC, FC/APC, other OEM package
HPOA-1 1030 / 1053 / 1064 … 1100 Up to 5W 0.5 FC/APC, Collimator, other Compact OEM package
THPOA-1 1030 / 1053 / 1064 … 1100 Up to 40W Random/Linear SC/APC, FC/APC, other User-friendly tabletop

1.5 µm BK-FA-CW Fiber Amplifier – Configuration Examples

Wavelength (nm) Power Polarization / PMD (ps) Feature
HPOA-SFP 1545-1565 Up to 5W Linear (PER 23 dB) Single-Frequency
HPOA-IP 1545-1565 Varies / per port 0.5 Multi-port, Wavelength Division Multiplexing
GRA-B 1529-1563 Up to 700mW 0.6 Raman Pump
GOA-LV 1570-1605 Up to 1W 0.5 Variable Gain
GOA-F 1528-1567 Up to 316mW 0.5 Fixed Gain

2 µm BK-FA-CW Fiber Amplifier – Configuration Examples

Wavelength (nm) Power Polarization / PMD (ps) Connector Version
UHPOA-2P 1750-2050 Up to 10W Linear (PER > 18 dBm) SC/APC, FC/APC, other OEM package
THPOA-2 1750-2050 Up to 10W Random/Linear SC/APC, FC/APC, Collimator User-friendly tabletop

Let us help choose the best configuration for you!

BK-FA-CW Fiber Amplifier Benefits:

High Power Output:
  • Delivers up to 40W of continuous-wave (CW) output power, ideal for demanding applications like free-space communication and optical transport.
Low Noise Performance:
  • With low RIN (Relative Intensity Noise) and narrow linewidth options, these amplifiers ensure high signal integrity and stable operation for sensitive applications.
Customizable and Flexible:
  • Offers extensive customization options, including polarization (linear or random), gain settings (fixed or variable), and input/output monitoring to match specific operational requirements.
Multiple Output Configurations:
  • Available with single or multiple output ports, allowing for versatile use in various systems, including multi-port and Wavelength Division Multiplexing (WDM) applications.
Versatile Package Options:
  • Available in OEM or turnkey formats with industry-standard connectors (SC/APC, FC/APC) and collimator options, ensuring easy integration into different systems.
Robust Performance Across Wavelengths:
  • Supports a wide wavelength range from 1030nm to 2054nm, catering to diverse applications in the 1μm, 1.5μm, and 2μm spectral ranges.
Compact and Efficient Design:
  • Compact form factor with low power consumption, making it suitable for space-constrained environments and energy-efficient installations.
