DPSS Laser, ns Pulsed, 266 nm, up to 800 mW, up to 80 uJ, 2 ns to 6 ns
- Up to 800mW of average power
- Up to 80µJ pulse energy
- 2 to 6ns pulse width
- Single shot to 50kHz
- MOPA configurations
- Monolithic design
- Air Cooling
- Low Waste Heat
There are many configurations and options available. If you do not see exactly what you need below, please contact us!
Need Quantities? Have a question?

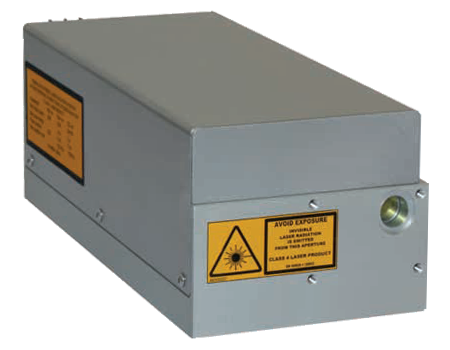

The Onda series is a DPSS nanosecond OEM laser platform designed for high-end applications requiring excellent beam quality and high peak power in materials such as metals, glass, plastics, and various delicate and hard materials. This compact and easy to use laser series is available in wavelengths of 266, 355, 532, and 1064nm, with an extended operating temperature range and superior performance to cost ratio. The Onda series’ internal optical layout and accurate temperature management enable high output energies without compromising the lifetime of the THG and FHG stages.
- High energy pulsed laser:
- High peak power and excellent beam quality, allowing for precise and efficient material processing.
- Compactness and ease of use:
- Designed to be integrated easily into existing systems, saving time and effort during setup and operation.
- Optional Cbox controller:
- The proprietary GUI software interface simplifies remote control and monitoring of the laser, making it easier to optimize performance and troubleshoot any issues.
- Beam expanding and collimating optics:
- Includes optics to expand or collimate the laser beam, providing more control and flexibility in material processing applications.
- Extended operating temperature range:
- Can operate in a wide range of temperatures, making it suitable for use in diverse environments.
The Onda series offers superior performance to cost ratio for high-end applications that require excellent beam quality and high peak power. Its compact and easy-to-use design allows for straightforward integration, and the optional Cbox controller with a proprietary GUI software interface simplifies remote control and monitoring of the laser. With an extended operating temperature range and available wavelengths of 266, 355, 532, and 1064nm, the Onda series is an ideal choice for a wide range of applications.
If you have any questions or need more information, please contact us.
- Beam Expanding and Collimating Optics
- Fiber coupling
- Low jitter option
- Extended operating temperature range
- Pulse Energy Modulation
- Circular Polarization
- Monitoring Photodiode
- Red Aiming Beam
- Remote Control Box and software interface
- AC-DC Power Supply
- Higher energy MOPA options
