Quantas-Q-SPARK-532: High energy, compact, nanosecond, DPSS laser

Get Quote Ask Engineer

Specifications

series

wavelength

pulse energy

output power

rep rate

pulse width

q-switch type

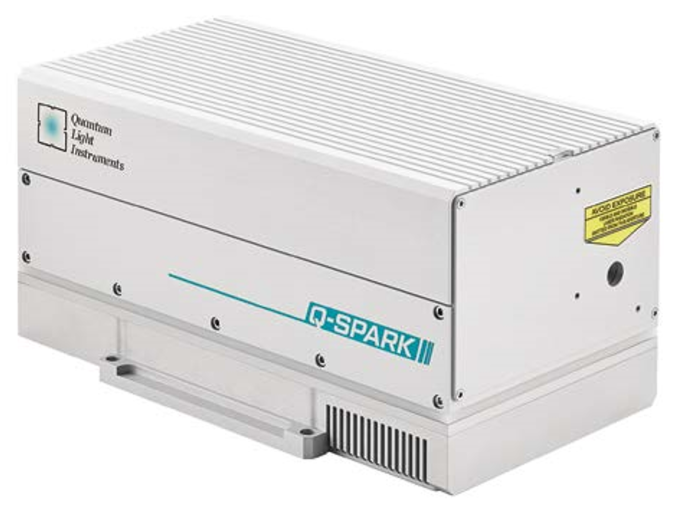

Overview of Quantas-Q-SPARK-532: Air-Cooled 532nm DPSS Laser

Quantas-Q-SPARK-532 is a 532nm q-switched diode pumped solid state (DPSS) laser from Quantum Light Instruments available with harmonic options.   This air-cooled, q-switched series of lasers are designed for a wide range of applications that require high peak power pulses.  Due to a short laser cavity and excellent thermal properties of Nd:YAG crystal the Q-SPARK-532 delivers up to 2.5mJ, with <800ps pulses, at 10Hz with passive q-switching, and up to 5mJ, with <1.5ns pulses at 20Hz with active q-switching.  Offers high-speed triggering pulses with 1 us RMS jitter with respect to Q-switch triggering edge of the pulse and both internal and external triggering make this laser ideal for a wide range of high-speed applications.  The Quantas-Q-SPARK-532 is controlled via a built-in Ethernet port with the option to add Wi-Fi adapter, allowing users to monitor and control laser remotely.

All of these features make the Q-SPARK laser series a robust tool for applications like Laser-Induced Breakdown Spectroscopy (LIBS), remote sensing, LIDAR, semiconductor failure analysis, laser ablation, and many others.
