1um CW/CW Modulated Fiber Lasers
Fiber Laser, CW/CW Modulated, 1060-1080nm, Up to 60W
- Compact OEM solutions and turnkey option
- Power tunability from 10 to 100%
- High Powers: up to 100W
- CW and CW Modulated operation
- Conductive and Air-cooling
- Robust Design
- Extended Temperature range options
- Low power consumption
There are many configurations and options available. If you do not see exactly what you need below, please contact us!
Need Quantities? Use Get Quote to get volume pricing!
RPMC’s 1um series of CW/CW modulated fiber lasers provide up to 100 W of output power from a single-mode fiber-optic and are available in OEM and turnkey configurations. Our fiber lasers are manufactured to Telcordia standards and can be modified to meet your applications requirements. Often, with laser based applications, the technical requirements for the laser are defined by the integration requirements, including but not limited to, environment, size, weight, and power. The highly flexible platform of these fiber lasers allows users the opportunity to configure the laser to best suite their application needs. The 1um CW fiber lasers offer features such as power tunability, random or polarization-maintaining (PM) fibers, and various fiber output and collimation options. The flexible platform of the fiber lasers allows users to choose from a range of factory-set wavelengths to best suit their application needs. The robust industrial design and near-perfect TEM<sub>00</sub> output beam, with high-speed triggering and modulation features, make these 1um fiber lasers the perfect solution for industrial and scientific applications, such as material processing and optical metrology.

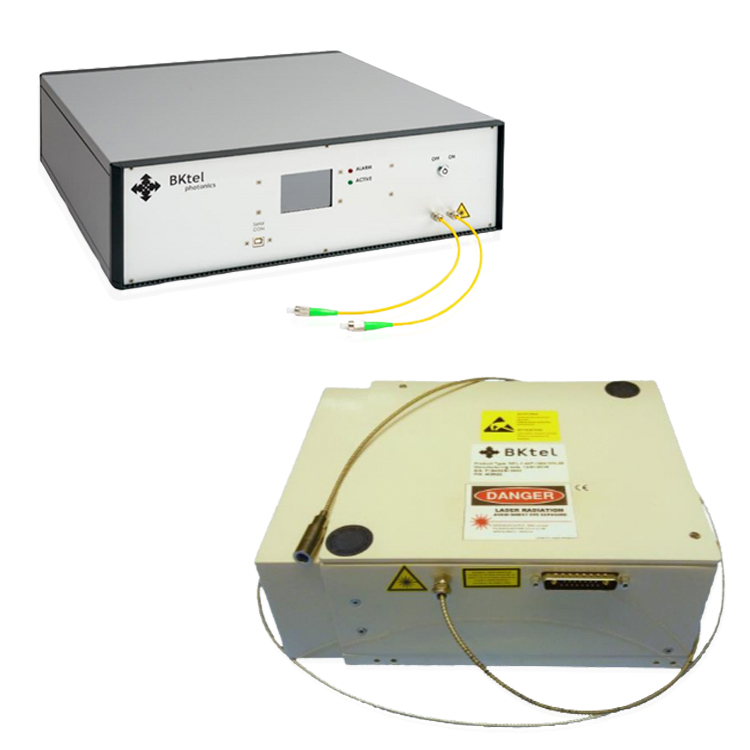

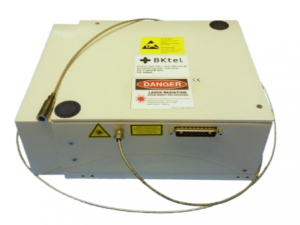

MFL Series – The MFL series is a high-power, continuous-wave (CW) fiber laser, providing up to 20W of output power @ 1.5µm, 40W @ 2µm, or 60W @ 1µm, from a single-mode fiber. This series offers power tunability ranging from 10%-100%, is available with standard or polarization-maintaining fiber with FC/APC fiber or an optional collimating lens, produces a perfect TEM00 beam, and offers high-speed triggering and modulation.

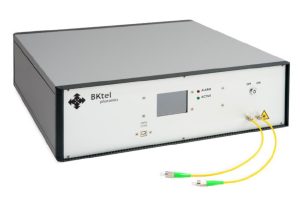

THFL Series – The THFL series is a high-power, continuous-wave (CW) fiber laser, providing up to 30W of output power @ 1550nm, 40W @ 2µm, or 100W @ 1064nm, from a single-mode fiber. This series offers power tunability ranging from 10%-100%, is available with standard or polarization-maintaining fiber with FC/APC fiber or an optional collimating lens, produces a perfect TEM00 beam, and offers high-speed triggering and modulation.
The FL CW/CW Modulated Series offers a variety of standard and custom CW fiber laser options. Available in both OEM and Turnkey formats, our 1um, 1.5um and 2um fiber lasers are manufactured to Telcordia standards and can be modified to meet your applications requirements. With available powers up to 100W at 1um, 30W at 1.5um and 40W at 2um, our CW fiber lasers are suitable for a wide range of applications. Available options and configurations include narrow linewidth, single frequency outputs, C and L-band broadband sources, PM fiber options, power tunability and high-speed trig./mod. Customized configurations are available upon request.
- Performance and efficiency:
- Compact fiber laser sources perfectly suited for LIDAR applications
- High-quality output and reliability, you can be confident in their performance in even the most demanding situations.
- Continuous improvement in optical performance, efficiency, and reliability of our fiber laser sources
- You can be sure that you are getting the latest and greatest technology available.
- Built to the highest standards, ensuring that you get the quality and performance you need for your applications.
- Provide great stability and low power usage, making them ideal for a wide range of applications
- Whether you need a laser for industrial, scientific, or medical purposes, we have a solution that will work for you.
- Available in both conductive and air-cooled options, giving you flexibility in how you use and integrate them into your systems.
- Can be integrated into your existing systems as an OEM component, or we can provide a turnkey system that is ready to use out of the box.
- Wide range of options and configurations for our fiber lasers, allowing you to customize your solution to meet your specific needs
- Whether you need a particular output wavelength, polarization, or modulation scheme, we can work with you to create a custom solution.
- Narrow linewidth, single-frequency output, C- and L-band broadband sources, PM fiber options, power tunability, and high-speed triggering and modulation
If you don’t see the exact configuration you need in our standard product line, we can work with you to create a custom solution that meets your specific requirements. Our team of experts can help you design and develop a fiber laser that is tailored to your needs.
If you have any questions or need more information, please contact us.
|Output power (W)|
