1.5um CW/CW Modulated Fiber Lasers

Fiber Laser, CW/CW Modulated, 1529-1610nm, Up to 30W

Key Features:

  • Compact OEM solutions and turnkey option
  • Power tunability from 10 to 100%
  • High Powers: up to 100W
  • CW and CW Modulated operation
  • Air-cooling
  • Robust Design
  • Extended Temperature range options
  • Low power consumption



There are many configurations and options available. If you do not see exactly what you need below, please contact us!

Need Quantities?  Use Get Quote to get volume pricing!

POPULAR CONFIGURATIONS:


Part Number
Part Description
Datasheet
Price
Lead Time

GFL2

1.5um CW Fiber Lasers, 1550 – 1567nm, Up to 2W



12+ weeks

Get Quote
HPFL

1.5um CW Fiber Lasers, 1535 – 1570nm, Up to 5W



12+ weeks

Get Quote
HPFL-P

1.5um CW Fiber Lasers, 1535 – 1567nm, Up to 5W



12+ weeks

Get Quote
THFL-1.5

1.5um CW Fiber Lasers, 1550 – 1567nm, Up to 30W



12+ weeks

Get Quote
TBS-C

1.5um CW Fiber Lasers, 1529-1565nm, Up to 22dBm, ASE Source



12+ weeks

Get Quote
TBS-CL

1.5um CW Fiber Lasers, 1529-1610nm, Up to 22dBm, ASE Source



12+ weeks

Get Quote
TBS-L

1.5um CW Fiber Lasers, 1570-1610nm, Up to 22dBm, ASE Source



12+ weeks

Get Quote

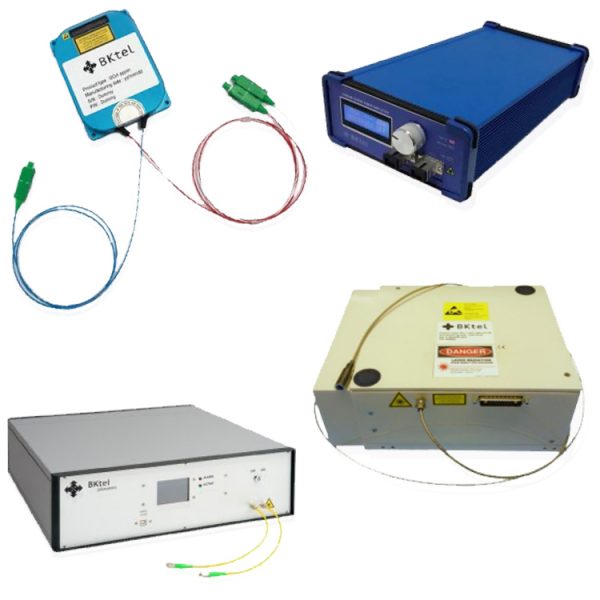

RPMC’s 1.5um series of CW/CW modulated fiber lasers provide up to 30 W of output power from a single-mode fiber-optic and are available in OEM and turnkey configurations. Our fiber lasers are manufactured to Telcordia standards and can be modified to meet your applications requirements. Often, with laser based applications, the technical requirements for the laser are defined by the integration requirements, including but not limited to, environment, size, weight, and power. The highly flexible platform of these fiber lasers allows users the opportunity to configure the laser to best suite their application needs. The 1.5um CW fiber lasers offer features such as power tunability, random or polarization-maintaining (PM) fibers, and various fiber output and collimation options. The flexible platform of the fiber lasers allows users to choose from a range of factory-set wavelengths to best suit their application needs. The robust industrial design and near-perfect TEM­00 output beam, with high-speed triggering and modulation features, make these 1um fiber lasers the perfect solution for industrial and scientific applications, such as material processing and optical metrology.

GFL Series – The GFL series is a 1550nm, high-power, continuous-wave (CW) fiber laser, providing up to 2W of output power. This series offers power tunability ranging from 10%-100%, is available with standard or polarization-maintaining fiber with FC/APC fiber or an optional collimating lens, produces a perfect TEM00 beam, and offers high-speed triggering and modulation.

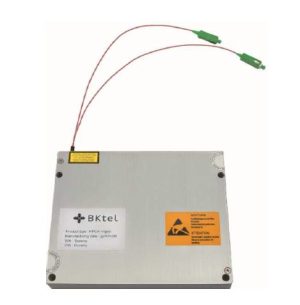

HPFL Series – The HPFL series is a high-power, continuous-wave (CW) fiber laser, providing up to 5W of output power @ 1.5µm, or 4W @ 2µm, from a single-mode fiber. This series offers power tunability ranging from 10%-100%, is available with standard or polarization-maintaining fiber with FC/APC fiber or an optional collimating lens, produces a perfect TEM00 beam, and offers high-speed triggering and modulation.

MFL Series – The MFL series is a high-power, continuous-wave (CW) fiber laser, providing up to 20W of output power @ 1.5µm, 40W @ 2µm, or 60W @ 1µm, from a single-mode fiber. This series offers power tunability ranging from 10%-100%, is available with standard or polarization-maintaining fiber with FC/APC fiber or an optional collimating lens, produces a perfect TEM00 beam, and offers high-speed triggering and modulation.

TBS Series – The TBS series of table top fiber lasers is a Broad Band Source generating a non-coherent and broad ASE spectrum that combines the C and L-Band of the erbium with up to 22dBm of output power. ASE Broadband Sources are also available in the 1 µm band of the Ytterbium and the 2 µm band of the Thulium. All our Broad Band Sources are proposed in module format or in a Bench Top configuration.

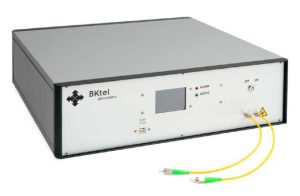

THFL Series – The THFL series is a high-power, continuous-wave (CW) fiber laser, providing up to 30W of output power @ 1550nm, 40W @ 2µm, or 100W @ 1064nm, from a single-mode fiber. This series offers power tunability ranging from 10%-100%, is available with standard or polarization-maintaining fiber with FC/APC fiber or an optional collimating lens, produces a perfect TEM00 beam, and offers high-speed triggering and modulation.



Type

Wavelength (nm)

Output power (W)

, ,

Mode

Output

,

How can we help you?

Talk to one of our experienced product managers today!

Contact us

CW Lasers FAQs
How do I align my optical system?

Laser alignment can be a challenging task, but aligning a laser beam doesn’t have to be as complicated as it might seem with the right optical alignment tools and proper laser alignment techniques. Multiple optical alignment techniques have been developed over the years, utilized by technicians and engineers to simplify the alignment process. With the development of these universal laser beam alignment methods, along with some laser alignment tips and tricks, you don’t need to be a laser expert to perform your alignments with relative ease, ensuring your laser beam path is right where you want it to be and your beam is on target every time. Read our article, titled “Laser Alignment: HeNe Lasers, Methods, and Helpful Tips” to get the knowledge and advice you need for proper optical beam path alignment utilizing HeNe Lasers. Get more information from our Lasers 101, Blogs, Whitepapers, FAQs, and Press Release pages in our Knowledge Center!

How do I align my optical system?

Laser alignment can be a challenging task, but aligning a laser beam doesn’t have to be as complicated as it might seem with the right optical alignment tools and proper laser alignment techniques. Multiple optical alignment techniques have been developed over the years, utilized by technicians and engineers to simplify the alignment process. With the development of these universal laser beam alignment methods, along with some laser alignment tips and tricks, you don’t need to be a laser expert to perform your alignments with relative ease, ensuring your laser beam path is right where you want it to be and your beam is on target every time.

Should I choose multimode or single-mode for Raman spectroscopy?

On the surface, this seems like a simple question since Raman is a nonlinear optical effect and therefore the tighter the beam can be focused the higher the conversion efficiency.  Seemingly a single-mode laser would be preferable, but in practice there are other factors that can complicate the situation. The first question you should ask yourself when considering which type of laser to choose is whether you are doing microscopy or bulk sampling.  If the answer to that question is microscopy, then you immediately should go with a single mode laser.  Since the goal of any microscopy system is to produce the highest resolution image possible, the number one consideration should be how tightly can the laser beam be focused down. However, there are several other considerations when choosing between multimode and single-mode. Learn which is best for you in this article: “Multimode vs Single-Mode Lasers for Raman Spectroscopy.” Get more information from our Lasers 101, Blogs, Whitepapers, FAQs, and Press Release pages in our Knowledge Center!

Should I choose multimode or single-mode for Raman spectroscopy?

On the surface, this seems like a simple question since Raman is a nonlinear optical effect and therefore the tighter the beam can be focused the higher the conversion efficiency.  Seemingly a single-mode laser would be preferable, but in practice there are other factors that can complicate the situation. The first question you should ask yourself when considering which type of laser to choose is whether you are doing microscopy or bulk sampling.  If the answer to that question is microscopy, then you immediately should go with a single mode laser.  Since the goal of any microscopy system is to produce the highest resolution image possible, the number one consideration should be how tightly can the laser beam be focused down.

What is a CW Laser?

A CW or continuous-wave laser is any laser with a continuous flow of pump energy. It emits a constant stream of radiation, as opposed to a q-switched or mode-locked pulsed laser with a pulsed output beam. A laser is typically defined as having a pulse width greater than 250 ms. The first CW laser was a helium-neon (HeNe) gas laser, developed in 1960, which you can read more about in this blog “HeNe Lasers: Bright Past, Brighter Future.” If you want to read more about the types of CW Lasers we offer, check out the Overview of CW Lasers section on our Lasers 101 Page!

What is a CW Laser?

A CW or continuous-wave laser is any laser with a continuous flow of pump energy. It emits a constant stream of radiation, as opposed to a q-switched or mode-locked pulsed laser with a pulsed output beam. A laser is typically defined as having a pulse width greater than 250 ms. The first CW laser was a helium-neon (HeNe) gas laser, developed in 1960.

What is the best laser for optical surface flatness testing?

It is essential that the laser exhibit a high level of spectral stability, ensuring that any changes in the interference pattern are caused by features in the sample and not originating from the laser beam. In addition to spectral stability, high beam pointing stability ensures consistent measurements by mitigating any beam position drift concerning the position of the sample. Lasers with longer coherence lengths, and subsequently narrower linewidths, play an important role in determining the resolution of the measurement, as well as consideration of the wavelength used. Exhibiting both single longitudinal mode and single spatial mode has excellent benefits. To get more details on preferred laser sources for interferometry in this article: “Stable, Narrow Linewidth, CW DPSS Lasers for Precision Interferometry.” Get more information from our Lasers 101, Blogs, Whitepapers, FAQs, and Press Release pages in our Knowledge Center!

What is the best laser for optical surface flatness testing?

It is essential that the laser exhibit a high level of spectral stability, ensuring that any changes in the interference pattern are caused by features in the sample and not originating from the laser beam. In addition to spectral stability, high beam pointing stability ensures consistent measurements by mitigating any beam position drift concerning the position of the sample. Lasers with longer coherence lengths, and subsequently narrower linewidths, play an important role in determining the resolution of the measurement, as well as consideration of the wavelength used. Exhibiting both single longitudinal mode and single spatial mode has excellent benefits.

What type of laser do I need for confocal microscopy?

The short answer is: You have some flexibility, but the laser source should be PM fiber-coupled and have a low noise, TEM00 beam mode. The excitation bandwidth of the fluorophores used must overlap with the laser wavelength, as various fluorophores need different wavelengths. So, you may require multiple lasers, which means you’ve got a beam combining alignment challenge to tackle. One way to avoid this is through the convenience of Multi-Wavelength Beam Combiners. If you want to learn more on the subject of confocal fluorescence microscopy, ideal laser sources, and the benefits of beam combiners, check out this white paper: “Multi-Wavelength Laser Sources for Multi-Color Fluorescence Microscopy.” Get more information from our Lasers 101, Blogs, Whitepapers, FAQs, and Press Release pages in our Knowledge Center!

What type of laser do I need for confocal microscopy?

The short answer is: You have some flexibility, but the laser source should be PM fiber-coupled and have a low noise, TEM00 beam mode. The excitation bandwidth of the fluorophores used must overlap with the laser wavelength, as various fluorophores need different wavelengths. So, you may require multiple lasers, which means you’ve got a beam combining alignment challenge to tackle. One way to avoid this is through the convenience of Multi-Wavelength Beam Combiners.

What type of laser is best for Doppler LIDAR?

Various LIDAR signal methods for measuring velocity have one critical requirement in common, the need for precise control over laser frequency. While a wide variety of single-frequency lasers have been used in Doppler LIDAR research, the industry as a whole has adopted single-frequency fiber lasers as the ideal light source. Fiber lasers have several advantages over traditional DPSS lasers, all of which derive from the geometry of the fiber optic itself, namely the innate ability to have an extremely long single-mode optical cavity. This geometry allows for the production of either extremely high-power, single-mode lasers producing unprecedented brightness, or extremely narrow band lasers, with near perfect single-frequency output. If you want to learn more about Doppler LIDAR, the critical considerations involved, and ideal laser sources, check out this whitepaper: “Single-Frequency Fiber Lasers for Doppler LIDAR.” Get more information from our Lasers 101, Blogs, Whitepapers, FAQs, and Press Release pages in our Knowledge Center!

What type of laser is best for Doppler LIDAR?

Various LIDAR signal methods for measuring velocity have one critical requirement in common, the need for precise control over laser frequency. While a wide variety of single-frequency lasers have been used in Doppler LIDAR research, the industry as a whole has adopted single-frequency fiber lasers as the ideal light source. Fiber lasers have several advantages over traditional DPSS lasers, all of which derive from the geometry of the fiber optic itself, namely the innate ability to have an extremely long single-mode optical cavity. This geometry allows for the production of either extremely high-power, single-mode lasers producing unprecedented brightness, or extremely narrow band lasers, with near perfect single-frequency output.

What’s the difference between single transverse mode & single longitudinal mode?

Within the laser community, one of the most overused and often miscommunicated terms is the phrase “single mode.”  This is because a laser beam when traveling through air takes up a three-dimensional volume in space similar to that of a cylinder; and just as with a cylinder, a laser beam can be divided into independent coordinates each with their own mode structure.  For a cylinder we would call these the length and the cross-section, but as shown in the figure below for a laser beam, we define these as the transverse electromagnetic (TEM) plane and the longitudinal axis.   Both sets of modes are fundamental to the laser beam’s properties, since the TEM modes determine the spatial distribution of the laser beams intensity, and the longitudinal modes determine the spectral properties of the laser.  As a result, when a laser is described as being “single-mode” first you need to make sure that you truly understand which mode is being referred to.  Meaning that you must know if the laser is single transverse mode, single longitudinal mode, or both. Get all the information you need in this article: “What is Single Longitudinal Mode?” Get more information from our Lasers 101, Blogs, Whitepapers, FAQs, and Press Release pages in our Knowledge Center!

What’s the difference between single transverse mode & single longitudinal mode?

Within the laser community, one of the most overused and often miscommunicated terms is the phrase “single mode.”  This is because a laser beam when traveling through air takes up a three-dimensional volume in space similar to that of a cylinder; and just as with a cylinder, a laser beam can be divided into independent coordinates each with their own mode structure.  For a cylinder we would call these the length and the cross-section, but as shown in the figure below for a laser beam, we define these as the transverse electromagnetic (TEM) plane and the longitudinal axis.   Both sets of modes are fundamental to the laser beam’s properties, since the TEM modes determine the spatial distribution of the laser beams intensity, and the longitudinal modes determine the spectral properties of the laser.  As a result, when a laser is described as being “single-mode” first you need to make sure that you truly understand which mode is being referred to.  Meaning that you must know if the laser is single transverse mode, single longitudinal mode, or both.
