MicroMake 532

Micromachining System, DPSS, ns/ps,  532 nm

Key Features:

  • Ablation and cutting of programmable arbitrary shapes
  • Live imaging of the processed samples
  • Suitable for a vast range of materials
  • 1 mm standard processing area
  • Optional XYZ translation stage
  • Embedded illumination unit
  • 532 nm ns and ps lasers
  • Down to 2 μm spot size
  • 3D direct microstructuring
  • Precision surface texturing



There are many configurations and options available. If you do not see exactly what you need below, please contact us!

POPULAR CONFIGURATIONS:


Part Number
Part Description
Datasheet
Price
Lead Time

MicroMake: Micromachining Laser System MicroMake 532

Machining System, 532nm, 1000 W, 1kHz



12+ weeks

Get Quote
MicroMake: Micromachining Laser System MicroMake 532 Plus

Machining System, 532nm, 35000 W, 10-100kHz



12+ weeks

Get Quote

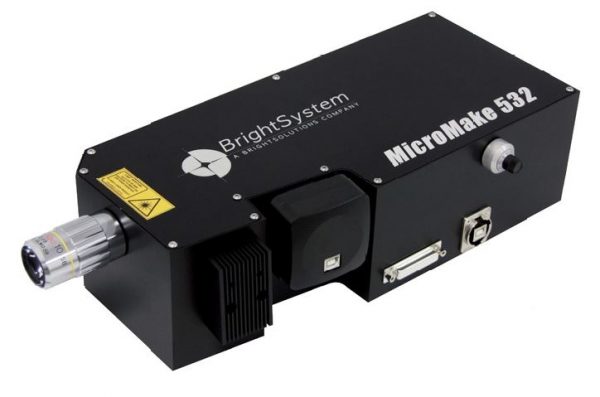

The MicroMake 532 from RPMC is a completely integrated system; containing a compact micromachining laser, a high-quality video microscope, and control software all in one unit.   Due to its monolithic system design, it can be easily set up and configured by technicians and operators, without the need for an on-site electro-mechanical engineer.  The MicroMake’s 532 user-friendly and intuitive graphical user interface control software allows for the design of any arbitrary shape to be applied as a cutting shape on the work-piece, making it an extremely versatile laser precision tool.  One of the most important features of this product is the embedded video microscope that allows the user to align the target in real-time and also monitor the ablation process.

At the core of the MicroMake is a sub-nanosecond pulsed Nd:YAG laser offered at either the second or fourth harmonic (532 nm and 266 nm) and a 10x microscope objective.  Both wavelengths are available in the standard and “Plus” configuration which offers both enhanced peak power and pulse repetition rate.   As a result, the “Plus” configuration is capable of much higher linear processing speeds, though this does come with a slight decrease in spatial resolution.  The MicroMake 532 is capable of processing up to 5 mm/s with a 4.5-micron resolution, and the MicroMake Plus 532 can process up to 100mm/s with 5-micron resolution.

MicroMake Options:

  • High resolution version (HR)
  • Circular polarization on the workpiece
  • High speed/high resolution USB camera
  • Z manual or motorized stage – 50 mm Z travel
  • XY manual or motorized stage – 150 mm XY travel
  • OEM version: single unit with integrated low-voltage PSU
  • Table-Top version: external mount and stages with external AC PSU

All these features are perfectly suited for a large variety of materials often used in the fields of microelectronic circuits, display fabrication and correction, biomedical device machining, and optical substrates microprocessing.

Type

Wavelength (nm)

Output power (W)

Processing area (mm)

Processing speed (mm/s)

,

Working distance (mm)

Spatial-resolution (um)

, ,

Lens magnification
