PowerMir 4.0um

Quantum Cascade Laser (QCL), Pulsed, High power, 4.0um

Key Features:

  • Maximum power – >1W or < 500mW
  • Mode of operation – Quasi-CW, high duty cycled pulsed
  • Pulse frequency > 500 kHz
  • Central wavelength(3) 4 µm /- 0.1 µm
  • Divergence for the lasers with standard beam – 3 to 6 mrad (horizontal) – 2 to 4 mrad (vertical)
  • ITAR free technology
  • QCW operating mode for increased wall-plug efficiency and reduced thermal dissipation
  • Reproducible specs manufacturing for series productions
  • Circular beam (option) to reduce efforts made by clients to shape the beam



There are many configurations and options available. If you do not see exactly what you need below, please contact us!

Need Quantities?  Use Get Quote to get volume pricing!

POPULAR CONFIGURATIONS:


Part Number
Part Description
Datasheet
Price
Lead Time

mirSense Turnkey system PW4000090HCTK1A

QCL, 4.0um, 100mW QCW, Turnkey System, Circular Beam



6-10 weeks

Get Quote
mirSense Turnkey system PW4000090HSTK1A

QCL, 4.0um, 100mW QCW, Turnkey System, Standard Beam



6-10 weeks

Get Quote
mirSense POEM driver+HHL laser PW4000090HCPCB

QCL, 4.0um, 100mW QCW, POEM System, HHL w/PCB, Circular Beam



6-10 weeks

Get Quote
mirSense POEM driver+HHL laser PW4000090HSPCB

QCL, 4.0um, 100mW QCW, POEM System, HHL w/PCB, Standard Beam



6-10 weeks

Get Quote
mirSense HHL PW4000090HCNA

QCL, 4.0um, 100mW QCW, HHL Package, Circular Beam



6-10 weeks

Get Quote
mirSense HHL PW4000090HSNA

QCL, 4.0um, 100mW QCW, HHL Package, Standard Beam



6-10 weeks

Get Quote
PW4000100SCHIP

QCL, 4.0um, 100mW QCW, Chip on Submount



6-10 weeks

Get Quote
mirSense Turnkey system PW4000450HCTK1A

QCL, 4.0um, 450mW QCW, Turnkey System, Circular Beam



6-10 weeks

Get Quote
mirSense Turnkey system PW4000450HSTK1A

QCL, 4.0um, 450mW QCW, Turnkey System, Standard Beam



6-10 weeks

Get Quote
mirSense POEM driver+HHL laser PW4000450HCPCB

QCL, 4.0um, 450mW QCW, POEM System, HHL w/ PCB, Circular Beam



6-10 weeks

Get Quote
mirSense POEM driver+HHL laser PW4000450HSPCB

QCL, 4.0um, 450mW QCW, POEM System, HHL w/ PCB, Standard Beam



6-10 weeks

Get Quote
mirSense HHL PW4000450HCNA

QCL, 4.0um, 450mW QCW, HHL Package, Circular Beam



6-10 weeks

Get Quote
mirSense HHL PW4000450HSNA

QCL, 4.0um, 450mW QCW, HHL Package, Standard Beam



6-10 weeks

Get Quote
PW4000450SCHIP

QCL, 4.0um, 450mW QCW, Chip on Submount



6-10 weeks

Get Quote
mirSense Turnkey system PW4001000HCTK1A

QCL, 4.0um, 1000mW QCW, Turnkey System, Circular Beam



6-10 weeks

Get Quote
mirSense Turnkey system PW4001000HSTK1A

QCL, 4.0um, 1000mW QCW, Turnkey System, Standard Beam



6-10 weeks

Get Quote
mirSense POEM driver+HHL laser PW4001000HCPCB

QCL, 4.0um, 1000mW QCW, POEM System, HHL w/ PCB, Circular Beam



6-10 weeks

Get Quote
mirSense POEM driver+HHL laser PW4001000HSPCB

QCL, 4.0um, 1000mW QCW, POEM System, HHL w/ PCB, Standard Beam



6-10 weeks

Get Quote
mirSense HHL PW4001000HCNA

QCL, 4.0um, 1000mW QCW, HHL Package, Circular Beam



6-10 weeks

Get Quote
mirSense HHL PW4001000HSNA

QCL, 4.0um, 1000mW QCW, HHL Package, Standard Beam



6-10 weeks

Get Quote
PW4001000SCHIP

QCL, 4.0um, 1000mW QCW, Chip on Submount



6-10 weeks

Get Quote
mirSense Turnkey system PW4001000S-4001000STK2A

QCL, 4.0um, 2X1000mW QCW, 2000mW QCW, Turnkey System



6-10 weeks

Get Quote

PowerMir 4.0µm product line is a high power pulsed Quantum Cascade Laser based on proprietary technology providing a maximum average power of at least 1W at 4µm.  The ITAR free technology exhibits outstanding performance in terms of power and wall-plug efficiency. This high-performance QCL assembly takes full advantage of MirSense’s state of the art technologies. Due to a newly developed production technique, the 4.0µm PowerMir is now available with an optional circular beam with a 2.5mrad divergence, reducing time and cost associated with beam shaping. We offer three configurations for the 4µm PowerMir:

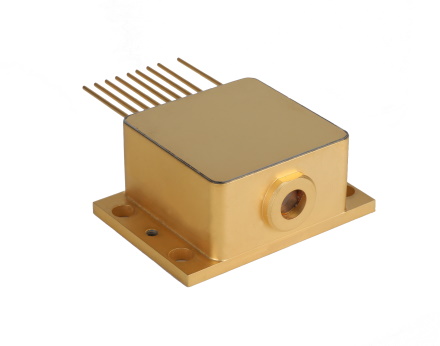

PowerMir 4µm HHL PackagemirSense HHL

For clients who wish to purchase only the laser without the driving electronics, all of our laser wavelengths are available in a packaged version alone. Our standard offer is in an HHL package including the thermal regulation and a collimating lens. We are used to developing and supplying custom packages as well.  For specific projects, mirSense can also supply QCL chips on submounts on demand.


PowerMir 4µm Features:

  • Standard high heat loads package (9-pins HHL) or custom package on request
  • Integrated Peltier TEC cooler
  • Integrated collimating lens (High beam quality, M²<1.5)

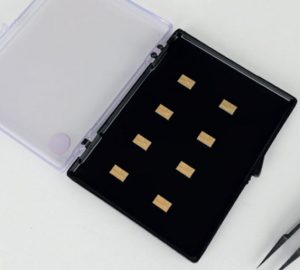

  • Possibility of chips on submount delivery
  • Optional circular beam with 2.5mrad divergence

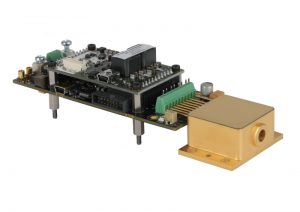

PowerMir 4µm HHL Package with Driver (POEM system)mirSense POEM driver+HHL laser

The PowerMir OEM system (POEM) is meant for customers who wish to integrate a QCL high-powered source inside their system (for example a DIRCM system). Each POEM is a compact light-weight and robust system made up of a packaged QCL laser plugged to a driving electronics board.



This board is embedded with unprecedented functionalities such as laser driver, complex programmable modulation schemes and of course full laser protection.  The onboard firmware protects the laser from burning through temperature management of the TEC element. The customer can communicate with the board through MODBUS commands and a TTL trigger allows the customer to modulate each board with confidentiality.  Several POEM systems can be combined to combine and increase the total optical output power.


PowerMir 4µm HHL Package with Driver Features:

  • Compact stand-alone OEM product for system integration
  • Powerful FPGA-based architecture
  • MODBUS communication for system integration and user-friendly PC software for configuration and tests
  • External TTL for synchronization
  • Cost effective for series-productions

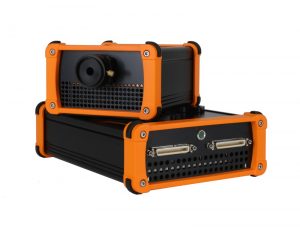

PowerMir Turnkey HHL Package with DrivermirSense Turnkey system

For lab experiments, we offer a plug-and-play easy to use turnkey system that includes laser heads, a driver and the cooling mechanism as well as a user-friendly PC software.  In order to accommodate you in your future projects, the mirSense turnkey platform is very modular. It’s able to control simultaneously 2 different laser heads (with different or identical wavelengths).


PowerMir Turnkey Features:

  • Plug-and-play system perfect to use inside a lab
  • Stand alone system including: laser head, driver, heat exchanger
  • User-friendly PC software allows users to:
    • Turn ON/OFF the laser
    • Easily change the operating mode (power, modulation)
  • External TTL for synchronization
  • Red laser beam to facilitate alignment
Type

Wavelength (nm)

Output power (W)

, ,

Mode

Output
