LDX-2106-622-FC: 622nm Fiber Coupled Laser Diode

Get Quote Ask Engineer

Specifications

Overview:

LDX-2106-622-FC: 622nm Multimode Fiber Coupled Laser Diode.

This 622nm red diode laser produces 105mW from a 105um fiber. Its low threshold current and high slope efficiency result in a low operating current which enhances reliability.

Key Features for LDX-2106-622-FC:

  • 622nm, 105mW output
  • High output power / Brightness
  • High efficiency
  • Many packages and fiber options available
  • Custom packaging available
  • Custom wavelengths available.

This reliable and robust laser diode is the preferred choice of customers in various optoelectronic applications in the medical industry.

See the link below for the optical and electrical characteristics including the fiber sizes offered.



Package Options for LDX-2106-622-FC:

Here are our standard packages, and their options, customized solutions are also available. These devices are custom-built to meet your specific needs

High Heat Load (HHL)

  • Hermetically sealed package
  • Fiber pigtail with SMA connector
  • Mounting to heatsink with screws
  • Internal peltier cooler (TEC)
  • Internal thermistor and photodiode
  • Header material – Copper




Fiber Coupled 9mm SMA

  • Industry standard package
  • Hermetically sealed package
  • SMA connector for detachable fiber
  • Header material – Copper
  • Options: Photodiode, Aiming beam, Isolated package




8 pin High Heat Load (HHL)

  • Hermetically sealed package
  • Fiber pigtail with SMA connector
  • Header material – Copper
  • Options: Photodiode, Aiming beam, Isolated package

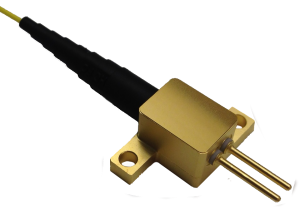

Fiber Coupled 2-pin

  • Hermetically sealed package
  • Fiber pigtail with SMA connector
  • Mounting to heatsink with screws
  • Header material – Copper








This Made-in-the-US Laser Diode is manufactured by LDX Optronics.

LDX Optronics:

LDX Optronics, since 1990, offers the widest range of multi-mode laser diodes. We cover the wavelength range from ~400nm thru ~1850nm, with several output powers available at most wavelengths.  We also have an extensive range of standard and custom package options available including free space and fiber coupled versions. LDX is the preferred choice for “made in the US”, reliable, and high quality, laser diodes.

If you do not see what you need, please contact us, many items are not on our website.
