RPMC Now Offers SLEDs – Superluminescent Laser Diodes!

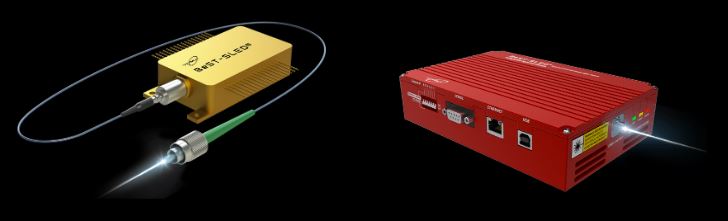

 LUXMUX, our newest exclusive partner, brings an exciting new product line to our already robust product portfolio! Through RPMC, LUXMUX now offers fiber-coupled, ultrawide spectrum, tunable BeST-SLED laser products, including their full line of both the BeST-SLED: Optical Spectral Engine (OSE), and the BeST SLED: Integrated Spectral Bench (ISB).

The LUXMUX Broadband source (BeST-SLED®) can be configured with up to 6 light sources, combined as a single spectrum product. The system provides individual control of light sources, through a digitally controlled interface. The ISB is designed to offer up to 19 spectral combinations, which creates a compact and powerful unit that can widen the performance of its intended application use. All wavelengths are in the IR range, and come in various combinations of SLEDs providing spectral coverage options such as 1435nm – 1605nm, 1340nm – 1610nm, and 1265nm – 1725nm, to name a few.

The BeST-SLED® product lines can be spectrally tailored to suit specific application needs. This provides exceptional flexibility and usability, making these sources ideal for:

• Optical component Testing
• Telecom Test Equipment
• Optical Coherence Tomography
• Optical Sensing
• White Light Interferometry
• Research and Development



Key Features of the BeST-SLED: Integrated Spectral Bench

• 2 – 6 Superluminescent Diodes (SLEDs) in a single package
• All SLEDs can be run from 0-100% of maximum rating
• Fiber-Coupled Output Powers ranging from 12mW – 40mW
• The best combination of power and spectrum width in multi-SLED modules
• Each SLED comes with a built-in independent monitor photodiode
• Optional: Integrated InGaAs Power Meter
• Internally Optimized for maximum coupling efficiency with PM 1300 or 1550-XP Fiber
• Integrated Optical Isolation (35dB)
• Light Output: FC/APC Connector (Optional FC/PC or SMA)



Key Features of the BeST-SLED: Optical Spectral Engine

• 2 – 6 Superluminescent Diodes (SLEDs) in a single package
• Fiber Coupled Output Powers ranging from 12mW – 40mW
• The best combination of power and spectrum width in multi-SLED modules
• Each SLED comes with a built-in independent monitor photodiode
• Internally Optimized for maximum coupling efficiency with PM1300 or 1550-XP Fiber
• Light Output: FC/APC Connector (Optional FC/PC or SMA)



About LUXMUX: LUXMUX is a Canadian-based photonic company that redefines spectral boundaries by providing proprietary ultrawide broadband solutions. Their team of engineers have continued to develop improvements, resulting in faster line width controls that are easier to modulate and the ability to expand multiple line width emissions simultaneously. Their new photonic light source combining methods will emerge within superluminescent diodes, fabry perot lasers, and narrow linewidth lasers.
