Single shot to 50KHz Lasers

On this page, we have a list of all of the Single Shot to 50KHz repetition (rep) rate lasers offered by RPMC. If you don’t see a laser with the parameters needed, most of our lasers can be modified for your needs.

For pulsed lasers, unlike continuous-wave (CW) lasers, the output cannot be specified by their output power alone. This is because the output power of a pulsed laser is determined by three different parameters; the laser’s pulse width, pulse energy, and pulse repetition rate.

If you need help selecting the best laser for your application, or defining the laser requirements for a specific application, please contact our product manager for assistance.

Talk to a Product Manager

Filters Reset

Type

Pulsed DPSS Lasers (1)

Wavelength Selection

UV (200-389nm) (1)

Power Selection

1-9W (1)

Energy Selection

10-99uJ (1)

Pulse Width Selection

Nanosecond Lasers (1)

Rep Rate Selection

Hz (1)
kHz (1)

Series

Onda Series (1)

more more

Picture	Part Number	Type	Wavelength (nm)	Output power (W)	Pulse energy (uJ)	Pulse width	Rep rate	Q-switch type
	Onda 266nm	Pulsed DPSS Lasers	266	0.800	80.0	2ns - 6ns	Single shot to 1kHz, Single shot to 50kHz	Active

more more

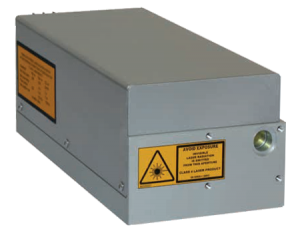

Onda Series

The Onda series is a DPSS nanosecond OEM laser platform designed for high-end applications requiring excellent beam quality and high peak power in materials such as metals, glass, plastics, and various delicate and hard materials. This compact and easy to use laser series is available in wavelengths of 266, 355, 532, and 1064nm, with an extended operating temperature range and superior performance to cost ratio. The Onda series’ internal optical layout and accurate temperature management enable high output energies without compromising the lifetime of the THG and FHG stages.
