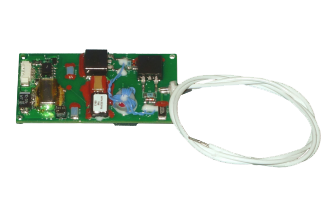

823B

Pockels Cell Driver, 3.2 kV V,300ns to 25µs, Up to 30 Hz

Key Features:

  • Adjustable push-pull output to 3.2kV
  • 30nsec typical risetimes
  • Rugged solid-state design
  • Self-contained high voltage power supply
  • Compact surface mount construction



There are many configurations and options available. If you do not see exactly what you need below, please contact us!

Need Quantities?  Use Get Quote to get volume pricing!

Configurations:

Part Number
Part Description
Datasheet
Price
Lead Time

823B

Pockels Cell Driver, 3.2 kV V,300ns to 25µs, Up to 30 Hz



2-4 weeks

Get Quote

The Model 823B Pockels Cell/Shutter Driver is designed for continuous pulsed applications.

The Model 823B Pockels Cell/Shutter Driver is designed for high repetition rate, continuous pulsed applications. Solid-state MOSFET technology is used, giving excellent trigger noise immunity and a smooth output waveform. This technique eliminates common problems associated with avalanche and transformer drivers. Amplitude is continuously variable by adjusting the internal high voltage power supply. The 823B is capable of operating at high pulse repetition frequencies, fast rise times and fall times, and output pulses up to 5.0kV.

Type

Voltage

Duty

,

Pulse width

Version
