LXX-VIS-SLM
Laser Module, Stabilized, Visible, 532-633nm, up to 300mW
Key Features:
- Single Longitudinal Mode with a TEM00 Beam
- Low-profile laser head (32 mm)
- Tailored beam diameter option (0.6 to 1.4 mm)
- Wavelength stability ≤ 1pm
- Lowest power consumption on the market
- Up to 500 mW Continuous Wave
- USB and RS232 interfaces
- Fast TTL and analog modulation
- Integrated control electronics and software
- SM/PM/MM fiber coupling options
There are many different package types, wavelengths, output powers, and options to choose from. Get help selecting the right configuration for you!
POPULAR CONFIGURATIONS:
Picture |
Part Number |
Part Description |
Datasheet |
|
---|---|---|---|---|

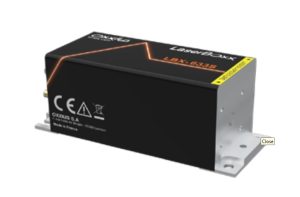

LBX-633S-40 |
Laser Diode Module, 633nm, 40mW, Fixed Power w/ Circular beam |
Get Quote | ||

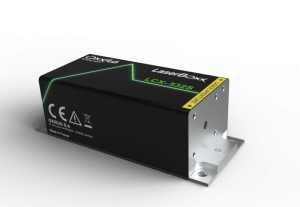

LCX-532S-50 |
SLM DPSS Laser Module, 532nm, 50mW, Fixed Power |
Get Quote | ||
LCX-532S-100 |
SLM DPSS Laser Module, 532nm, 100mW, Fixed Power |
Get Quote | ||
LCX-532S-150 |
SLM DPSS Laser Module, 532nm, 150mW, Fixed Power |
Get Quote | ||
LCX-532S-200 |
SLM DPSS Laser Module, 532nm, 200mW, Fixed Power |
Get Quote | ||
LCX-532S-300 |
SLM DPSS Laser Module, 532nm, 300mW, Fixed Power |
Get Quote | ||
LPX-532S-500 |
High Power SLM DPSS Laser Module, 532nm, 500mW, Fixed Power |
Get Quote | ||

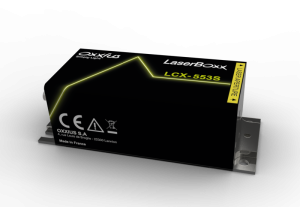

LCX-553S-50 |
SLM DPSS Laser Module, 553nm, 50mW, Fixed Power |
Get Quote | ||
LCX-553S-100 |
SLM DPSS Laser Module, 553nm, 100mW, Fixed Power |
Get Quote | ||
LPX-553S-200 |
High Power SLM DPSS Laser Module, 553nm, 200mW, Fixed Power |
Get Quote | ||
LCX-561S-50 |
SLM DPSS Laser Module, 561nm, 50mW, Fixed Power |
Get Quote | ||
LCX-561S-100 |
SLM DPSS Laser Module, 561nm, 100mW, Fixed Power |
Get Quote | ||
LCX-561S-150 |
SLM DPSS Laser Module, 561nm, 150mW, Fixed Power |
Get Quote | ||
LCX-561S-200 |
SLM DPSS Laser Module, 561nm, 200mW, Fixed Power |
Get Quote | ||
LPX-561S-300 |
High Power SLM DPSS Laser Module, 561nm, 300mW, Fixed Power |
Get Quote |
The LXX-VIS-SLM laser diode module is available in wavelengths from 532nm to 633nm, delivering ultra-narrow line widths with excellent temperature stability and low noise current. This customizable, compact laser module is available in turn-key or OEM versions, with modulation capabilities, and adjustable power options. The high spectral quality and narrow linewidths make the SLM Series a top choice for applications that demand precision laser technology like sensing, atomic and molecular physics, spectroscopy, and telecommunications. The dedicated control software and interfaces make operation simple and intuitive, while the embedded firmware ensures consistent results every time. The LXX-VIS-SLM with its customizable options, compact design, and high spectral quality, provides a reliable and easy-to-use solution for customers who demand the best.
If you do not see exactly what you need, please contact us!
Many configurations and optional attachments available:
- Motorized Power Attenuator (MPA)
- Accousto-Optic Modulator (AOM)
- Isolator (ISO)
- Electro-mechanical shutter
- SM/PM/MM fiber coupling options
- Wavelength tunability over 5 to 10 pm
- Custom wavelength selections
- Wavelengths combiner (L4Cc, L6Cc)
- AO modulator (see L1C datasheet)
- Specific beam diameter or beam shaping
Learn more about our complete range of Single Longitudinal Mode laser modules by clicking the picture below!
Benefits:
- Customizable and ultra-narrow linewidths:
- Customers can tailor the laser to meet their specific needs and achieve the most precise results possible.
- Compact modules in OEM and plug & play versions:
- Customers can get the exact module they need to fit their application, saving space, time, and money on unnecessary features.
- Dedicated control software, USB/RS232 interfaces, external controller:
- Dedicated control software and interfaces makes it easy for customers to control and monitor the laser module. The external controller with a power display provides easy-to-read information about the laser’s performance.
- Embedded firmware locks the same mode upon each start-up:
- This feature ensures consistent performance every time the laser is used, reducing the need for frequent recalibration.
- Highest spectral quality on the market, robustness over time:
- Customers can rely on these lasers to provide accurate, consistent results over the long term, reducing downtime and increasing productivity and reliability.
- Modulation capabilities, and adjustable power options:
- Modulation capabilities and adjustable power options give customers the flexibility to customize the laser’s output to their specific application, optimizing performance for better results.
If you have any questions or need more information, please contact us.
Wavelength (nm) | |
---|---|
Description | |
Type | LD Module, CW DPSS Lasers, Narrow Linewidth, Long Coherence Length, Single Longitudinal Mode (SLM), Collimated Beam, Fiber-Coupled, Customizable |
