LXX-VIS-HPE

Laser Module, Multimode, Visible, 405-750nm, up to 1.2W

Key Features:

  • Laser head with integrated driver
  • Elliptical collimated beam
  • Optional clean-up filter, speckle reducer, or electro-mechanical shutter
  • Analog modulation function
  • USB, RS232, and analog interfaces
  • Multimode fiber coupling options with a coupling efficiency > 80%
  • Core diameter options of 50um, 100um, or 200µm – NA 0.22
  • Round, square, or hexagonal-shaped fiber core delivery
  • Industry-standard compact package

There are many different package types, wavelengths, output powers, and options to choose from. Get help selecting the right configuration for you!



POPULAR CONFIGURATIONS:

Part Number
Part Description
Datasheet

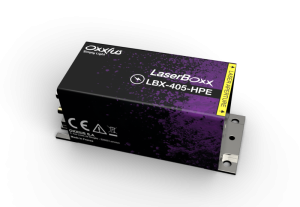

LBX-405-500-HPE LBX-405-900-HPE

High Power Laser Diode Module, 405nm, 900mW, Adjustable Power

Get Quote
LBX-405-500-HPE LBX-405-1200-HPE

High Power Laser Diode Module, 405nm, 1200mW, Adjustable Power

Get Quote
R2Z3-image-LBX-450-HPE LBX-450-650-HPE

High Power Laser Diode Module, 450nm, 650mW, Adjustable Power

Get Quote
R2Z3-image-LBX-450-HPE LBX-450-1200-HPE

High Power Laser Diode Module, 450nm, 1200mW, Adjustable Power

Get Quote
R2Z3-image-LBX-473-HPE LBX-473-1000-HPE

High Power Laser Diode Module, 473nm, 1000mW, Adjustable Power

Get Quote
LBX-488-1000-HPE: 488nm HP Laser Diode Module LBX-488-1000-HPE

High Power Laser Diode Module, 488nm, 1000mW, Adjustable Power

Get Quote

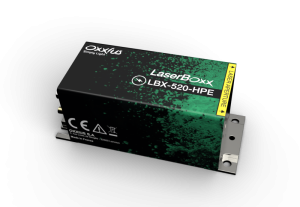

R2Z3-image-LBX-520-HPE LBX-520-800-HPE

High Power Laser Diode Module, 520nm, 800mW, Adjustable Power

Get Quote
LBX-638-400-HPE LBX-638-1100-HPE

High Power Laser Diode Module, 638nm, 1100mW, Adjustable Power

Get Quote

The LXX-VIS-HPE is a highly versatile and customizable laser diode module that offers superior performance and reliability in a compact, driver-integrated laser head. Its robust and customizable design makes it the perfect solution for a wide range of applications, including materials processing, scientific research, and medical treatments. This high-power laser diode module provides excellent performance and reliability, while the removable multimode fiber coupling option allows easy integration into any system. The dedicated control software and interfaces enable users to precisely control the laser output, making it an ideal choice for applications that require both power and precision. The LXX-VIS-HPE is designed to help customers achieve their goals, providing the power, flexibility, and control needed for their applications.

If you do not see exactly what you need, please contact us!

Many configurations and optional attachments available:

  • Speckle reducer option
  • Round, square, or hexagonal-shaped fiber core delivery
  • Electro-mechanical shutter
  • Beam-shaping optics

  • Custom wavelength selections
  • Wavelengths combiner (L4Cc, L6Cc)
  • OEM or Plug-and-Play versions
  • USB, RS232 and analog interfaces

Learn more about our complete range of high-power laser modules by clicking the picture below!

Benefits:

  • Highly customizable OEM or plug & play modules:
    • Highly customizable OEM or plug & play modules that are quick and easy to set up. This means customers can get the exact module they need to fit their application, saving time and money on unnecessary features.
  • High-Power, excellent performance, reliability, compact package:
    • High-power output in a compact package makes it ideal for applications where space is limited. Additionally, the laser diode module is highly reliable, ensuring consistent performance and reducing downtime.
  • Removable Multimode fiber coupling option:
    • Removable MM fiber coupling option allows customers to easily change the type of fiber coupling without having to replace the entire module. This saves time and money on replacements and repairs.
  • Dedicated control software, USB/RS232 interfaces, external controller:
    • Dedicated control software and interfaces makes it easy for customers to control and monitor the laser module. The external controller with a power display provides easy-to-read information about the laser’s performance.
  • Modulation capabilities, and adjustable power options:
    • Modulation capabilities and adjustable power options give customers the flexibility to customize the laser’s output to their specific application, optimizing performance for better results.
  • Many different standard wavelength options:
    • With a wide variety of standard wavelengths and optional attachments, this module can be tailored to fit a wide range of applications.

If you have any questions or need more information, please contact us.
