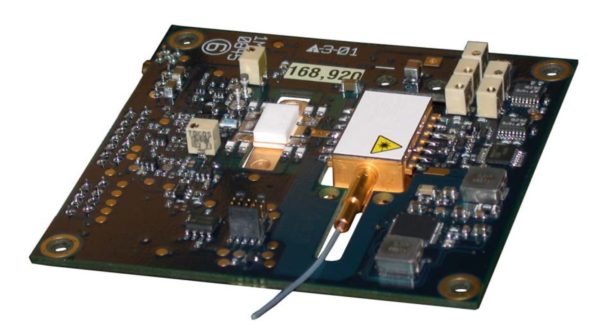

762: CW and Pulsed OEM Seed Laser Diode Driver Assembly

Get Quote Ask Engineer

Specifications

Overview:

AMI’s Model 762 OEM programmable seed laser diode drivers are ideal for driving 14-pin butterfly packaged laser diode modules for use in CW or pulsed fiber MOPA systems. Applications include materials processing, LIDAR systems for remote sensing, laser communication, and rangefinding.

Features include:

  • Output current up to 2.5 Amps
  • Output pulse width – 20nsec to CW
  • Compliance voltage to 2.5V
  • On-board pulse generator
  • Digital or Analog control
  • 5VDC input power
  • RoHS Compliant

Proprietary technology allows AMI’s 762 laser diode driver to offer a 1.2A, 3.0V driver with industry-leading efficiency and footprint. Multiple drivers can be stacked together to achieve higher output currents. The laser driver includes open circuit, short circuit, over temperature and under voltage lockout protection.

Datasheets:

762.pdf
