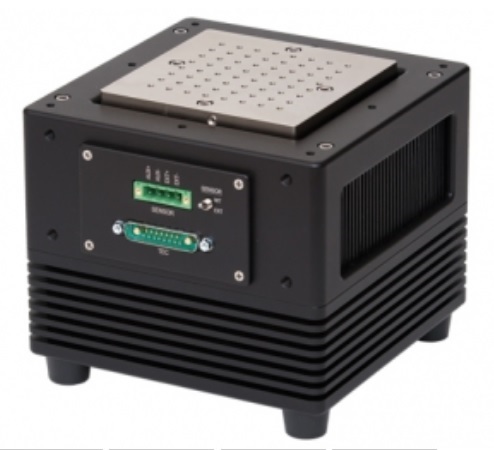

286-01: Laser Diode Mount

Get Quote Ask Engineer

Specifications

Overview:

The 286 TECMount provides a flexible heating and cooling platform designed to meet demanding temperature control requirements. The 286 has larger plates with a breadboard-style mounting system, making them easy to integrate into a broad range of applications.

The 286 cold plate is available in a bread board configuration with M3 holes, providing a flexible mounting platform.

When our standard breadboard plates just don’t fit, the cold plate on 286 mounts can be custom machined to fit the exact hole pattern of your application. We can put mounting holes just where you need them so your device mounts directly to the plate, without the need for adapters or modification.

The 286 mounts are available in an optional high temperature configuration, allowing for operation up to 150°C, but retaining the temperature range and thermal capacity of the standard mount. Because thermistors do not perform well at high temperatures, the sensor is replaced with a high accuracy Pt 100 RTD sensor. There is additional cost for the high temperature configuration, please contact the factory for a quote.

New with the 286 mounts is a series of mounting accessories to accomodate the integration of the 286 mounts onto your optical bread board or other mechanical system, and ships standard with the 286.
