High Power Laser Diode Mount

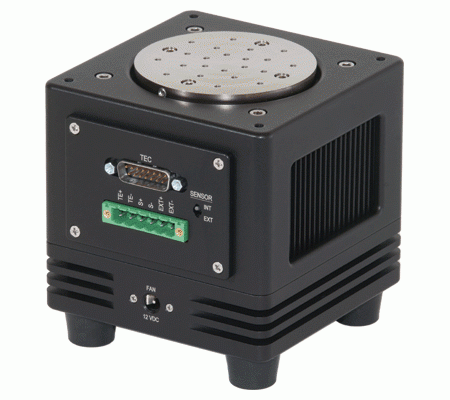

The 284-03 TECMount provides a flexible heating and cooling platform designed to meet demanding temperature control requirements. With a large 3″ diameter cold plates with a breadboard-style mounting system, the 284-03 is easy to integrate into a broad range of applications.
The 284-03 is available in an optional high temperature configuration, allowing for operation up to 150°C, but retaining the temperature range and thermal capacity of the standard mount. Because thermistors do not perform well at high temperatures, the sensor is replaced with a high accuracy Pt 100 RTD sensor. There is additional cost for the high temperature configuration, please contact the factory for a quote.
The 284-03 cold plate diode mount features a grid of M2.5 holes plus a mounting pattern for STAR LEDs.
When our standard breadboard plate just doesn`t fit, the cold plate on the 284-03 can be custom machined to fit the exact hole pattern of your application. We can put mounting holes just where you need them so your device mounts directly to the plate, without the need for adapters or modification.
Many laser and LED devices feature an internal temperature sensor. The 284-03 has an external sensor input, allowing for easy switching between the plate sensor and the sensor located in the laser or LED.
