Laser Diode Mount
Key Features:
- Active TEC cooling
- 12W thermal capacity
- Broad range of device support
- customized mounting plates available
- Easy wiring to laser or LED
There are many configurations and options available. If you do not see exactly what you need below, please contact us!
Need Quantities? Have a question?
Configurations:
Part Number |
Part Description |
Datasheet |
Price |
Lead Time |
Quantity |
|---|---|---|---|---|---|
| 207 |
Laser Diode Mount |
|
$625.00 |
Inquire |
Available on backorder |

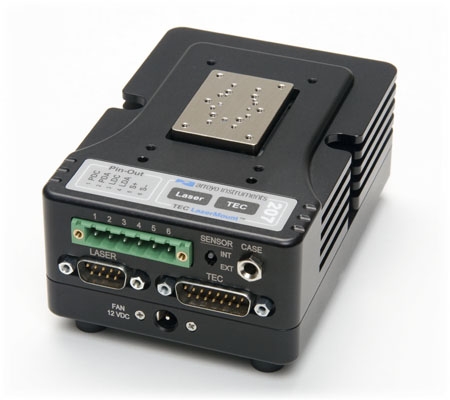

The 207 Laser Mount offers excellent cooling performance for lasers in the 5-10W optical power range. Meant primarily for fiber pigtailed lasers, it can also be used for LED testing (it includes a mounting pattern for STAR LEDs).
The 207 features a 6-pin connector for the laser, photodiode, and thermistor connections of the laser. Wiring is done with simple screw terminals, and can be quickly reconfigured for different devices, or additional plug can be ordered to make up multiple wiring harnesses.
Beyond the 207 Laser Mount itself, the 207 works with our optional fiber tray and device cover:
The laser driver and temperature controller connections are made through a DB-9 LDD and DB-15 TEC connector on the side of the mount, which allows for quick connections to any Arroyo Instruments controllers.
For applications requiring more thermal capacity than the 207 can offer, take a look at the 264, which offers up to 30W of capacity.
| Notes | |
|---|---|
| TEC |
