CW High Power Multimode Laser Modules

RPMC Lasers offers a wide selection of Continuous Wave (CW) high power multimode Laser Modules.  These CW Laser Diode Modules are available in the UV, Visible, and Near Infrared (IR) Wavelengths (375 nm through 1064 nm).  The optional ACX-FCMM offers a cost effective and compact multimode fiber output with a >80% coupling efficiency. See our new Lasers 101 page for in depth information on Solid State Lasers.

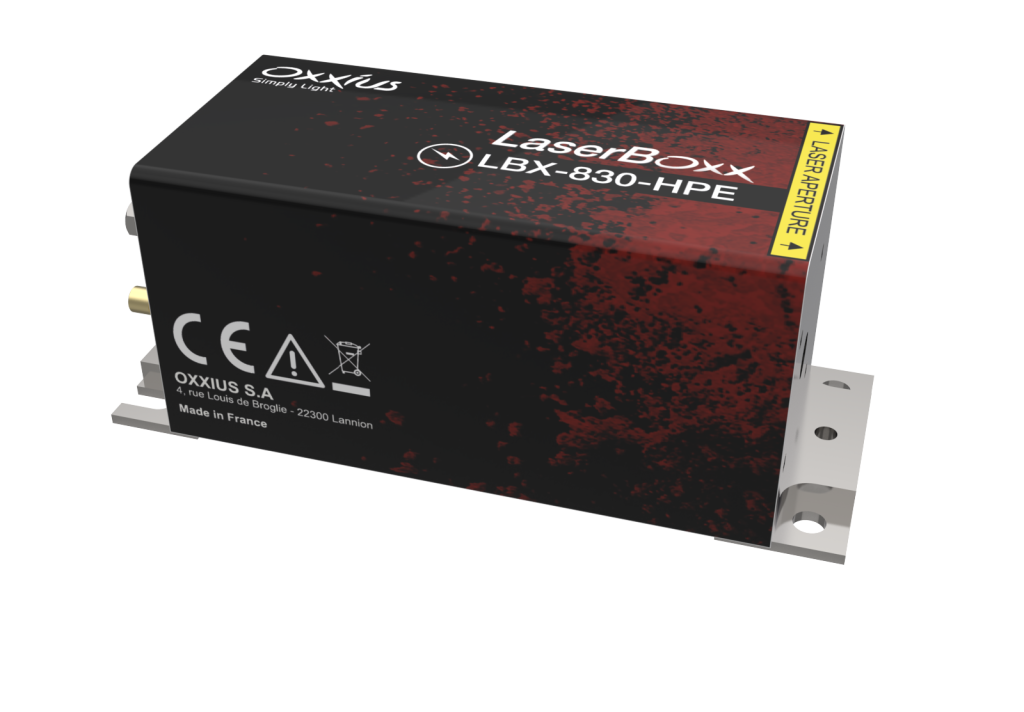

LaserBoxx HPE series:

The LaserBoxx HPE series is a high power laser diode module offering excellent performance and reliability in a compact driver integrated laser head. It comes in free space multimode elliptical beam or with removable MM fiber coupling.

    • Laser head with integrated driversFiber Coupling Option 2015 SM&PM 281114 002 3840x2160 Det
    • High Output Power
    • MM Elliptical Collimated beam
    • Multimode fiber coupling options
    • External Analog modulation
    • USB and RS232 computer interface
    • Plug and Play version includes Remote ControlBoxx with power display (CDRH)
    • Industry standard package – 100 x 40 x 40mm





LBX-785-400-HPE

OEM Version

Features include:
 Compact Industry Standard Laser head w/ Integrated drivers
5V to 12V DC Power Supply to operate 10 °C to 50 °C (baseplate) Operating Temperature
 USB, RS-232, dedicated I/O interface
 Intended for system integration





Plug and Play Version

Features include:

 Compact Industry Standard Laser head w/ Integrated drivers CDRH compliant ControlBoxx
 100-240V Power Supply
 10 °C to 50 °C (baseplate) Operating Temperature
 USB, RS-232, dedicated I/O interface
 Intended for academic users and Lab use.
 Heatsink provided for LCX, Optional for LBX

Applications:

–  Microscopy
  Medical
  Illumination
  High-Throughput Inspection
 Polymer Curing

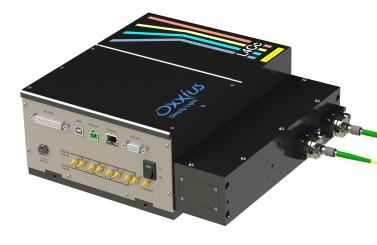

Compact Laser Combiner for Multiple Wavelengths:

The L6Cc, L4Cc, and L2C are compact laser combiner systems which integrate standard LaserBoxx modules, LCX DPSS and LBX laser diode. Their modular designs authorize a large choice of laser lines with free space beam output or delivery through single or multiple PM fibers. It is field upgradable for cost-effective future extensions. Available in P&P or OEM versions, the Oxxius laser combiners come with Graphic User Interface software and are compatible with μManager.

Benefits:

– Up to 7 combined wavelengths
– Proven long-term stabilityLaser Combiner
– Modular optical design
– Comprehensive optical design for easy maintenance
– Windows Graphic User Interface
– Optional multiple outputs

Key features:

– Up to 500 mW per wavelength
– Ultra Low Noise ≤ 0.2 %
– Direct modulation; analog, digital or both combined
– USB and RS232 computer interfaces
– SM/PM/MM fiber coupling options



See our new Lasers 101 page for more information about lasers.



RPMC Lasers strives to provide Ultrafast Lasers at an affordable price while also providing top-notch customer service. Therefore, we believe we are the best option for ALL your DPSS and Laser Diode needs!

Contact RPMC Lasers by Phone: 636-272-7227 or Email: [email protected]
