Fiber & DPSS Seed Lasers

Fiber & DPSS Seed Lasers Overview

Seed Lasers

Injection seeding fiber lasers is a widely used mode-selection technique that uses a seed laser to selectively reduce the laser’s gain threshold at that a specific wavelength.  This results in the laser’s output having the same spectral properties as the seed laser, therefore, improving its overall performance characteristics.    While this method can be used with both CW and pulsed fiber lasers, it is used mainly for producing narrow linewidth pulsed fiber lasers.  In this case, a single frequency fiber laser seed laser is coupled into the fiber laser optical cavity and pulsed via a gain switching electronic driver board which can be triggered and timed to coincide with the q-switched fiber laser’s pulse.  This causes the fiber laser to lock onto the seed lasers’ exact wavelength due to the reduction in the laser’s gain threshold at that specific wavelength.   On this page, you will find a list of all of the single-frequency fiber laser seed lasers we offer for injection seeding pulsed fiber lasers.

RPMC has years of experience supporting Fiber Laser Seed Lasers applications, helping industry professionals select the right tool for the job.

Contact Us today to let one of our knowledgeable Product Managers assist you!

Type

Wavelength Selection

Power Selection

Mode

Narrow Linewidth

Series

Manufacturer

9 results found
Picture Part Number Type Wavelength (nm) Output Power (W) Mode Output Narrow Linewidth Pulse Energy (uJ) Pulse Width Rep Rate
R1053.0SX0120: 1053nm SM Stabilized Laser Diode R1053.0SX0120 Volume Bragg Grating (VBG) 1053 0.120 Single Mode SM Fiber Yes
R1053.0SX0150: 1053nm SM Stabilized Laser Diode R1053.0SX0150 Volume Bragg Grating (VBG) 1053 0.150 Single Mode Free Space, SM Fiber Yes
R1053.0SX0300: 1053nm SM Stabilized Laser Diode R1053.0SX0300 Volume Bragg Grating (VBG) 1053 0.300 Single Mode SM Fiber Yes
R1053.0SX0500: 1053nm SM Stabilized Laser Diode R1053.0SX0500 Volume Bragg Grating (VBG) 1053 0.500 Single Mode SM Fiber Yes
R1064.0SX0050: 1064nm SM Stabilized Laser Diode R1064.0SX0050 Volume Bragg Grating (VBG) 1064 0.050 Single Mode SM Fiber Yes
R1064.0SX0120: 1064nm SM Stabilized Laser Diode R1064.0SX0120 Volume Bragg Grating (VBG) 1064 0.120 Single Mode SM Fiber Yes
R1064.0SX0300: 1064nm SM Stabilized Laser Diode R1064.0SX0300 Volume Bragg Grating (VBG) 1064 0.300 Single Mode SM Fiber Yes
R1064.0SX0500: 1064nm SM Stabilized Laser Diode R1064.0SX0500 Volume Bragg Grating (VBG) 1064 0.500 Single Mode SM Fiber Yes
R1064SX0150: 1064nm SM Stabilized Laser Diode R1064SX0150 Volume Bragg Grating (VBG) 1064 0.150 Single Mode Free Space, SM Fiber Yes

R Series

R1064SX0500

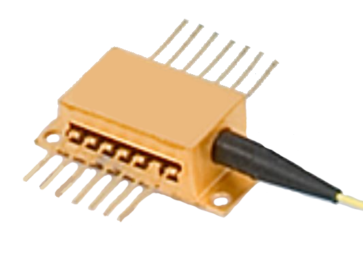

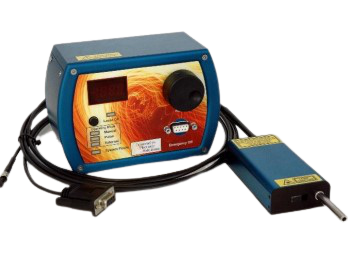

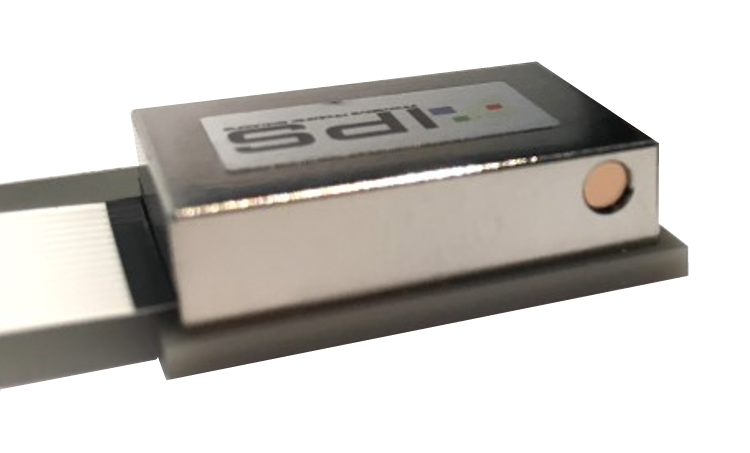

The R series of wavelength stabilized single mode and multimode laser diodes offer narrow wavelength spectrum in wavelengths from 633nm thru 1064nm. Package options range from components as basic as a TO-56 or 14-pin BF packaged diodes, to OEM modules including electronics, to UL/CE and IEC certified turn-key systems.
