HHL Package Laser Diode Mount
Key Features:
- HHL packages
- 0.5°C/W passive cooling efficiency
- Integrated fan
- Solder-less connections
There are many configurations and options available. If you do not see exactly what you need below, please contact us!
Need Quantities? Have a question?
Configurations:
Part Number |
Part Description |
Datasheet |
Price |
Lead Time |
Quantity |
|---|---|---|---|---|---|
| 244 |
HHL Package Laser Diode Mount |
|
$545.00 |
Inquire |
Available on backorder |

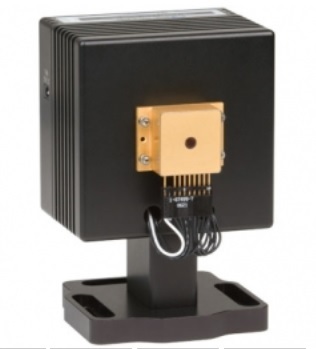

The 244 HHL LaserMount was designed for high power HHL devices, providing excellent heat sinking and easy electrical connection. The electrical socket comes pre-wired for standard HHL pin-outs, so the mount can be up and running in minutes.
The 224 also has an integrated fan for excellent thermal performance. When using the fixture with a 5300 Series TECSource, the 5300 has a built-in power supply for the fan, or a 2.3mm DC power jack on the side of the mount can be used (a suitable one is available in the accessories list).
The 244 HHL LaserMount is a post-mounted fixture. A pedestal is included with the mount, but can be removed. ¼-20 and M4 threaded holes on the bottom of the mount can be used with alternate post mounts.
The laser driver and temperature controller connections are made through a DB-9 LDD and a DB-15 TEC connector on the back of the mount, which allows for quick connections to any Arroyo Instruments controllers.
| Notes | |
|---|---|
| TEC |
